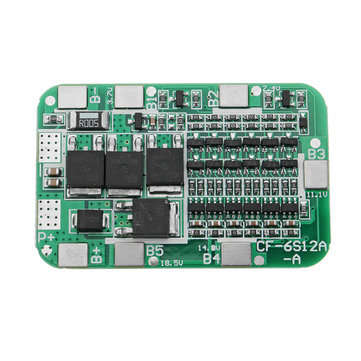

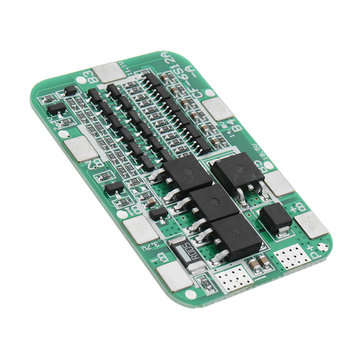

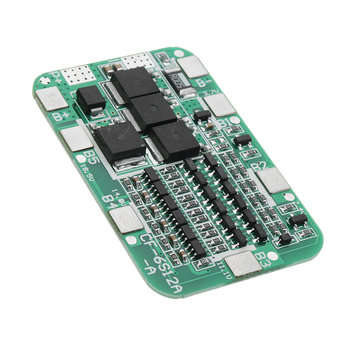

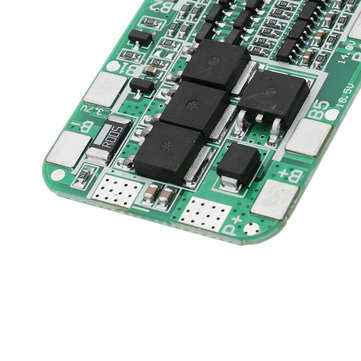

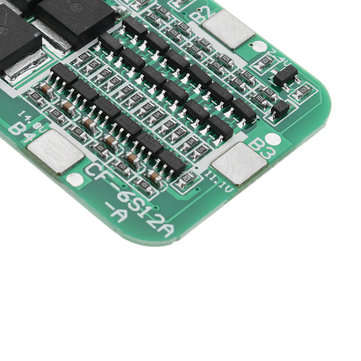

10pcs DC 24V 15A 6S PCB BMS Protection Board For Solar 18650 Li-ion Lithium Battery Module With Cell

Description: ? 1. Fine workmanship and durable; 2. For the rechargeable (generally refers to the lithium battery) from the protection of the integrated circuit board. Lithium battery (rechargeable type) so need protection.? 3. As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse. ? Parameter: ? Size: 50*30*2mm Lampshift maximum discharge current: 15A Instantaneous discharge current: 25A Charging voltage: 25.5V Charging current: 15A (MAX) Overcharge detection voltage: 4.28 ± 0.05V Overcharge protection delay: 0.1S Overcharge release voltage: 4.08 ± 0.05V Over discharge detection voltage: 2.55 ± 0.08V Overdischarge detection delay: 0.1S The overdischarge release voltage: 2.9 ± 0.1V Overcurrent detection voltage: 150mV Overcurrent detection delay: 9MS Overcurrent protection current: 30 ± 3A Overcurrent protection release condition: Disconnect the load Short circuit detection delay: 250uS Short circuit protection release condition: disconnect negative open Main circuit conduction resistance a??? 20m?? Working current a??? 30uA Sleep current (battery over discharge) a???10uA Temperature range: -30a?? / +8 ? Package Included: ? 10 x DC 24V PCB BMS protection board
