Closed

10Pcs DC 3.3V 3.7V 5V 6V to 12V Boost Voltage Regulator Module Converter Step-up Power Supply Board

12 were available / new
R684.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
620070615
Feature:

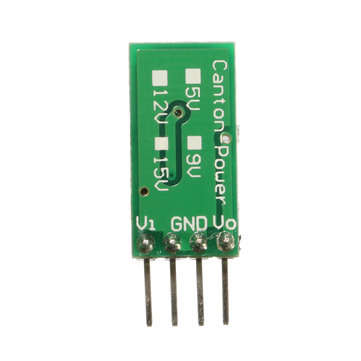

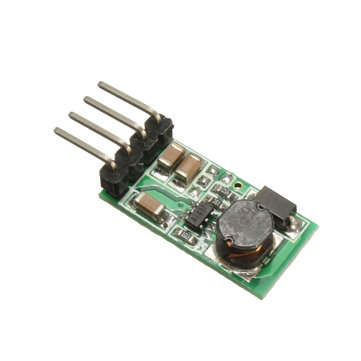

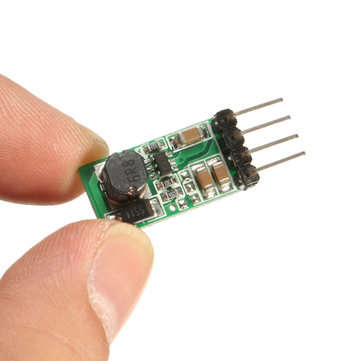

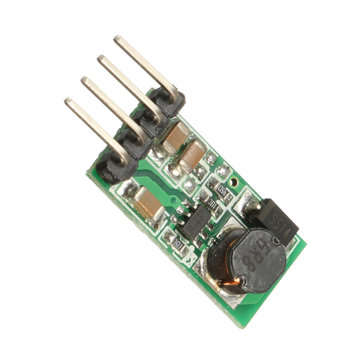

Board size: Approx. 20.5mm x 10.16mm x 5.6mm / 0.81 x 0.40 x 0.22
Input voltage: 3~6V, Output: 12V
Maximum input current: 1.2A
Long-term working current: 1A
Conversion efficiency: 80-90%
Start voltage: 2.8V, Output current: 50mA
Input: 3V 1A; Output: 12V 220mA
Input: 3.3V 1A; Output: 12V 250mA
Input: 3.7V 1A; Output: 12V 280mA
Input: 4.5V 1A; Output: 12V 340mA
Input: 5V 1A; Output: 12V 370mA
Input: 6V 1A; Output: 12V 450mA
DC-DC boost module working frequency: 1.0MHz
Operating ambient temperature: -40 to +85a??
2.54mm pin pitch, for Arduiuo UNO DUE breadboard FPGA/CPLD development board

Package includes:

10 x DC 3.3V 3.7V 5V 6V to 12V Boost Voltage Board
