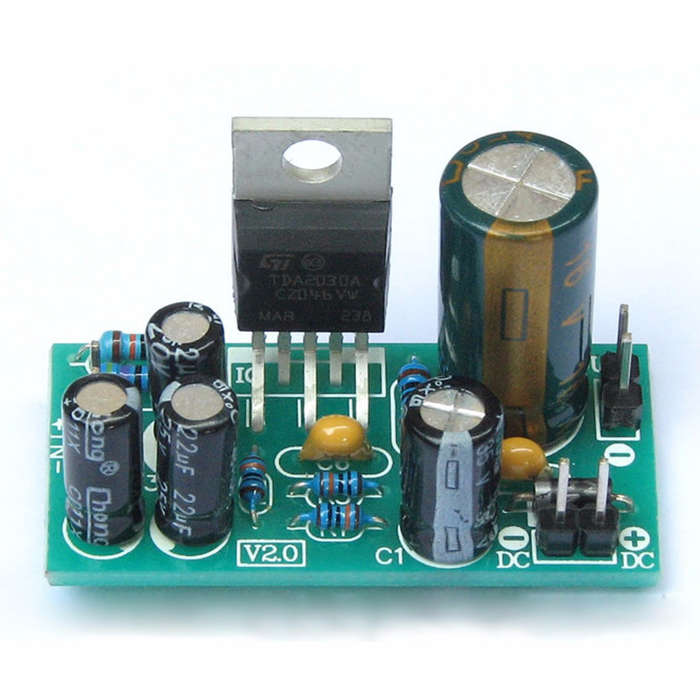

10pcs DIY TDA2030A Audio Amplifier Board Kit Mono Power 18W DC 9V-24V

New

20 available

R541.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3921

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651204693

Features:

TDA2030A is widely used as Hi-Fi amplifier manifold in many computer active speakers.
Easy Installation.
It has the function of thermal shutdown, current limiting.
Minimum transmission distortion

Specifications:

Output power: Maximum 18W
Supply voltage: DC 9V-24V (recommended DC 12V, this voltage to the heat sink requirements are very low;)
Maximum supply of this board is actually up to 40V, but you need to change the board's own electrolytic capacitor C1, the capacitor voltage value is higher than supply voltage can be use. )
Quiescent current: about 25mA (disconnect to tone, connect to 8 speaker, 12V power supply. )
Speaker impendance: 4-8
Total harmonic distortion: THD 0.08% (Po=0.1 to 14W, RL=4)
SNR: 94dB-106dB (1W-15W)
Heat: The higher the supply voltage, the great the volume, the higher the heat

Note: This is DIY kit, you need to solder it by yourself!

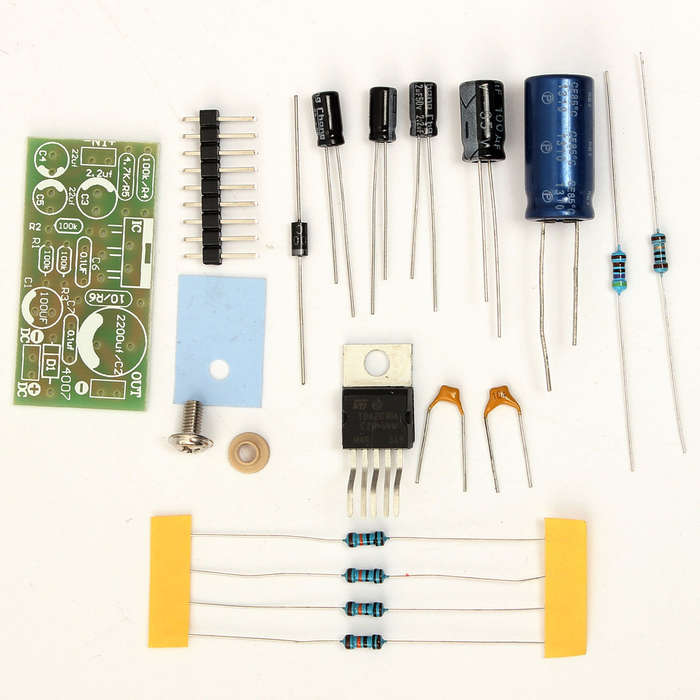

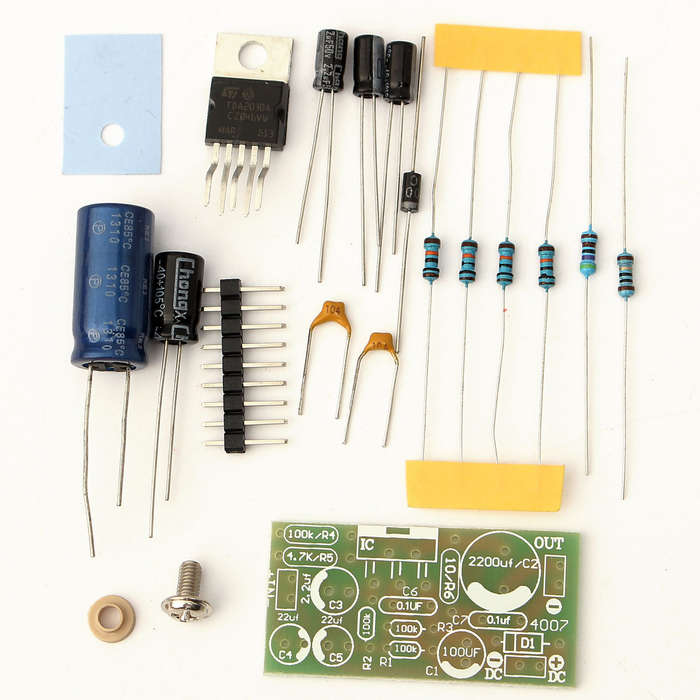

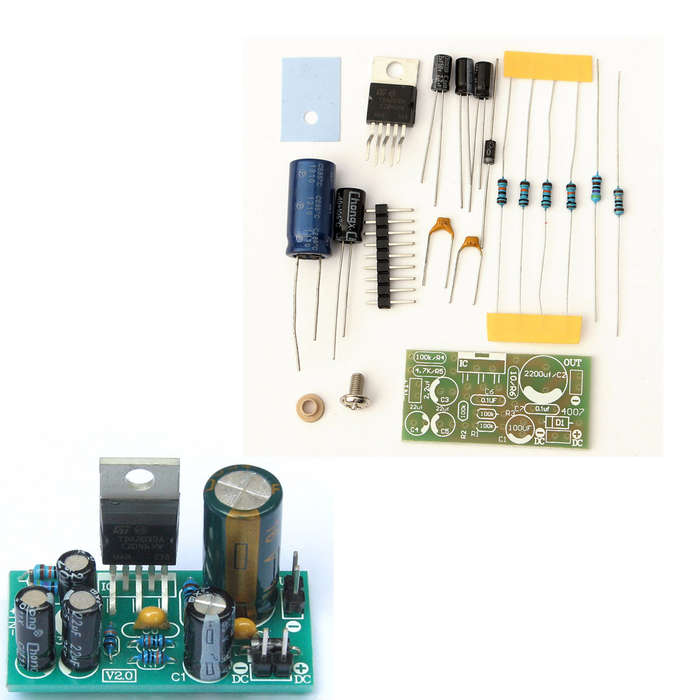

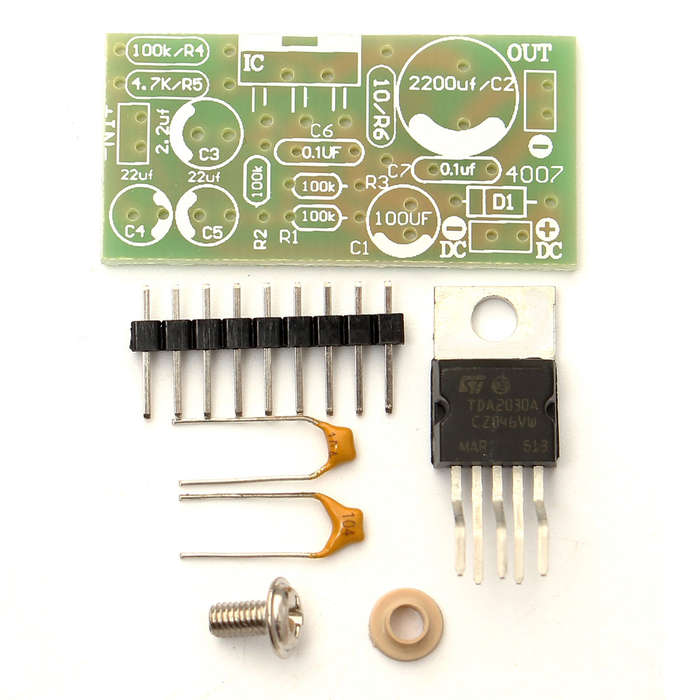

Package includes:

10 x DIY TDA2030A Audio Amplifier Board Kit
