10pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Boa

20 available / new

R693.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3528

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643355689

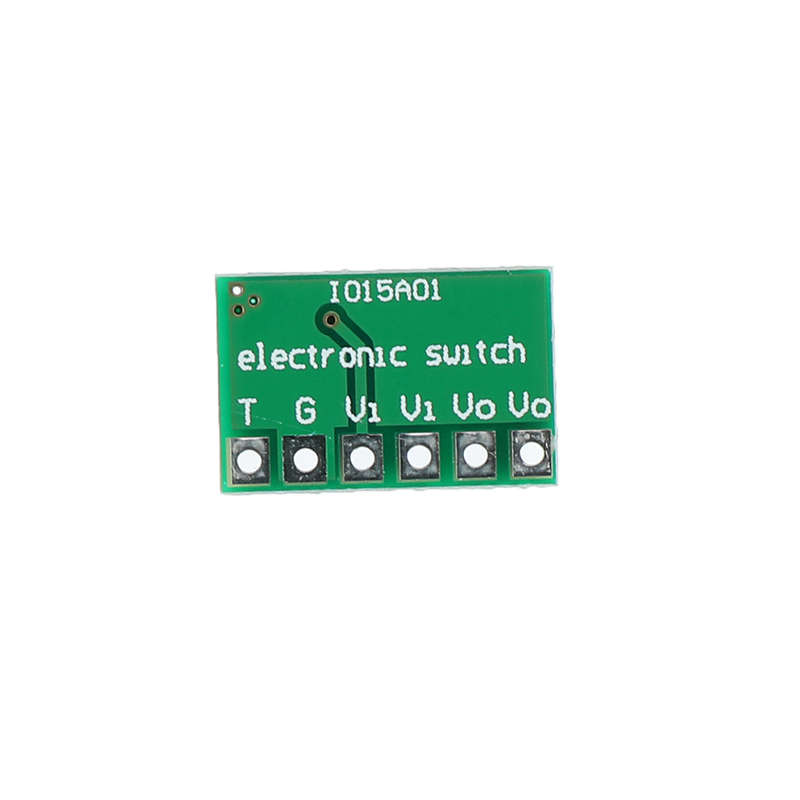

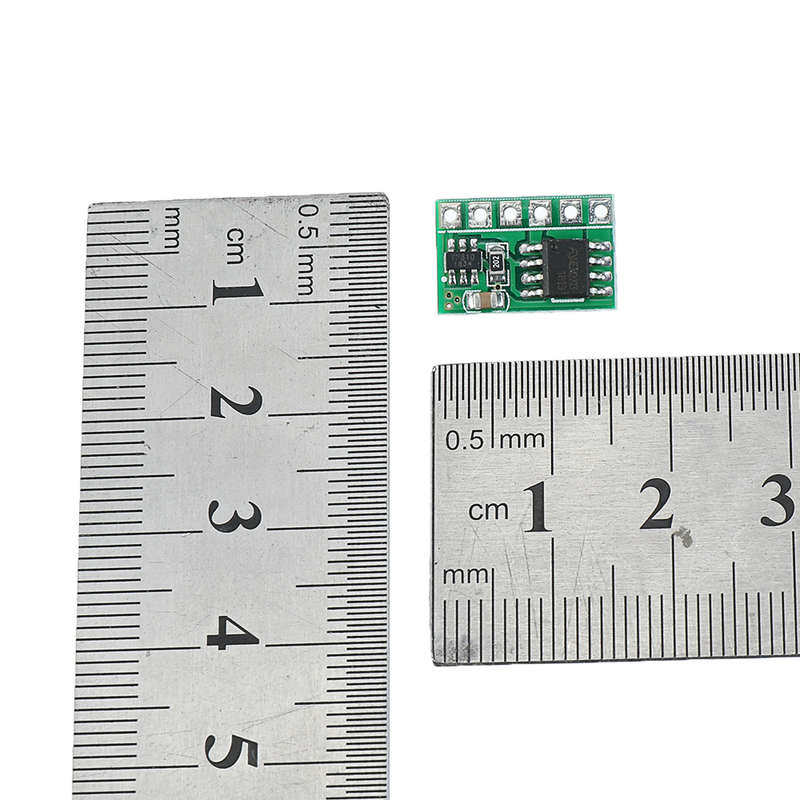

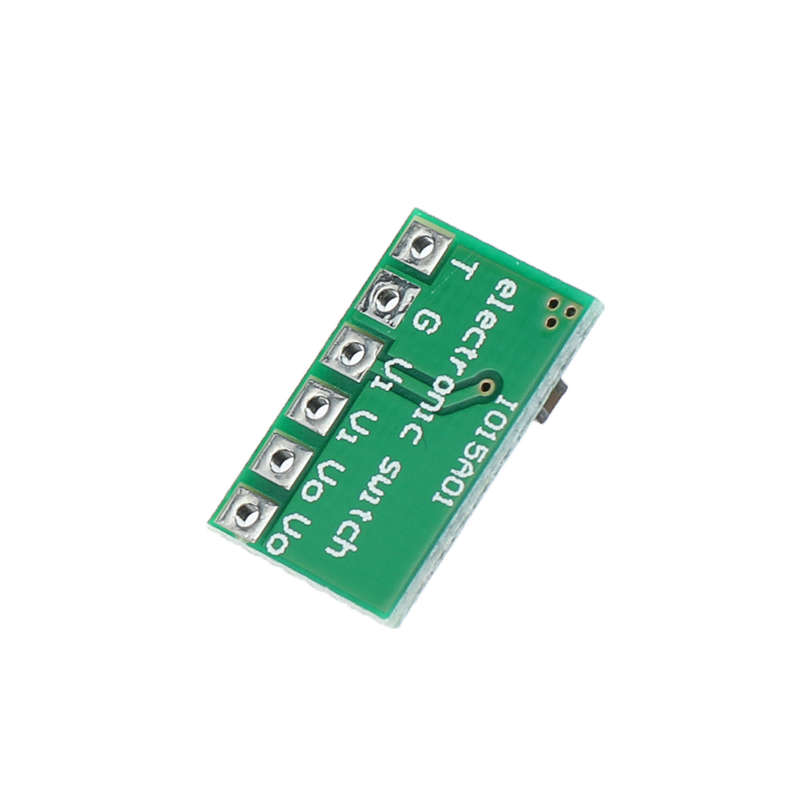

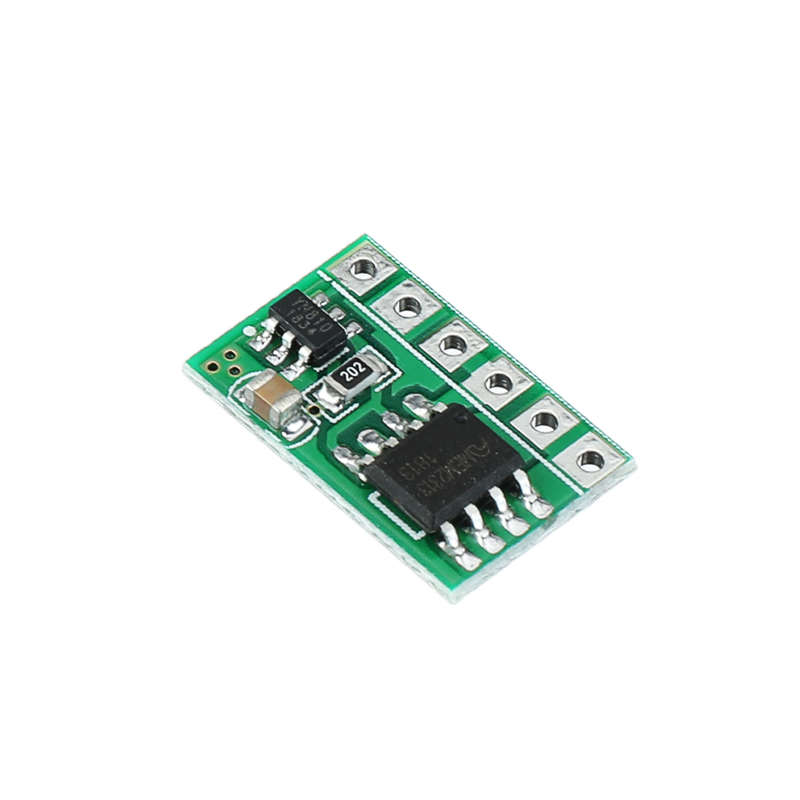

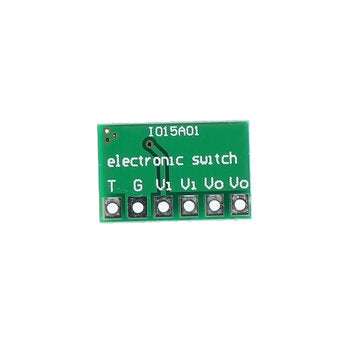

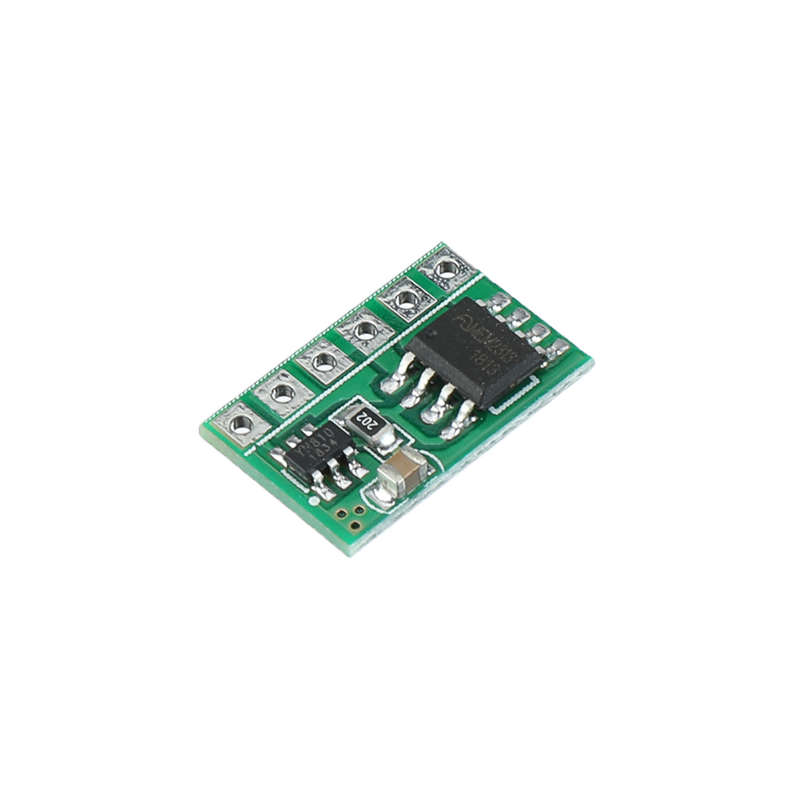

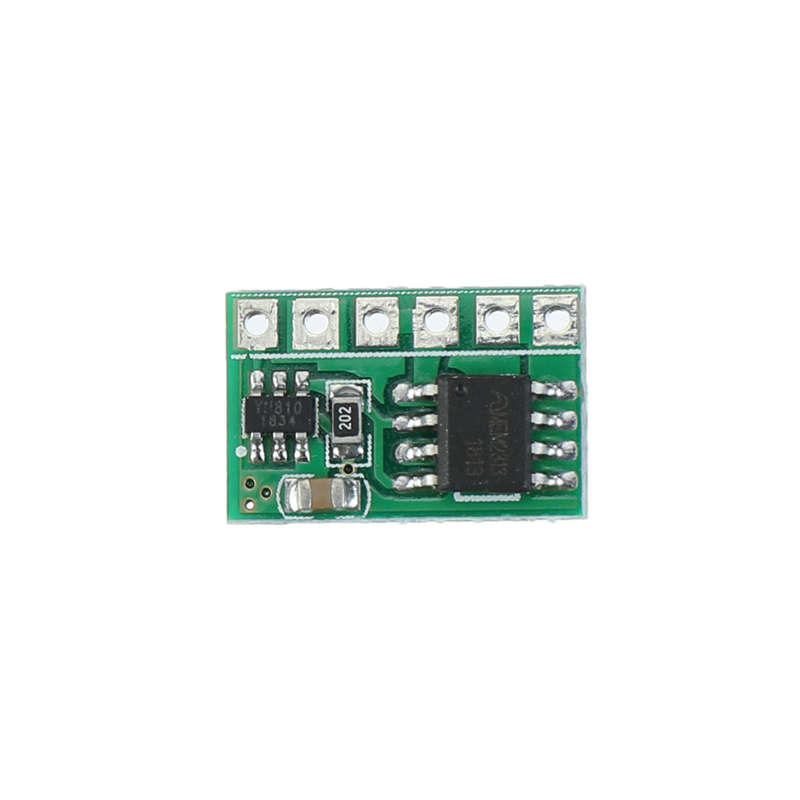

Description: Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on. Low standby power consumption, high output power. Specifications: Power supply voltage: DC 2.5V-6V Standby current: less than 10uA Driver IC is Dual P-channel MOSFET MEM2313,Maximum drive current is 6A Allowing continuous output current: 5A(5V-6V) 4A(3.7V-5V) 2A(2.5V-3.7V) Pin pitch: 2.54mm. Size: 15.5 x 10 x 2.5mm Note: Inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit. Pin Description: Vo:output; Vi:power supply; G:power ground. T:trigger signal input terminal; Applications: MCU Development Board Motor mobile power LED Lighting 5V Relay esp8266 WIFI MODULE 315M 433M Wireless remote controller
