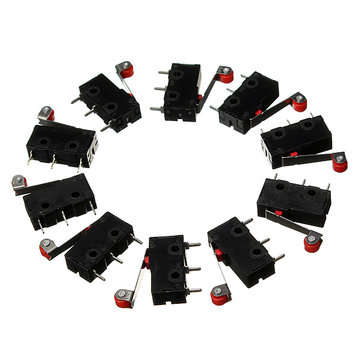

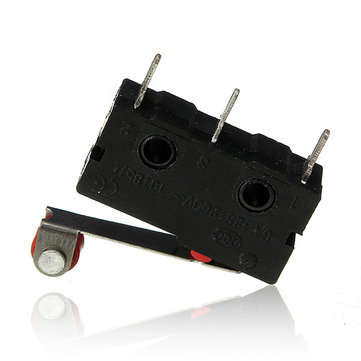

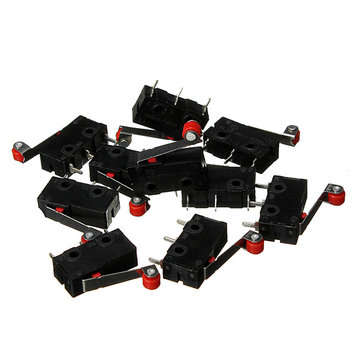

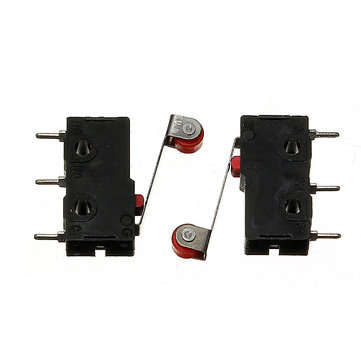

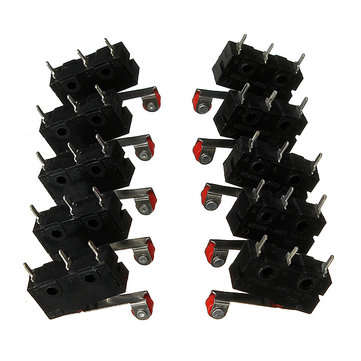

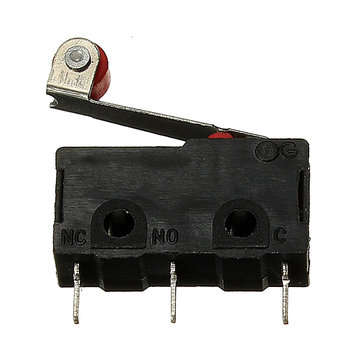

10Pcs Micro Limit Switch Roller Lever 5A 125V Open Close Switch

10Pcs KW12-3 Micro Limit Switch Roller Lever 5A 125V Open/Close Switch

Features:

Operating temperature: -40?ﾣC to 70?ﾣC
Rated voltage: AC 125V-250V
Per weight: 2g
Current rating: 5A
Size: 20 x 10 x 6mm (L X W X H)
PCB Terminals Circuit Board
With Roller Lever Limit

Working principle:

By external mechanical force transmission element(by pins, buttons, levers, rollers, etc.) will be used to force action on a reed, producing reed instantaneous action when action shifted to the critical point, so moving contact with the fixed contact spring at the end of the action point fast on or off.
When the force is removed on the drive components, action reed produce reverse action force transmission element reverse stroke when the action reaches a critical point reed, instantaneous reverse action.
Feature: contact spacing is small,short stroke action,according to the power of small,fast-break

Application:

Apply in? A computer mouse, car mouse, automobile electronic products, communications equipment, military products, test instrument, gas water heater, gas burner, small home appliance, microwave oven, electric rice cooker, floating ball supporting equipment, medical equipment, building automation, electric tools, ect.

Package included:

10 x Micro roller switch
