10pcs N/O N/C SPDT Magnetic Switch Reed Switches 2.5x14mm Switch

20 available / new

R463.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3483

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641099829

Description:

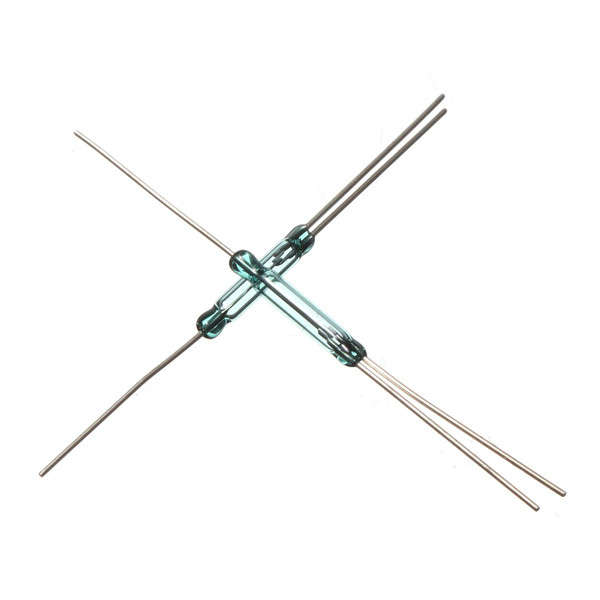

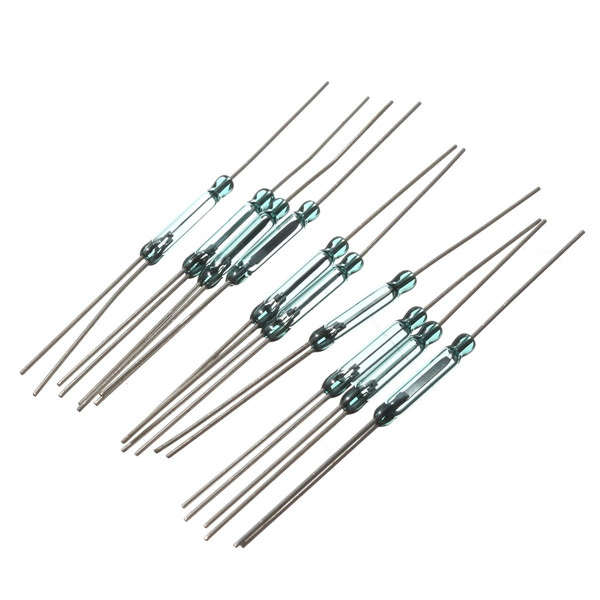

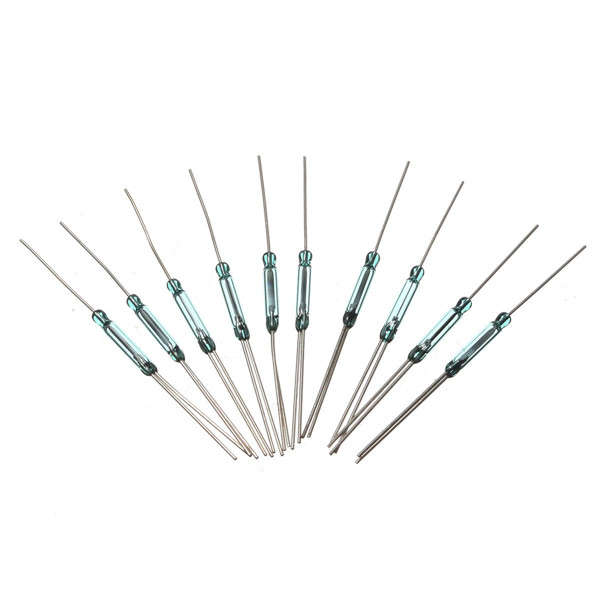

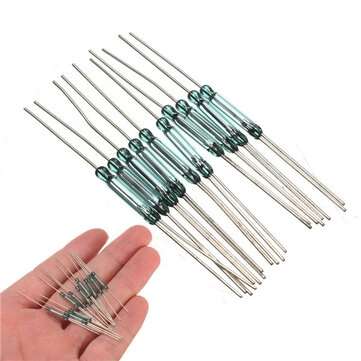

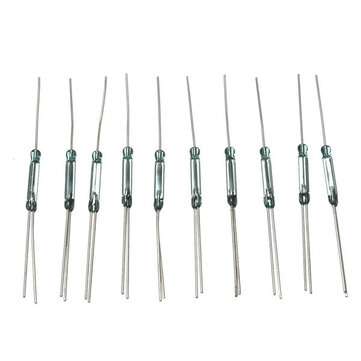

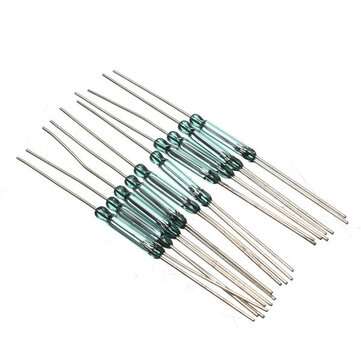

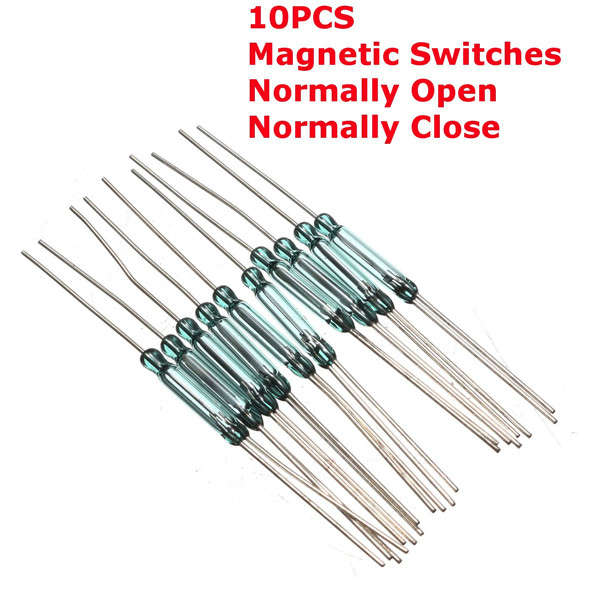

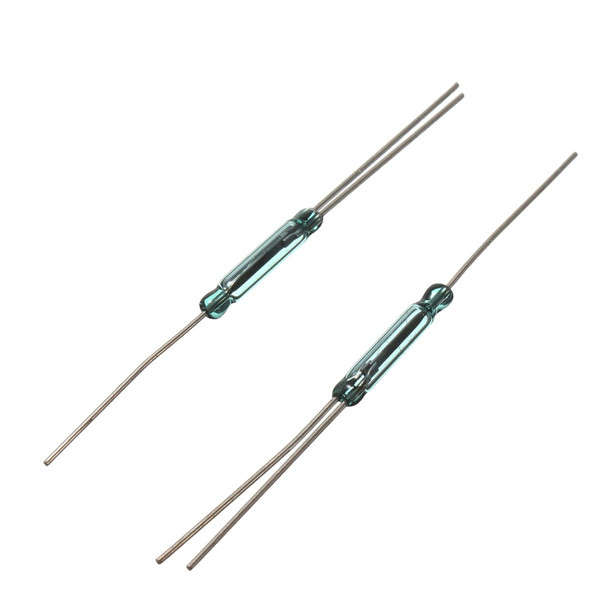

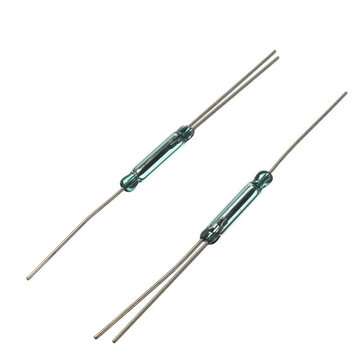

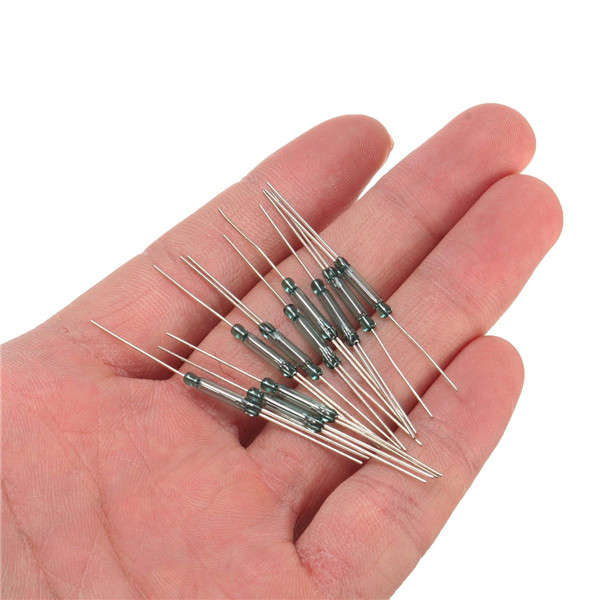

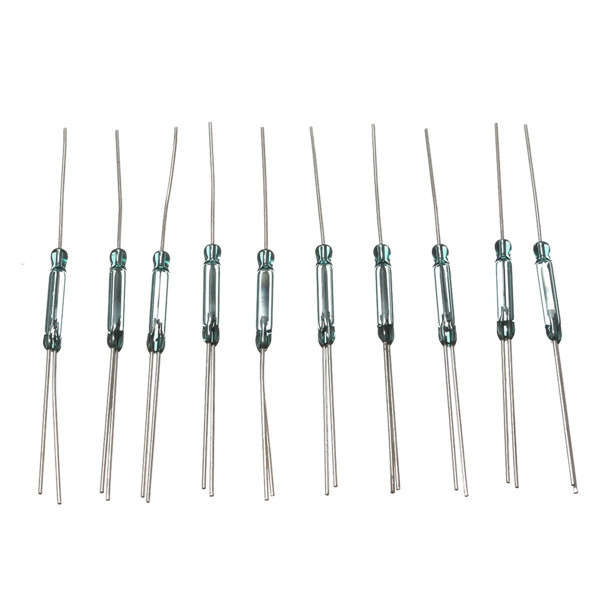

10pcs N/O N/C SPDT Magnetic Switch Reed Switches 2.5x14mm Switch

Specification:

Switching power(max)	5W
DC switching voltage(max)	175V
AC switching voltage(max)	125V
DC switching current(max)	400mA
AC switching current(max)	280mA
Carry current DC, AC, effective value (max)	0.5A
Breakdown voltage (minimum)	200V
Contact resistance (initial maximum value)	140mW
Contact resistance (initial typical value)	120mW
Contact capacitance (max)	0.8pF
Release time (max)	1ms (power on)
Bounce time (max)	1.5ms (power on)
Working time (max)	1ms (power on)
Working range	10-30AT

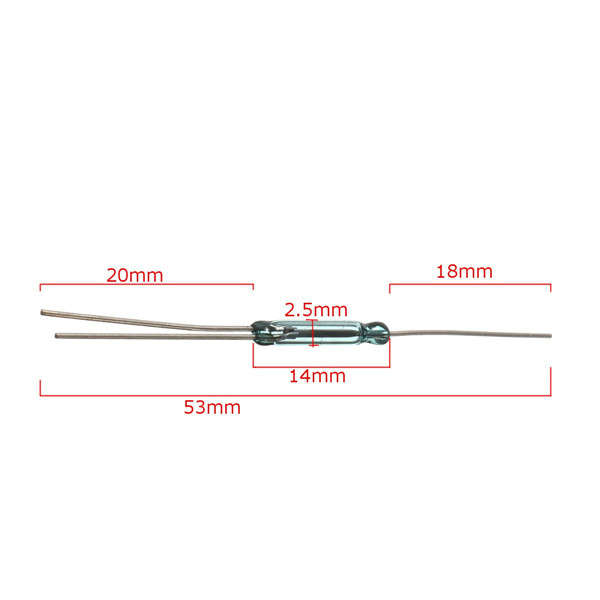

Total length	53mm
Glass size	14x2.5mm
