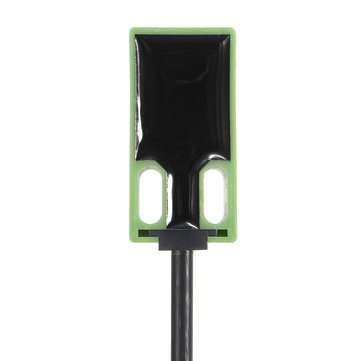

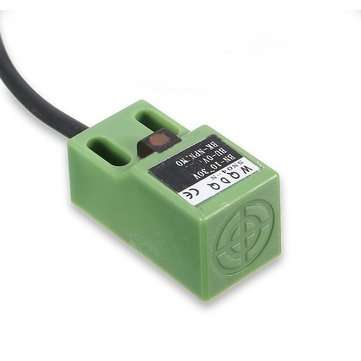

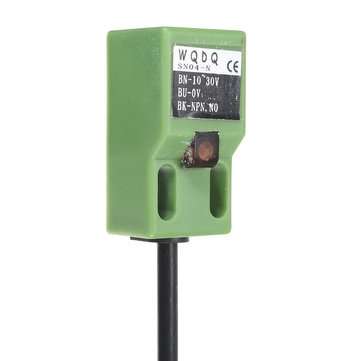

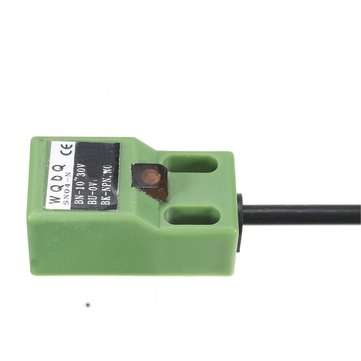

10pcs SN04-N 5mm Inductive Proximity Sensor Test Switch Approach NPN NO DC10-30V

Specification:

1. Output : Switching Transducer
2. Sensing Distance : 5mm±10%
3. Working Voltage : DC 10-30V
4. Response Frequency : 500Hz max
5. Indicator : Red LED
6. Size: 18 x18 x 36mm/0.7 x 0.7 x 1.4(W*H*L)
7. Cable Length : 120cm
8. Hole Size : 0.95 x 0.4cm(L*W)
9. Extenal Material : ABS Resin

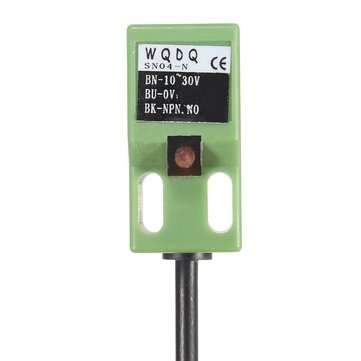

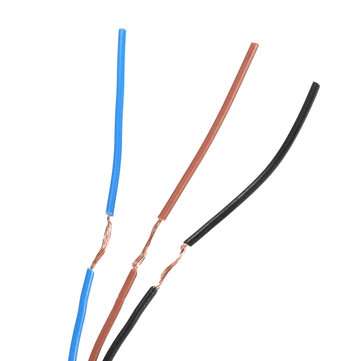

10. Cable: 3 wire brown + blue - black out
11. Protection class:IP 67
12. Over-current and short circuit protection
13. With LED indicate, easily identifiable.
14. With output NPN / NO
15. The Proximity Sensor Switch is used for testing parts such as size and speed can also be used in frequency counters, frequency pulse generator,
liquid level control and processing procedures for the automatic convergence.

Package included:

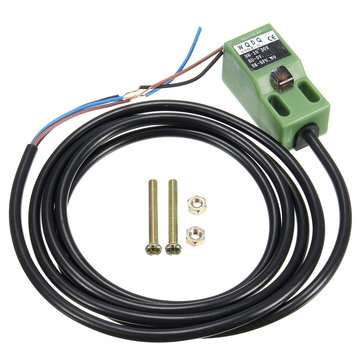

10 x Proximity sensor switch
20 x Screws
