10pcs TB371 4 Key MCU Keyboard Button Board Compatible UNO MEGA2560 Pro Mini Nano Due for Raspberry

20 available / new
R478.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641099991
.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}

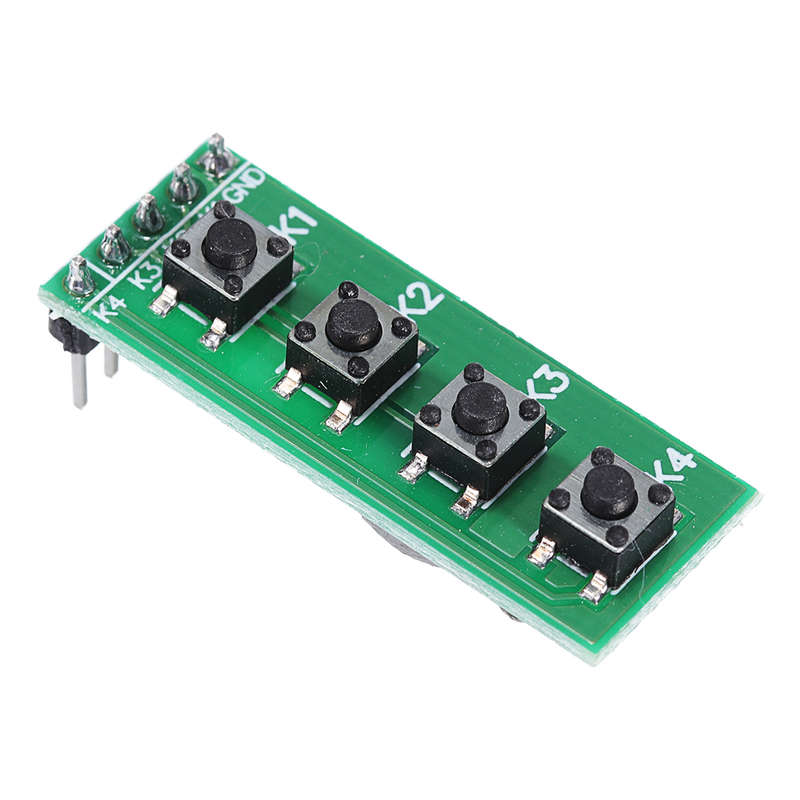

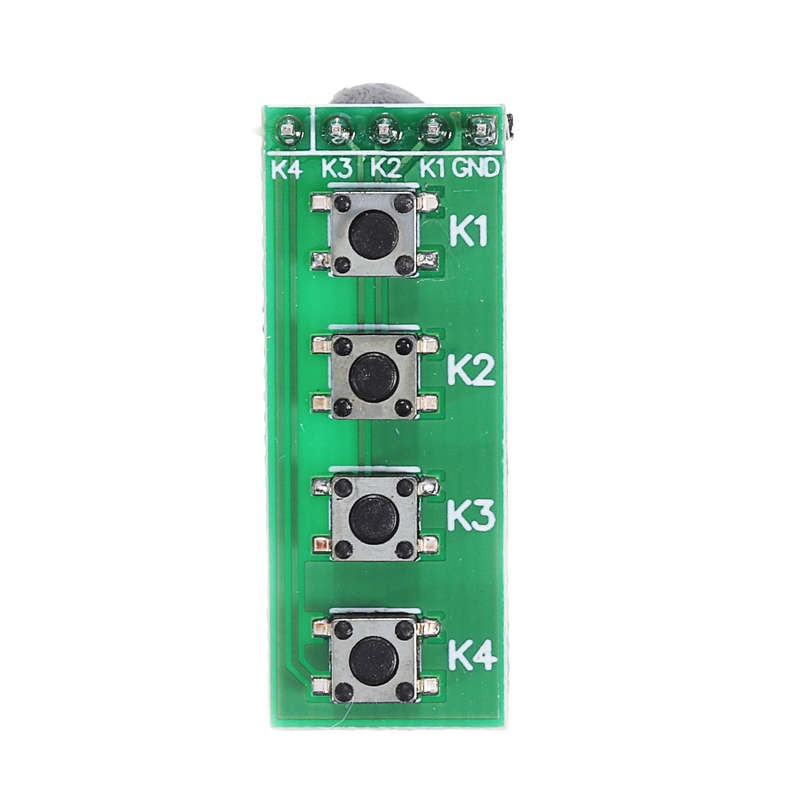

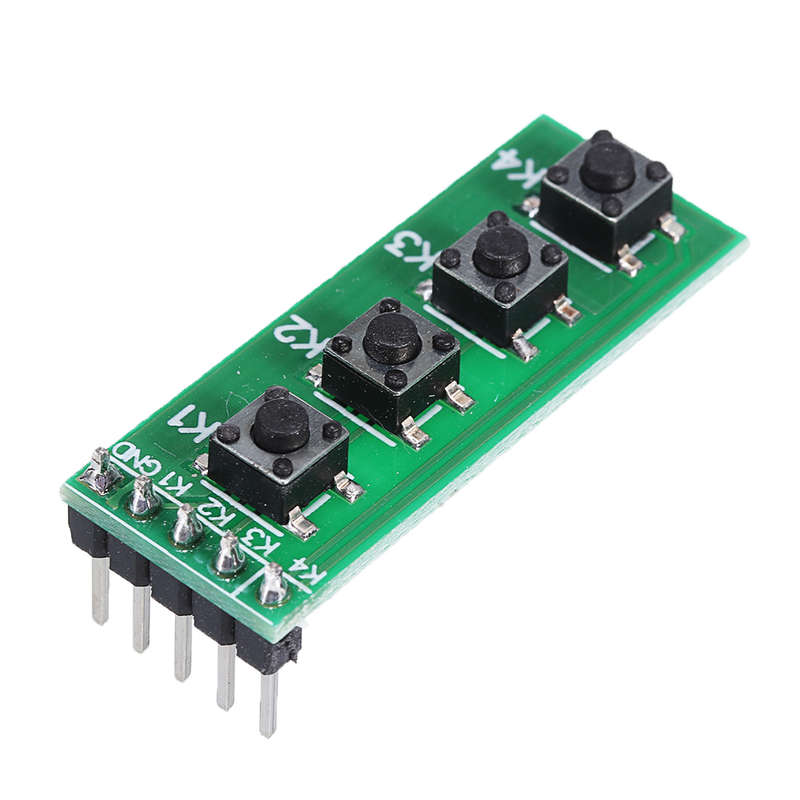

Description: 1. 4-button Common Cathode key module(When pressed output low level). 2. GND K1 K2 K3 K4 4 PIN OUT 2.54mm 3. Working voltage: DC 0-48V 4. Size: 12.7 x 33mm 5. It can be inserted directly into Arduiuouno3mega2560 due,for linking up to your Arduiuouno3Mini Nano Mega2560 Breadboard for raspberry pi banana pi etc,or others MCU PLD CPU ( AVR STM32 ARM PIC C51 NRF24LE1 CC2530 MSP430 STM8 FPGA CPLD etc.)

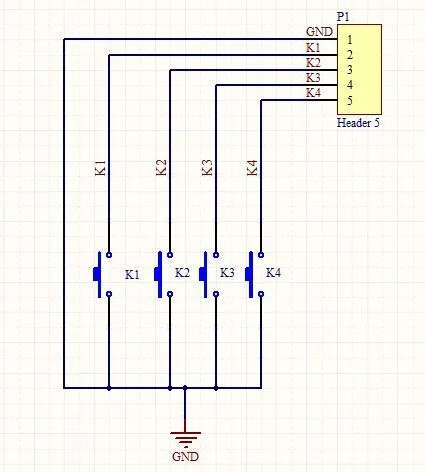

Circuit schematics:




Arduiuouno3/mega2560 Code //******************************************************// /* Arduiuo_4key_uart
This example code is in the public domain. */
// Define key pin int K1 = 13; int K2 = 12; int K3 = 11; int K4 = 10;
// variables will change: int buttonState = 0; // variable for reading the pushbutton
// the setup routine runs once when you press reset: void setup() { // initialize the keys pin as an input.
pinMode(K1, INPUT); pinMode(K2, INPUT); pinMode(K3, INPUT); pinMode(K4, INPUT);
//Activate key pin internal pull-up resistors digitalWrite(K1, HIGH); digitalWrite(K2, HIGH); digitalWrite(K3, HIGH); digitalWrite(K4, HIGH);
// initialize serial communications at 9600 bps: Serial.begin(9600); }
// the loop routine runs over and over again forever: void loop() {
buttonState = digitalRead(K1); if(!buttonState)Serial.print(k1 n ); do { buttonState = digitalRead(K1); } while(!buttonState);//Wait button release
buttonState = digitalRead(K2); if(!buttonState)Serial.print(k2 n ); do { buttonState = digitalRead(K2); } while(!buttonState);//Wait button release
buttonState = digitalRead(K3); if(!buttonState)Serial.print(k3 n ); do { buttonState = digitalRead(K3); } while(!buttonState);//Wait button release
buttonState = digitalRead(K4); if(!buttonState)Serial.print(k4 n ); do { buttonState = digitalRead(K4); } while(!buttonState);//Wait button release
delay(100); } //******************************************************//

Package Included:

10 x4 Key MCU Keyboard Matrix Button Board
