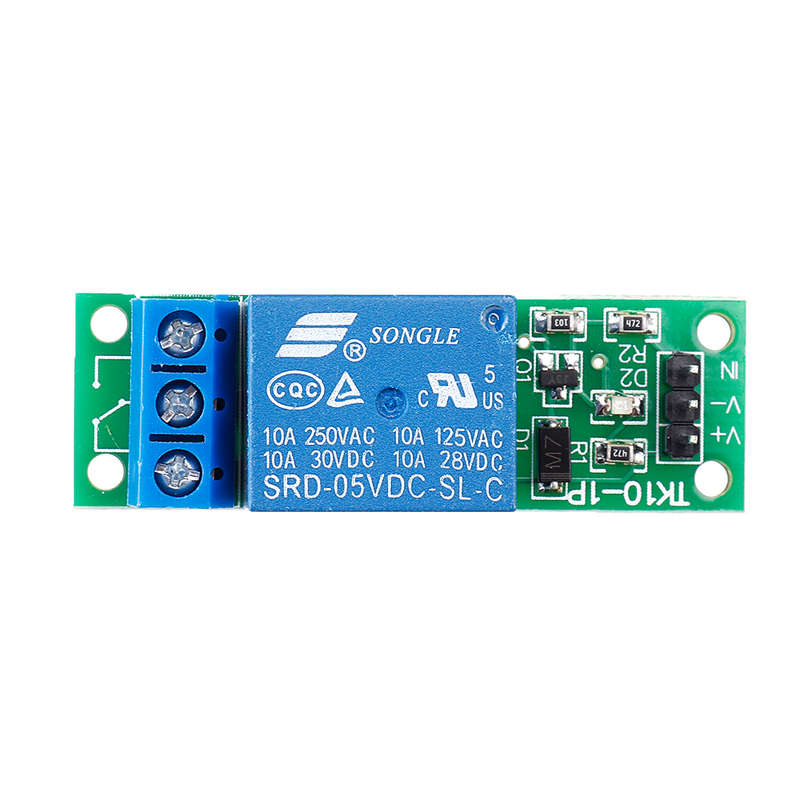

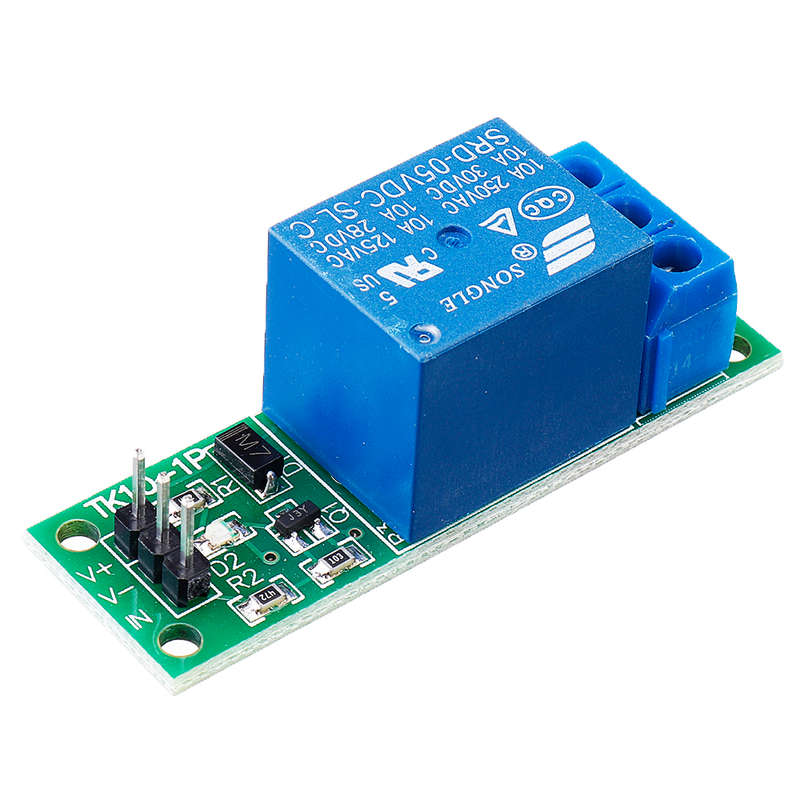

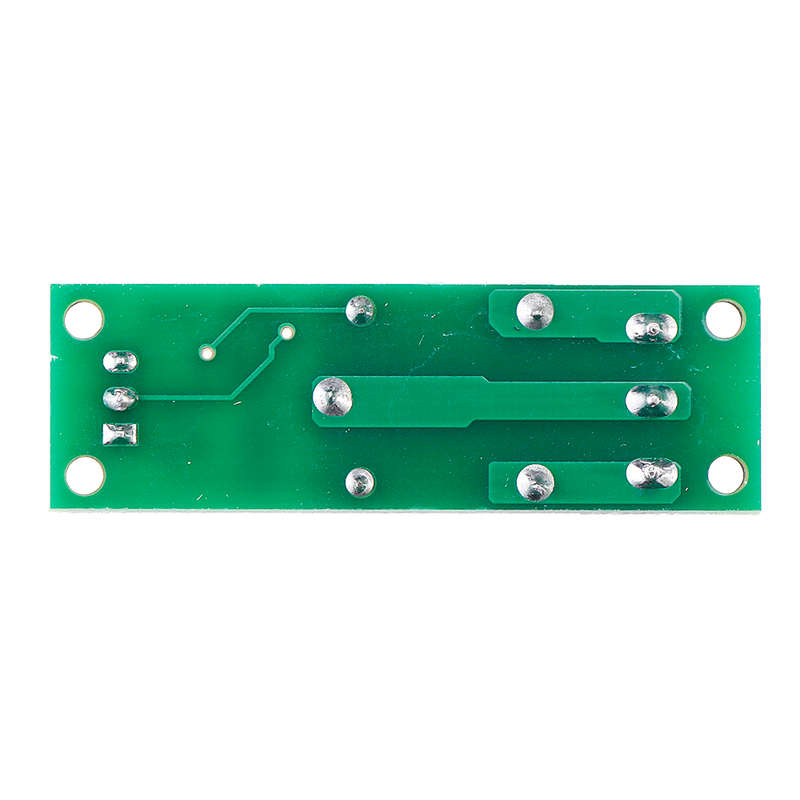

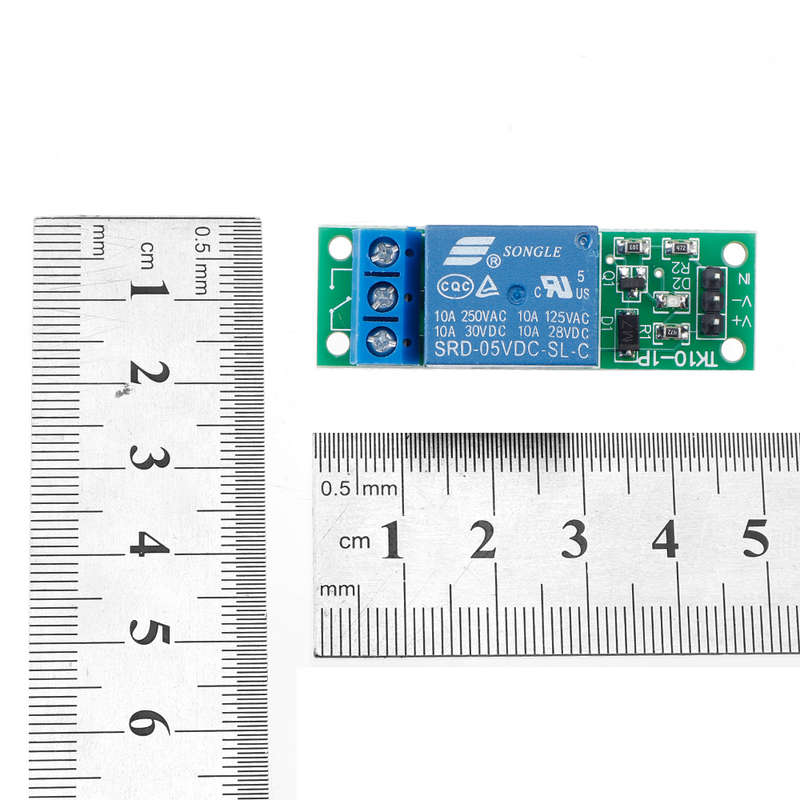

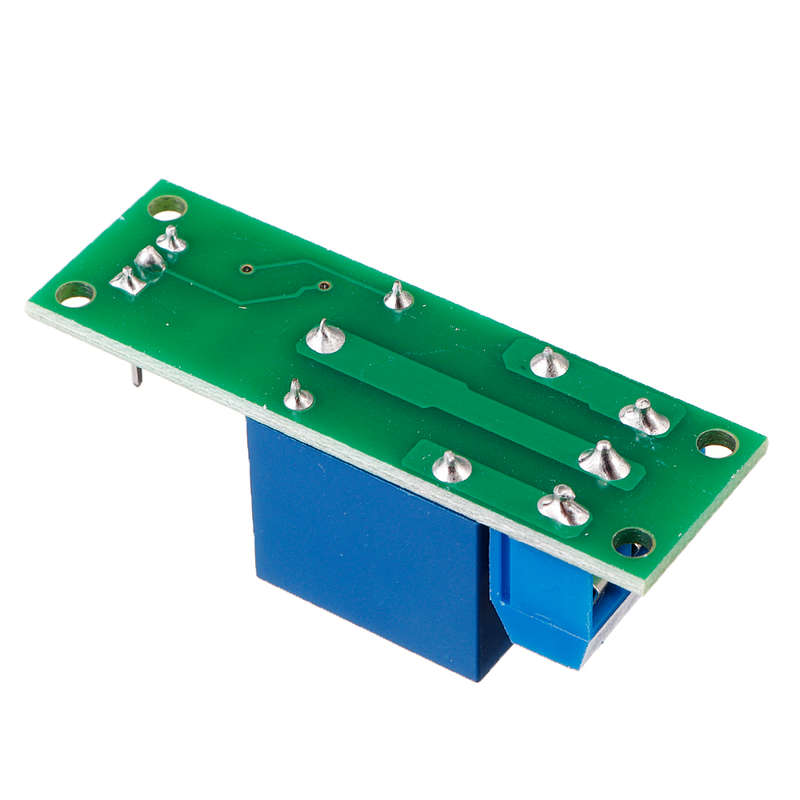

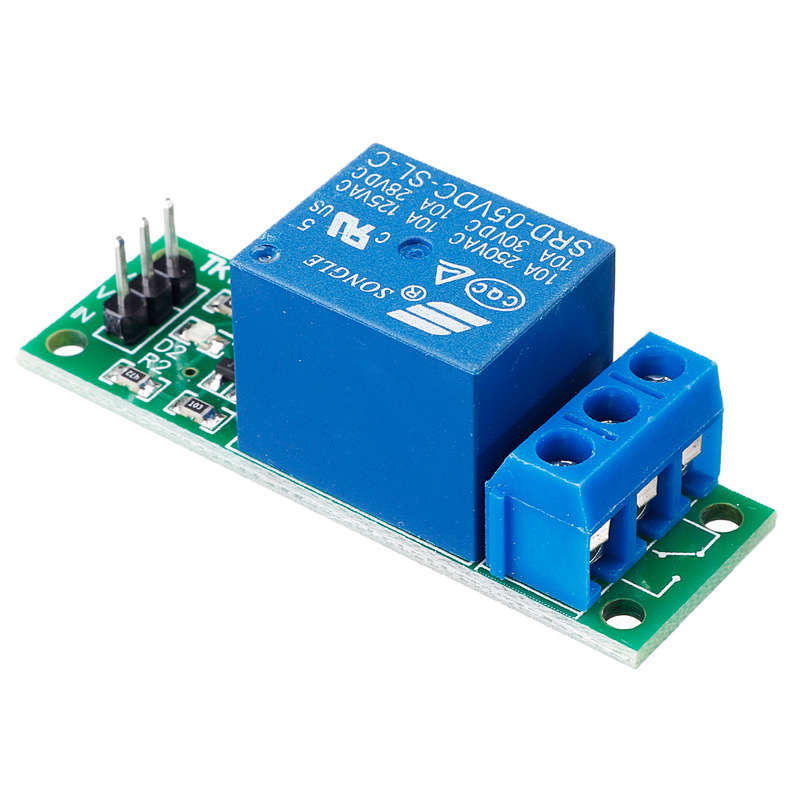

10pcs TK10-1P 1 Channel Relay Module High Level 10A MCU Expansion Relay 5V

20 available / new

R484.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.38 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641100008

Specifications: Voltage: 5V Quiescent current <1mA Dynamic current: 25mA@24V, 45mA@12V, 85mA@5V Signal: >2V, 0.5mA Response time: 50mS Features: - the control area and the load area and the contact are in accordance with the creepage distance requirement; - With relay action indication, the suction is bright, and the disconnection is not bright; - Can be used as a microcontroller development board module, can be used as home appliance control; - Control DC or AC signal, can control 220V AC load, load capacity up to 10A250Vac or 10A30VDC; - With a normally open and a normally closed contact, the wiring is more flexible. Package Included: 10 x TK10-1P 1 Channel Relay Module High Level 10A
