10pcs TL494 PWM Speed Controller Frequency Duty Ratio Adjustable

20 available / new

R705.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641100010

Function Description:

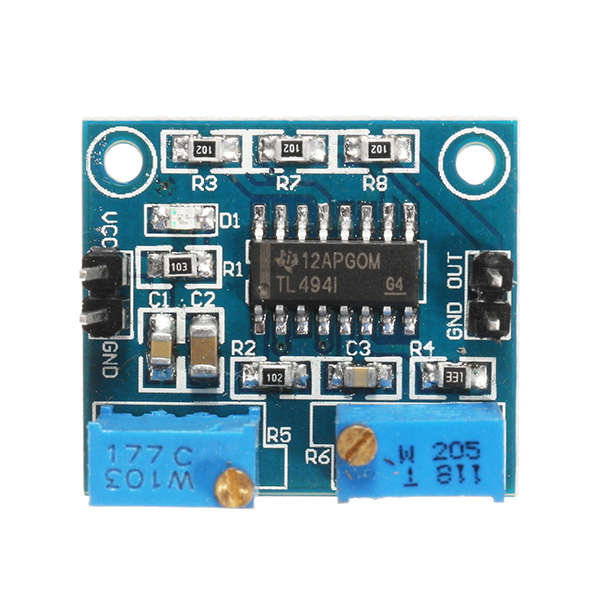

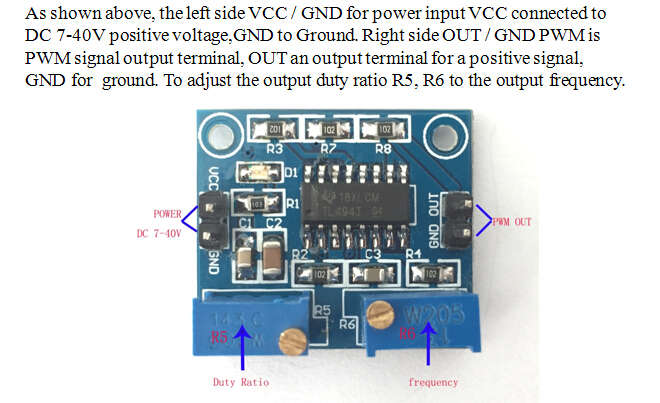

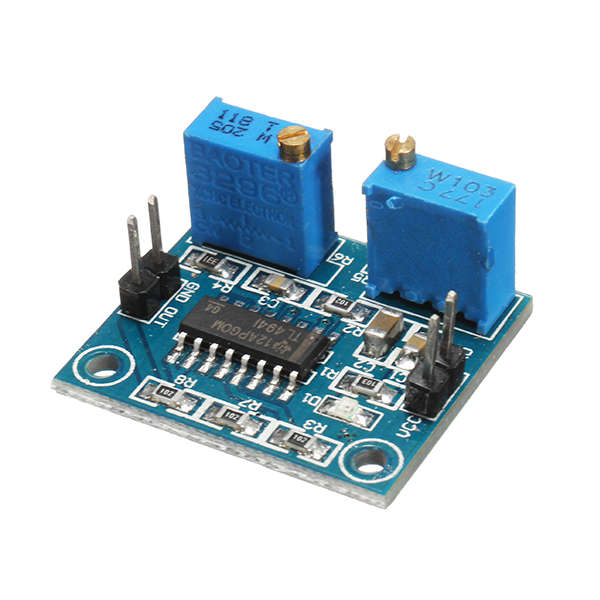

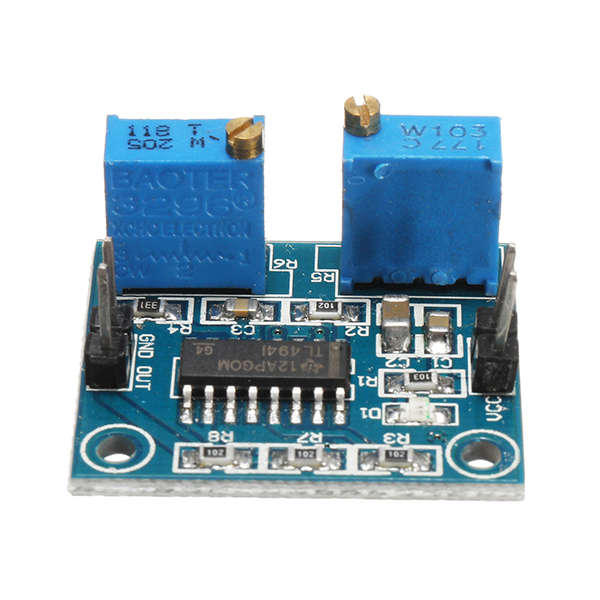

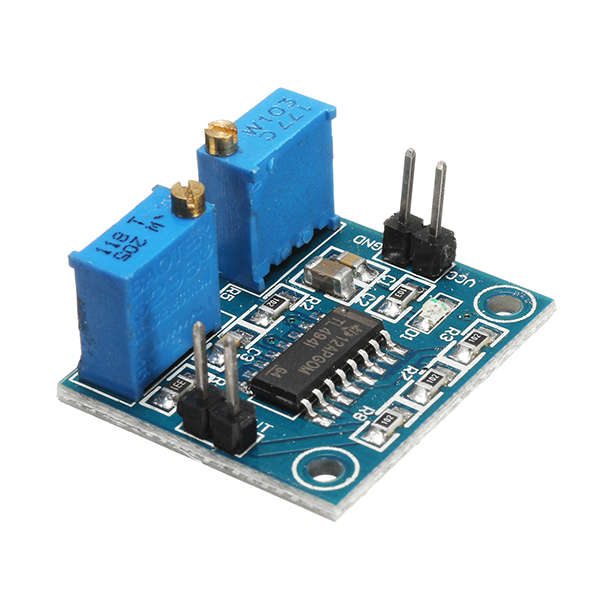

TL494 PWM regulator module, can adjust the output frequency and duty radio, widely used in switching power supplier, PWM drive circuit.

Feature:

PWM output frequency in the range 500Hz-100KHz can be adjustable, maximum duty cycle to 96%.
Output drive capability, signal stability;
Working voltage: DC 7V-40V Limit 42V;
Maximum output current: 250mA;
Output voltage: DC5V
Maximum power consumption: 1000mW;
Working ambient temperature: 0-70 a
Positioning hole: 2.7mm diameter(M2.5)
Board size: 26mmx23mm
