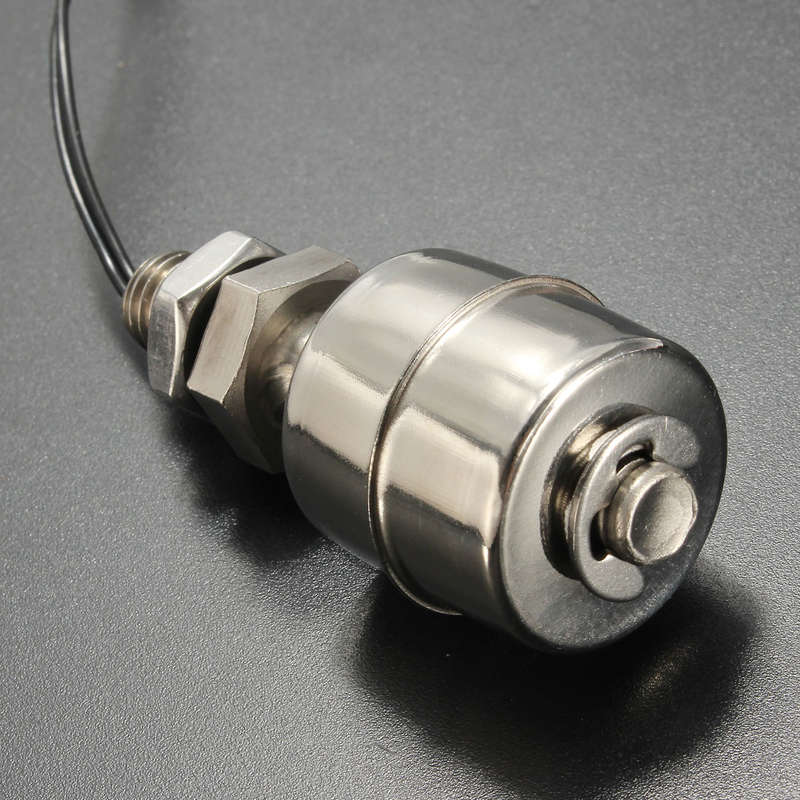

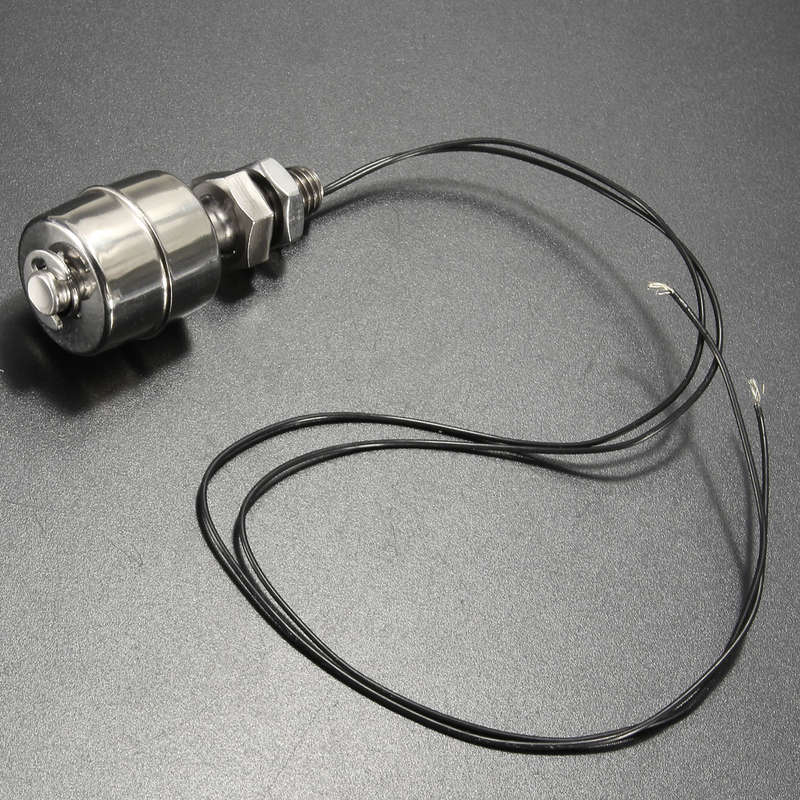

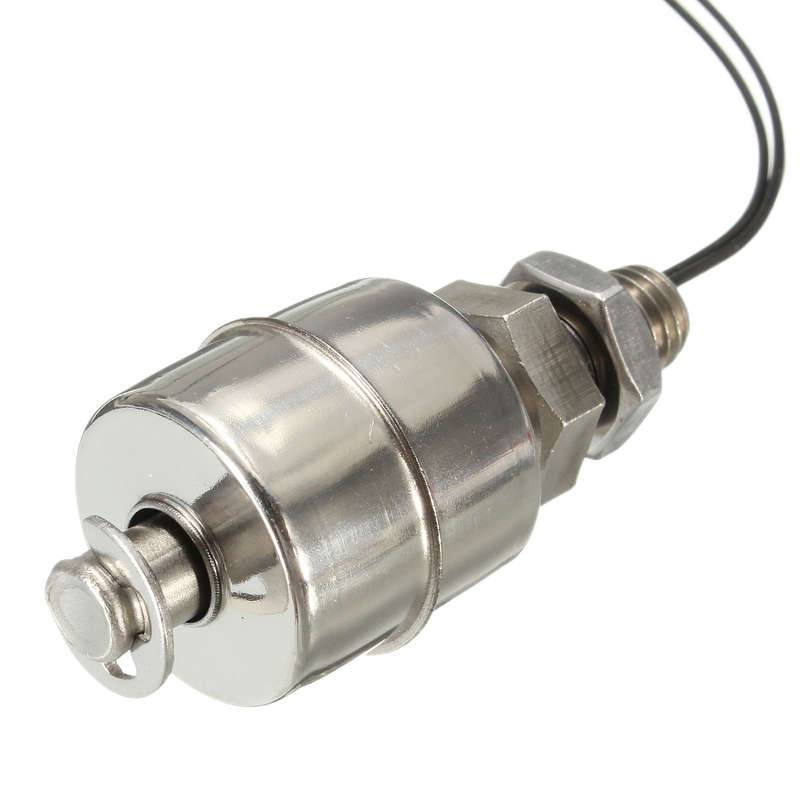

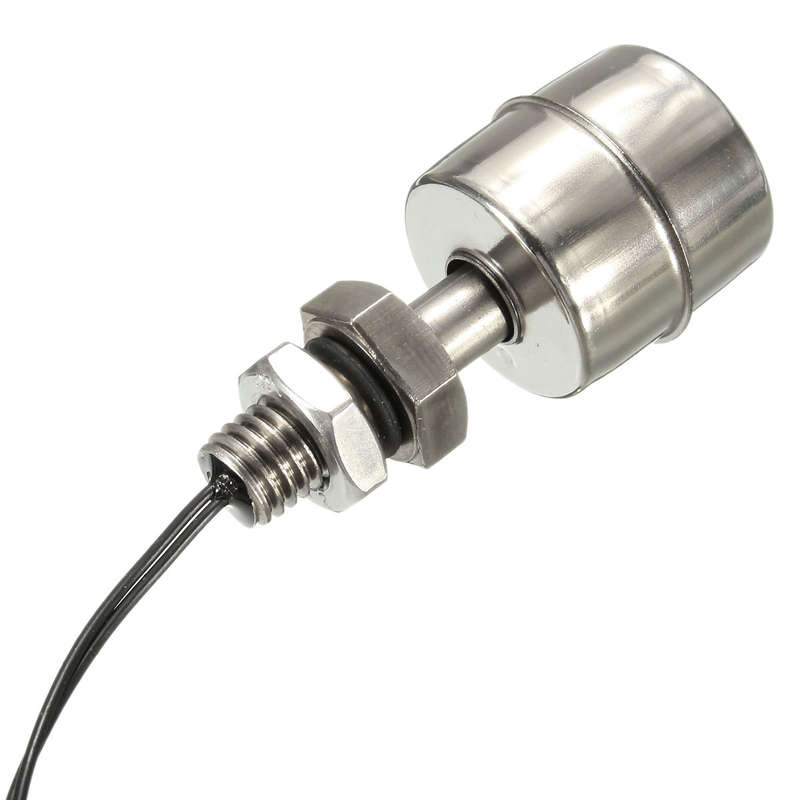

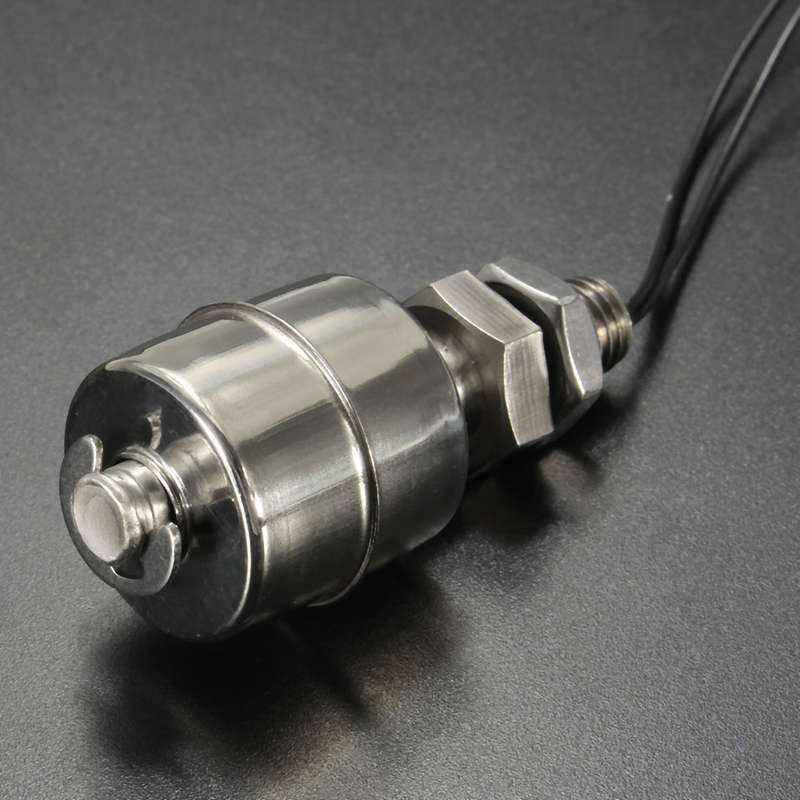

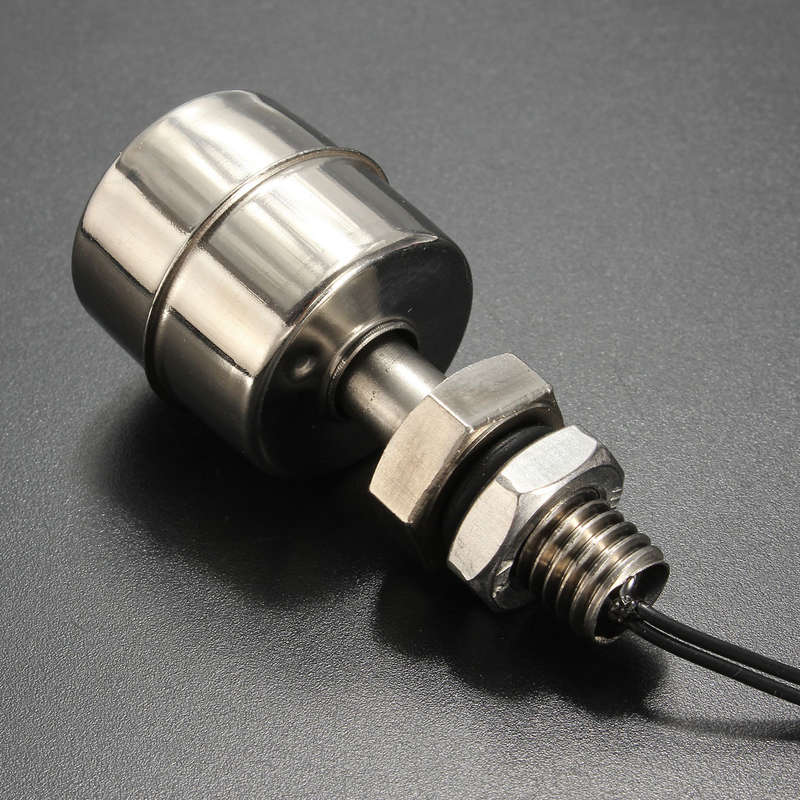

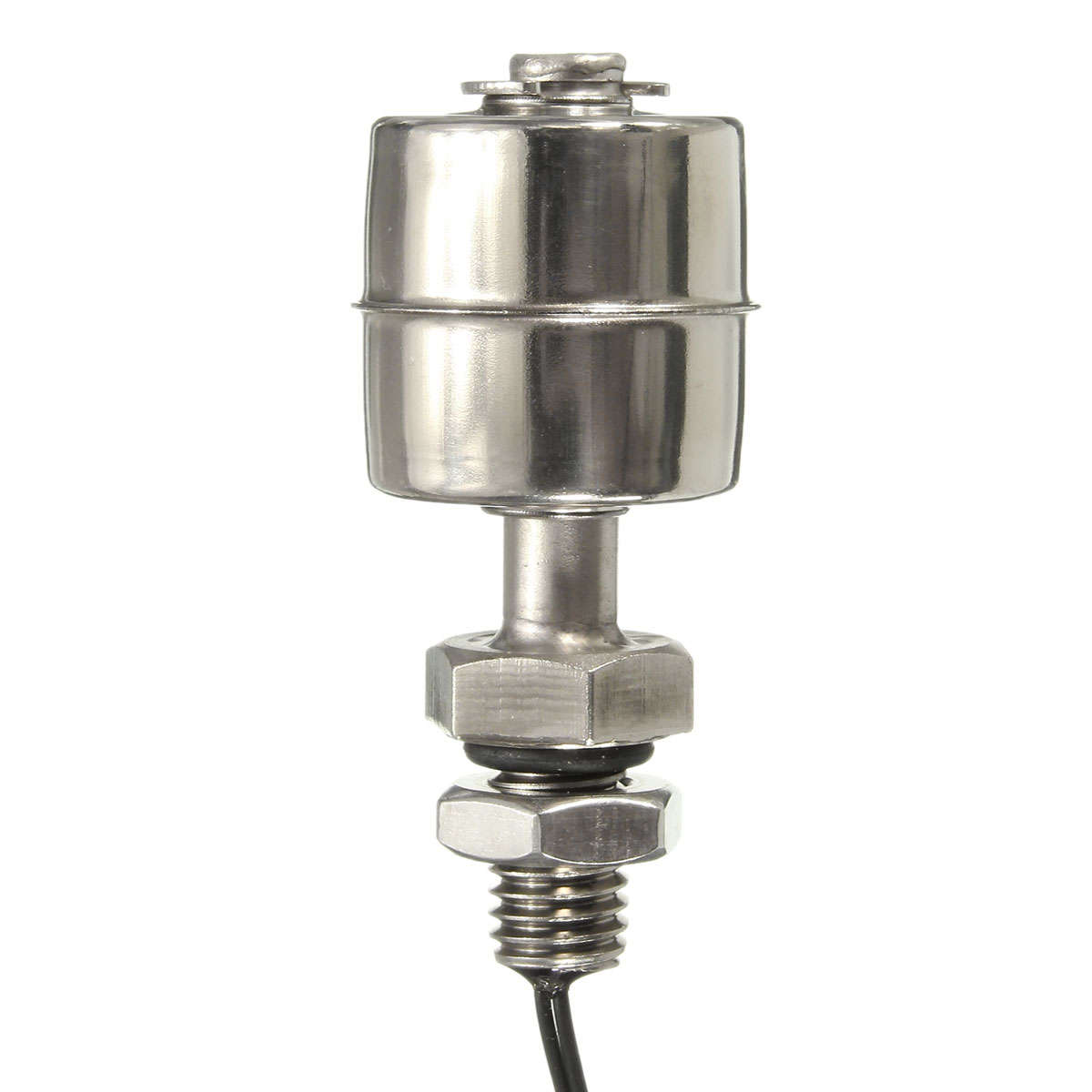

Package weight: 0.04 kg10W 110V Stainless Steel Water Level Sensor Float SwitchFeatures:
1. This is a stainless steel float switch,contains no mercury.
2. Light weight and simple working principle,high reliability.
3. Used to sense the level of liquid within a tank,the switch may activate a pump,an indicator,an alarm,or other device.
4. Simple structure,easy installation liquid level controller.
5. Versatility means that it can be installed either at the top or base of your tank,depending on whether you wish to detect the water's rise or fall.
6. Widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
Specification:
Color: Silver
Material: Stainless Steel SUS
Max Contact Rating: 10W
Max switching voltage: 100V DC
Max switching current: 0.5A
Max breakdown voltage: 220V DC
Max carry current: 1A
Max contact resistance: 100mΩ
Max temperature: -30¬トテ - +125¬トテ

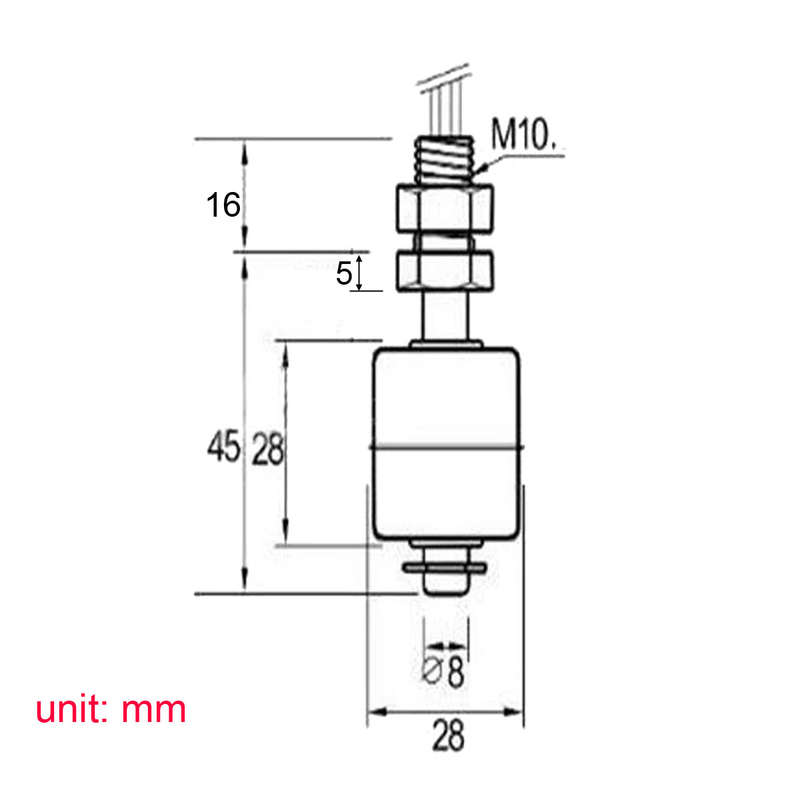

Thread Dia(Approx): 10mm
Switch Total Length: 61mm/2.4"
Cable Length: Approx 350mm/13.78"
Weight: About 40g
Package included:
1x Floating switch
