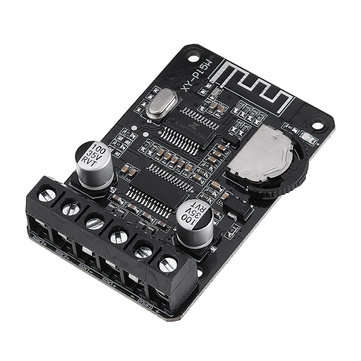

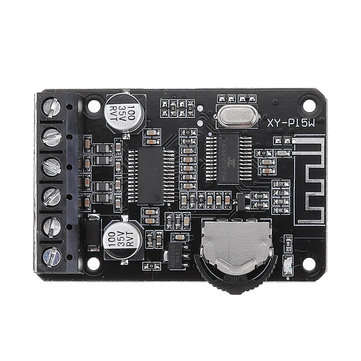

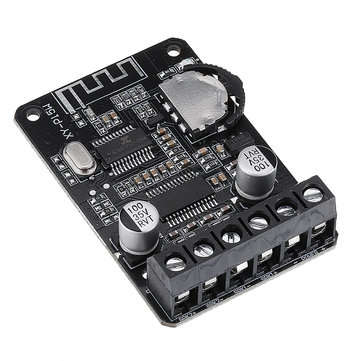

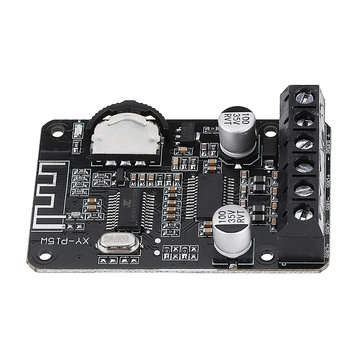

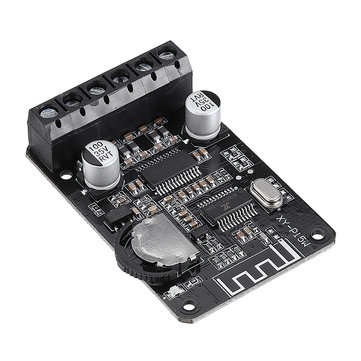

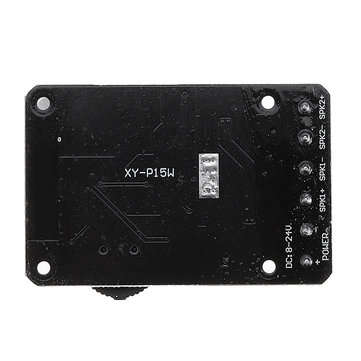

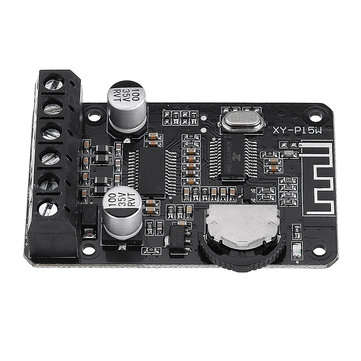

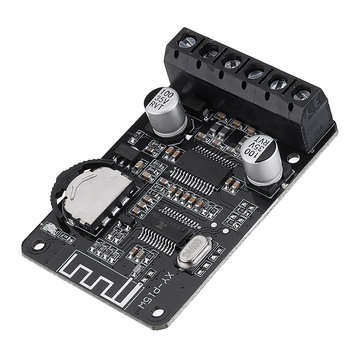

10W/15W/20W Stereo bluetooth Amplifier Board 12V/24V Digital Power Amplifier Module XY-P15W

12 were available / new

R462.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3602

93.00 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

606942144

Feature:

Product Name: bluetooth Digital Amplifier Module Product model: XY-P15W Working voltage: DC: 8~24V Bluetooth version: 5.0 Transmission distance: 15 meters (visual unobstructed) Number of channels: two channels (stereo) Output power (@1KHz): 16W*2 @12V 4?? 10W*2 @12V 8?? 15W*2 @16V 8?? 20W*2 @20V 8?? 30W*2 @24V 8?? (requires heat sink) Adapter speaker (30W~150W): 4 ohms (8~12V power supply) 8 ohms (8~24V power supply) 16 ohms (8~24V power supply) Module protection mechanism: reverse power protection Short circuit protection: self-recovery overheat protection

Precautions for use: ? 1. Use the power amplifier board as far as possible from the WIFI signal (router) 2. Recommended power supply voltage DC 8~24V, more than 26V, the chip will burn out. 3. The power supply does not exceed 12V when connected to a 4?? speaker, and the power supply does not exceed 24V when connected to an 8 ohm speaker. 4. The supply current is recommended to be 2A or more. 5. Module working power exceeds 20W*2, need to add heat sink 6. The speaker cable should not be too long, and it should be suitable within 1 meter. 7. Pay attention to static electricity protection. Before touching the power amplifier board, you need to release the static electricity on your hand to avoid static electricity from penetrating the chip. The Bluetooth chip is sensitive to static electricity. 8. It is recommended to adapt the rated power of the speaker to 30W and above to avoid the burning of the speaker.
Package includes:

1 x?Digital Power Amplifier Module
