10W 4.2/ 5/ 12/ 80V DC Hydroelectric PAower Micro-hydro Generator

10W 4.2/ 5/ 12/ 80V DC Hydroelectric Power Micro-hydro Generator Portable Water Charger

Features :

1. Unique hydropower separation technology, with unique dual clutch, magnetic circuit coupling volume is only about 4/5 of the normal micro hydroelectric generator, the output power is 2 to 3 times higher than the ordinary generator.

2. High efficiency, long life of waterway design and low flow loss, low water pressure, load short circuiting, also can start smoothly.

3. 4.2V/ 5V/ 12V/ 80V, total 4 models for option~

1). F50-80V : 0 to 80V DC output, generator without regulating circuit, peak voltage reach 80V, can be directly charging for 3-12V 10W LED lights or for small storage battery, the charging current is 220 ma, because when charging the battery in the same time it also being used in a timely manner, so the voltage automatically maintain at about 14V, so it can keep the right voltage for the storage battery charging.
2). F50-12V : 12V DC voltage output, can give the power or recharge for the radio with 12V working voltage, or for the LED.
3). F50-4.2V : 4.2V DC output, can recharge for the ordinary lithium battery etc.
4). F50-5V : 5V DC voltage output, can charging for the mobile phone, can also recharge for the ordinary lithium battery with management chip etc.


Specification :

1. Water inlet/outlet : 1/2"
2. Output Voltage : 4.2V/ 5V/ 12V/ 80V
3. Max power : 10W
4. Output Current : max 220Ma
5. Outlet closed highest pressure : 0.6MP
6. Outlet opening the highest pressure : 1.2MP
7. Startup pressure 0.05 Mpa
8. Working Temperature Range : 5°C ~ 85°C

This SKU is from a product's request by customer Rod Con.
Thanks very much for him : )

1 x 10W DC Hydroelectric Power Micro-hydro Generator (4.2V/ 5V/ 12V/ 80V optional~)

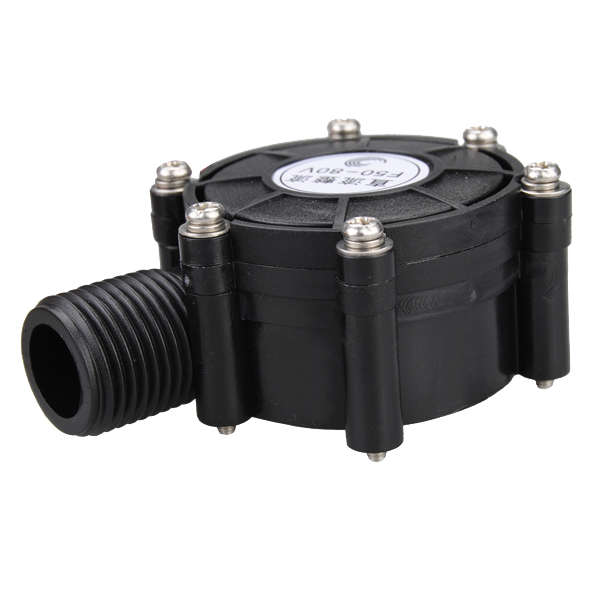

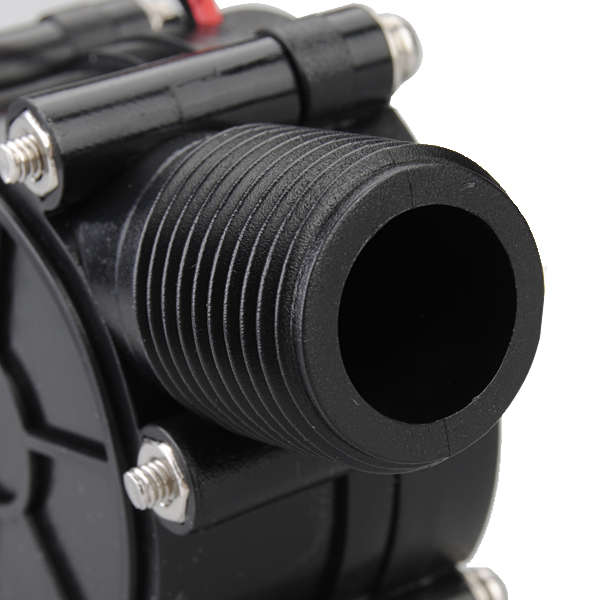

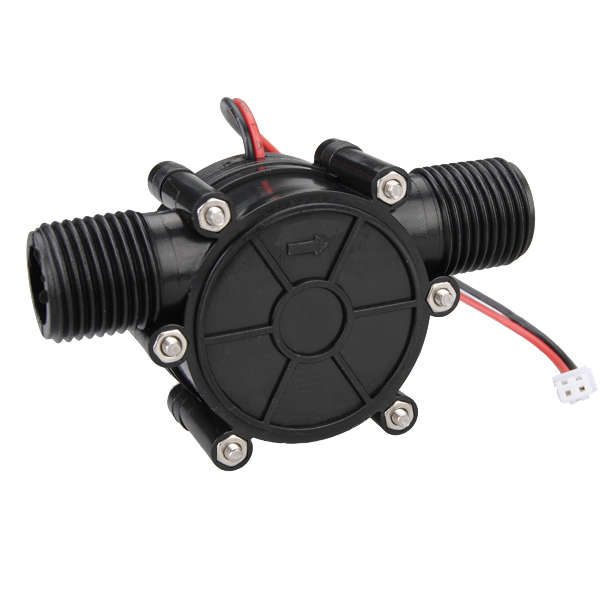

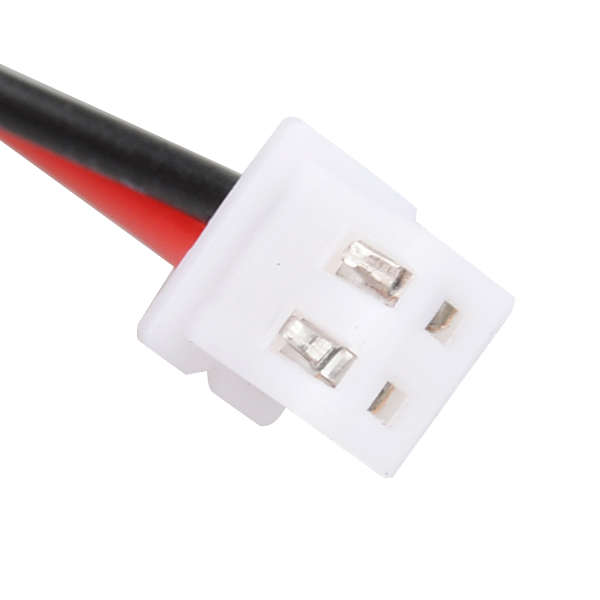

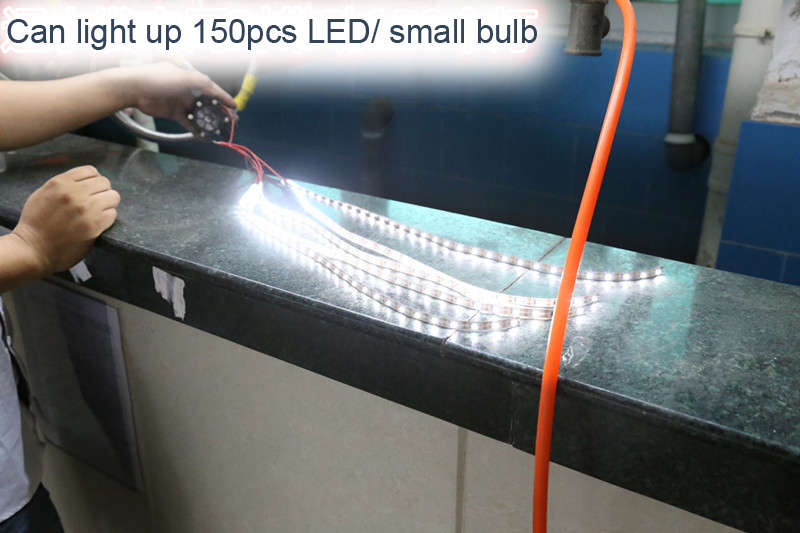

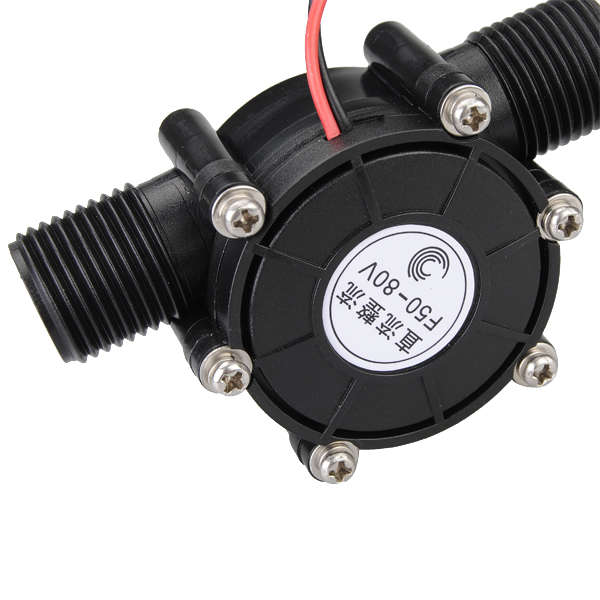

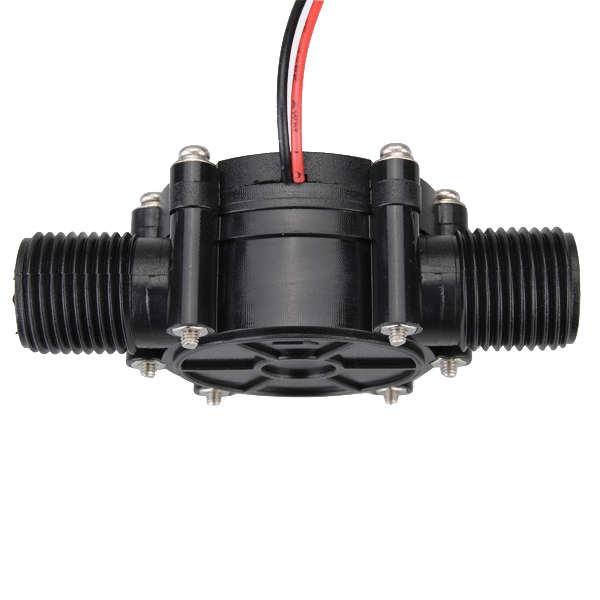

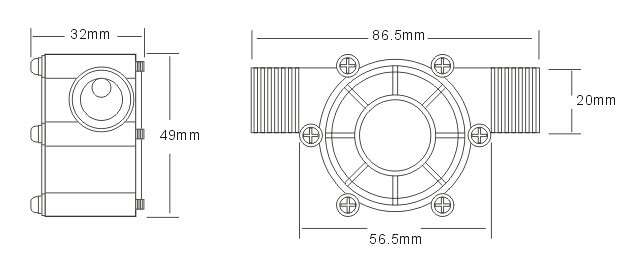

Details pictures :
