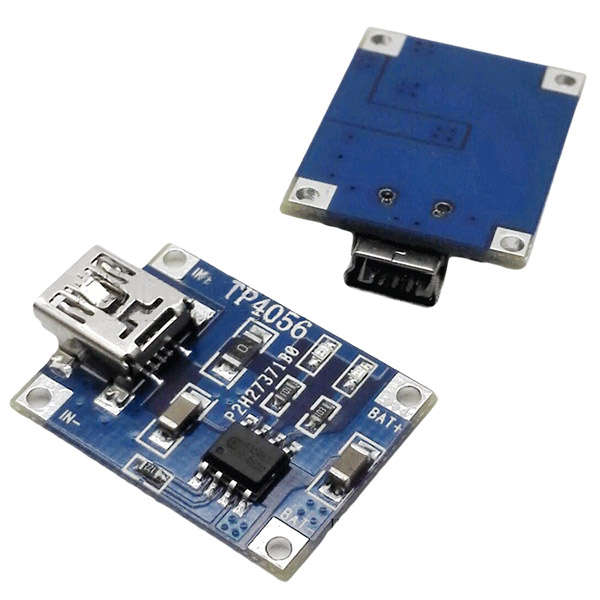

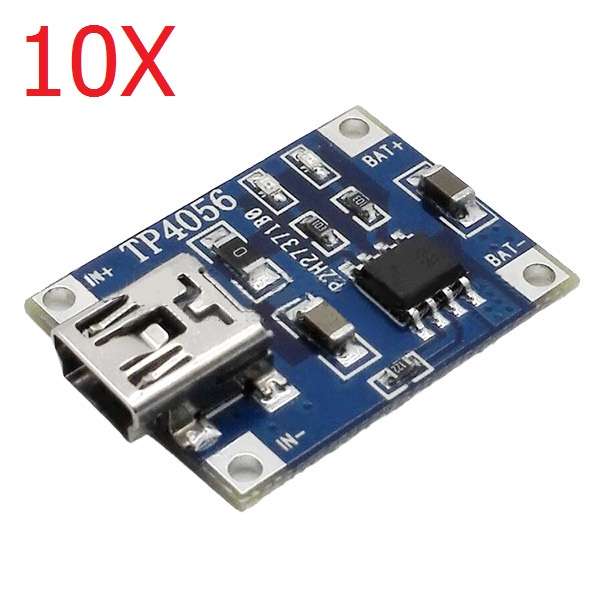

10X TP4056 1A Lipo Battery Charging Board Charger Module Mini USB Interface
30 were available / new
Indicative market price:
R299.00
R147.58
51% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
10X TP4056 1A Lipo Battery Charging Board Charger Module Mini USB Interface Description: Item Name: Lipo battery charging board Item NO.: TP4056 Charging Method: linear charge Charging Current: 1A Adjustable Charge Accuracy: 1.5% Input Voltage: 4.5V-5.5V Full Charge Voltage: 4.2V Charging Indicator: Blue light lit charge,red light lit full charge Charging Input Interface: Mini USB Working Temperature: -10 Degree to +85 Degree Reverse: NO Weight: 1.8g External Dimensions: 25 * 19 * 10mm Usage: Used for single lipo or multi-section lipo parallel charging,can take power from the USB port. Current Regulation:
R(K)
I(mA)
30
50
20
70
10
130
5
250
4
300
3
400
2
580
1.66
690
1.5
780
1.33
900
1.2
1000
Features: Use mature charging chip TP4056,simple peripheral circuits,good protection performance and high charging accuracy. Fully machinery automated processing,all patch parts manufacturing. Each module will be tested before shipment,high reliability. Current can be adjusted,just change the circuit board fixed resistors, can change the output to the 100mA-1000mA, very convenient. Note: Input reverse connection has no effect on the chip, but the output (battery end) reverse connection will burn out the chip. Ampere meter can only be series connected to the 5V input end. The charging current is best to be 0.37 times of the battery capacity, Charging wire can't be too thin or too long. Make sure the board has good contact with the battery. Chip at work about 60 degrees fever is normal. Package Included: 10x TP4056 1A Lipo Battery Charging Board
