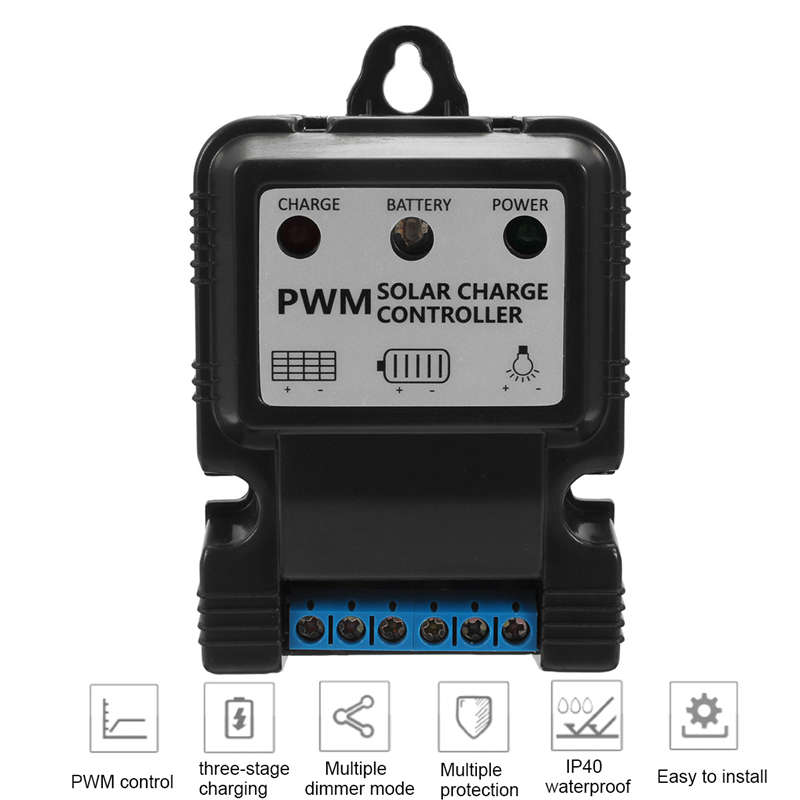

Feature: - PWM control
- IP40 waterproof
- Three-stage charging
- Multiple dimmer mode
- Multiple protection:Overcharge protection/Short circuit protection/Overfall protection/Open circuit protection/Reverse connect protection/Temperature compensation
- Overload, short circuit protection: 1.5 times the rated current delay closed 5 minutes, automatic recovery after 5 minutes, 3 times rated current or short circuit protection
Specifications: Charging mode: PMW mode

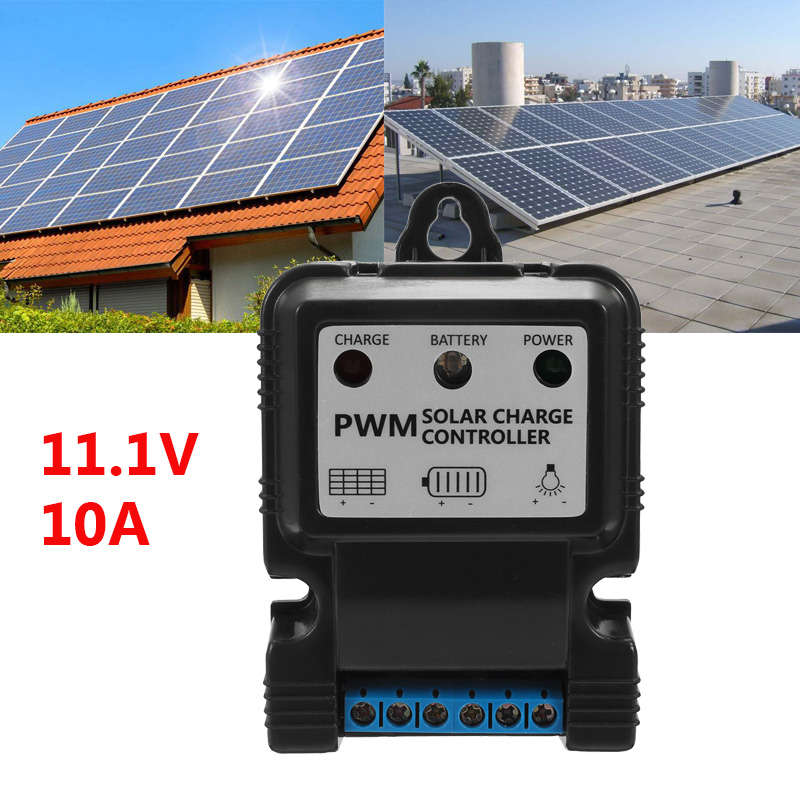

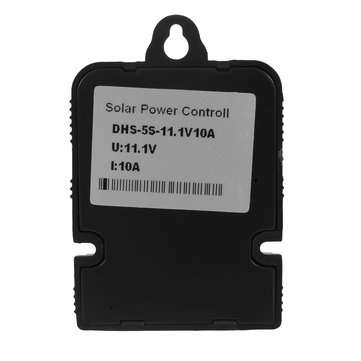

Current: 10A.
Voltage: 11.1 V
The input power: ≤60W
The input voltage: <25V
Charging circuit step-down:≤700mV
Discharge circuit voltage: ≤100mV
Overvoltage protection voltage:13.6V±1.5%
Overpressure recovery voltage: 13.1V±1.5%
Put protection voltage: 9.0V±1.5%
Put the recovery voltage: 11.1V±1.5%
Charge cut-off voltage: 12.6V ±1.5%
Charging return voltage: 11.1V ±1.5%
Bai Tianshe don't voltage: 7.0V± 1.5%
The night don't voltage: 3.0V±1.5%
Working temperature: -30℃ - + 55℃
Storage temperature: -45℃- + 70℃
Humidity: 90% RH or less
Protection grade: IP40

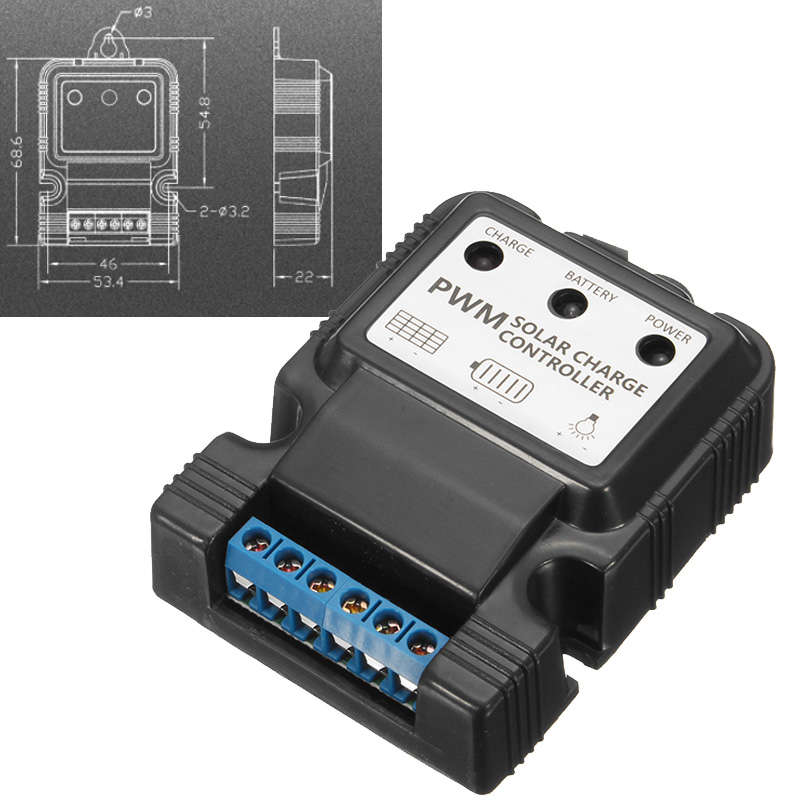

Size: 53.4 x68.6 x22mm

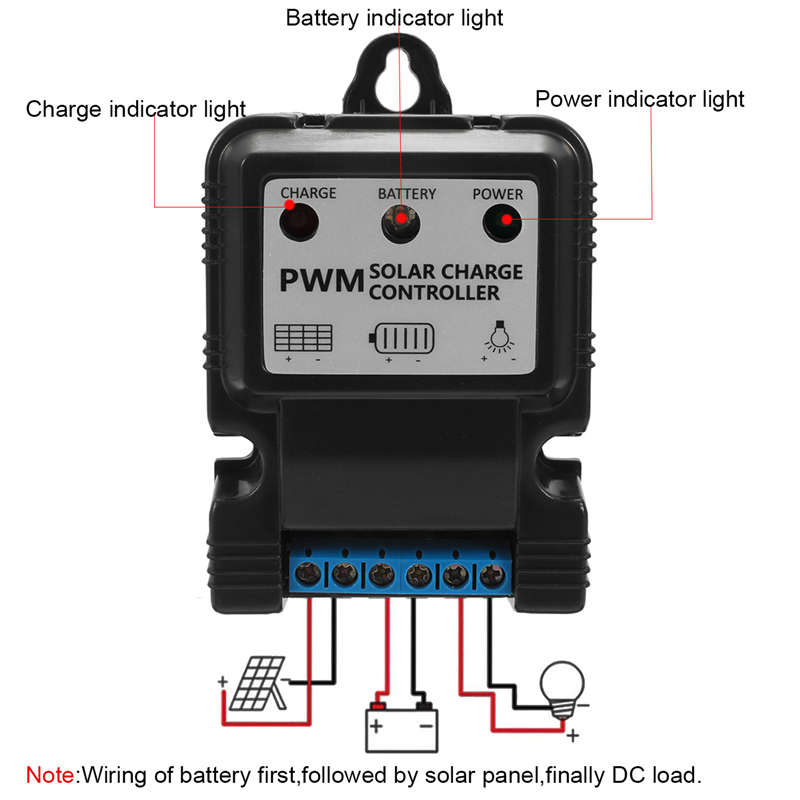

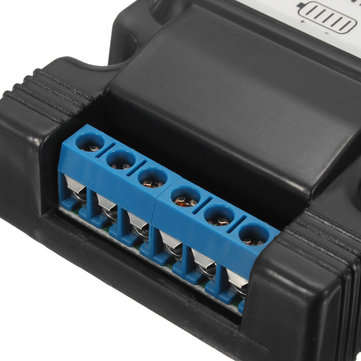

Install line number: AWG22-14/2mm²

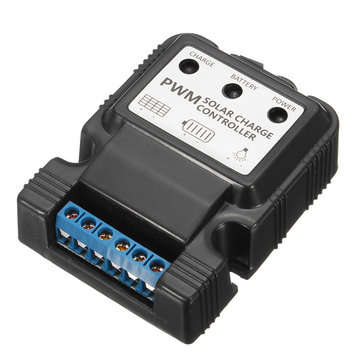

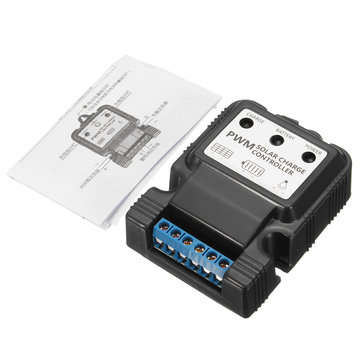

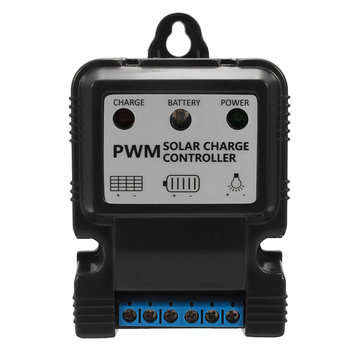

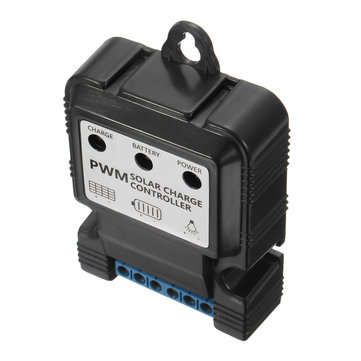

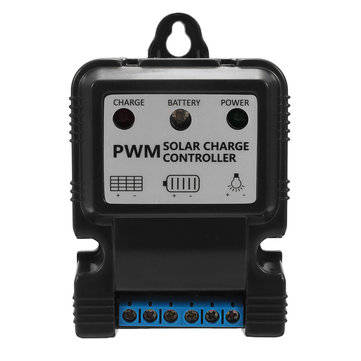

Package included: 1 x Solar charge controller
