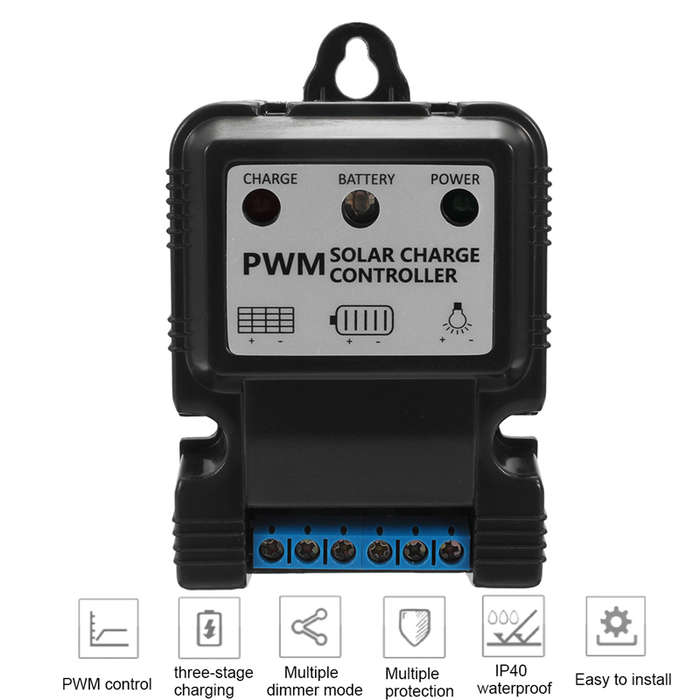

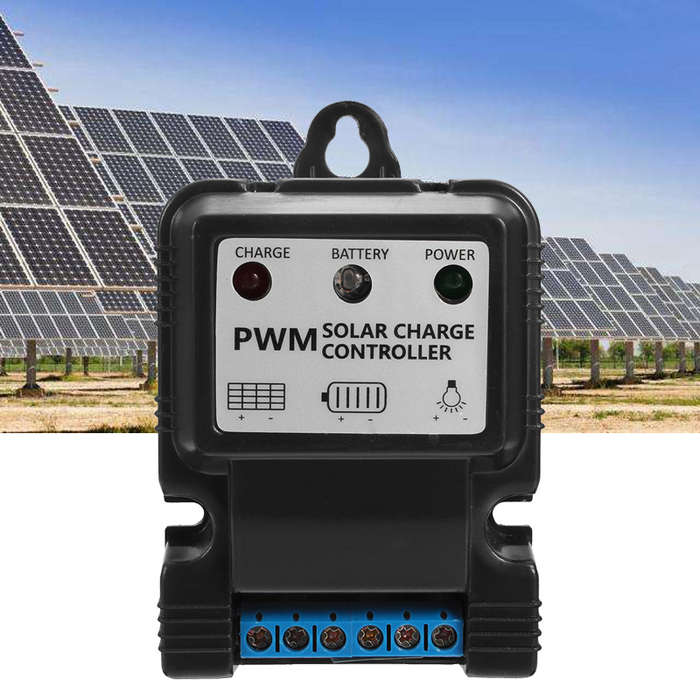

11.1V 5A PWM Solar Power Controller Intelligent Multiple Protection Controller

New

20 available

R467.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3903

92.56 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651205321

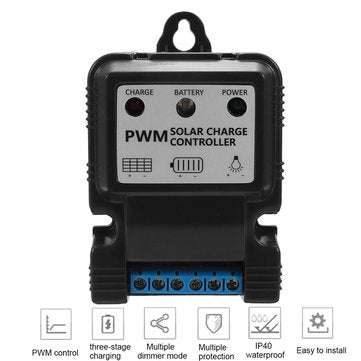

Features:
-PWM control. -Three-stage charging. -Multiple dimmer mode. -Multiple protection: Overcharge protection / Short circuit protection / Overfall protection / Open circuit protection / Reverse connect protection / Temperature compensation. -IP40 waterproof. Specification:

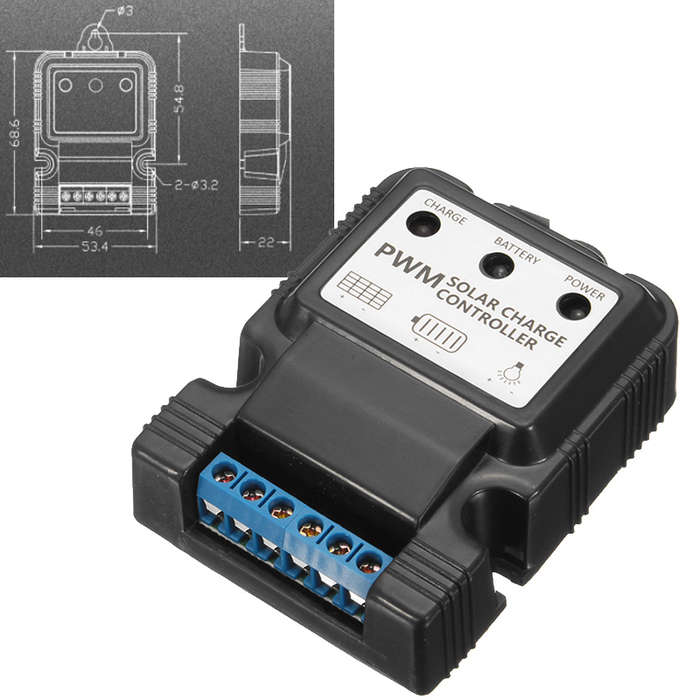

Charging mode: PMW mode Current: 5A Voltage: 11.1 V The input power: a60W The input voltage: <25V Overload, short circuit protection: 1.5 times the rated current delay closed 5 minutes, automatic recovery after 5 minutes, 3 times rated current or short circuit protection Charging circuit step-down: a700mV Discharge circuit voltage: a100mV Overvoltage protection voltage:13.6V&pm;1.5% Overpressure recovery voltage: 13.1V&pm;1.5% Put protection voltage: 9.0V&pm;1.5% Put the recovery voltage: 11.1V&pm;1.5% Charge cut-off voltage: 12.6V &pm;1.5% Charging return voltage: 11.1V &pm;1.5% Bai Tianshe don't voltage: 7.0V&pm; 1.5% The night don't voltage: 3.0V&pm;1.5% Working temperature: -30a - + 55a Storage temperature: -45a- + 70a Humidity: 90% RH or less Protection grade: IP40 Size: 53.4 x 68.6 x 22mm Install line number: AWG22-14/2mm2 Package included:
1 x Solar Charge Controller

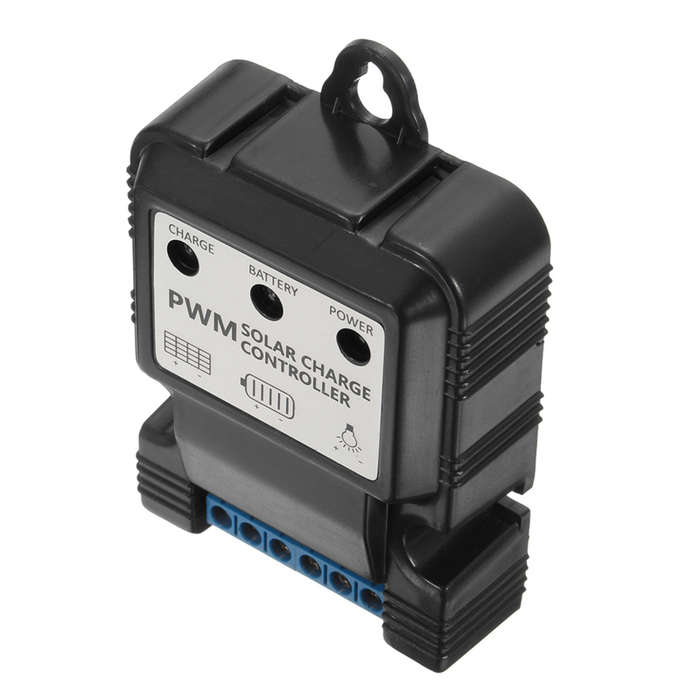

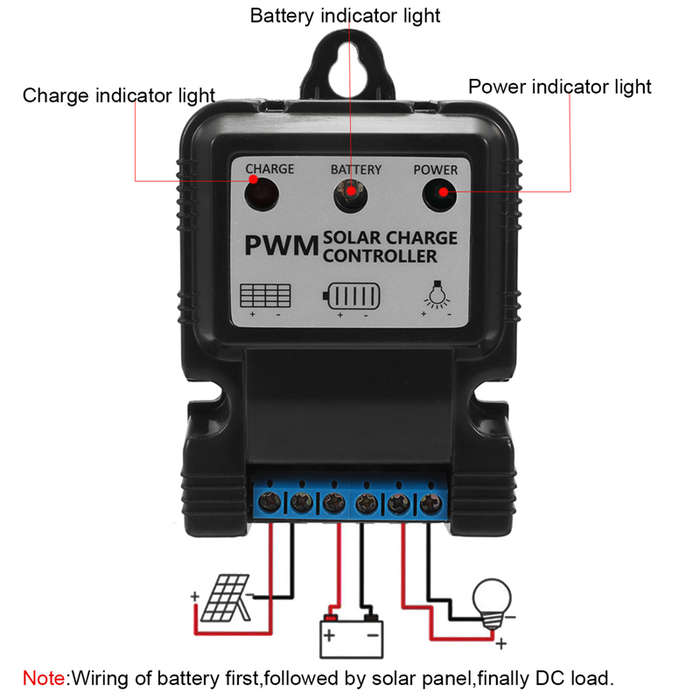

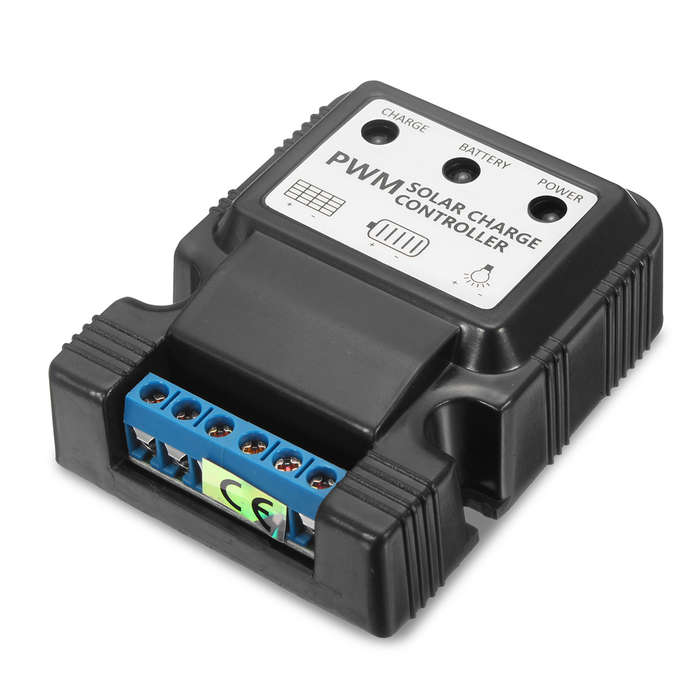

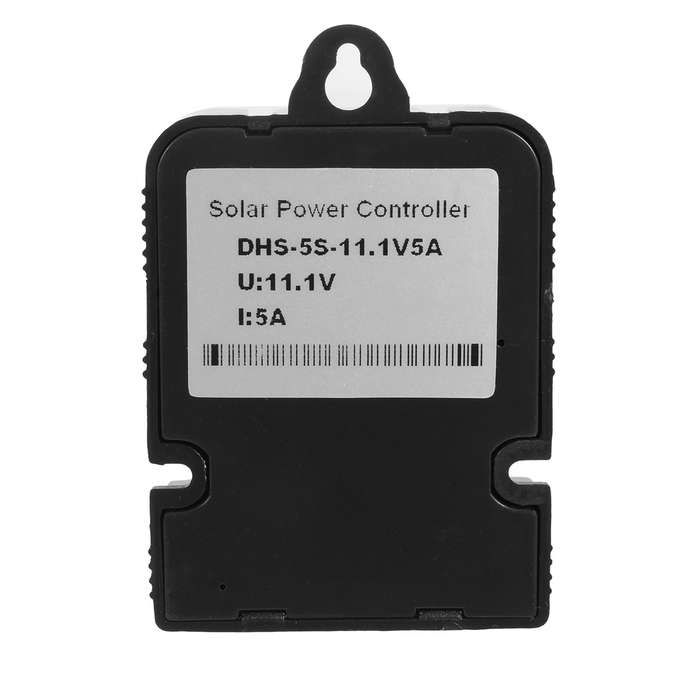

Detail Pictures:
