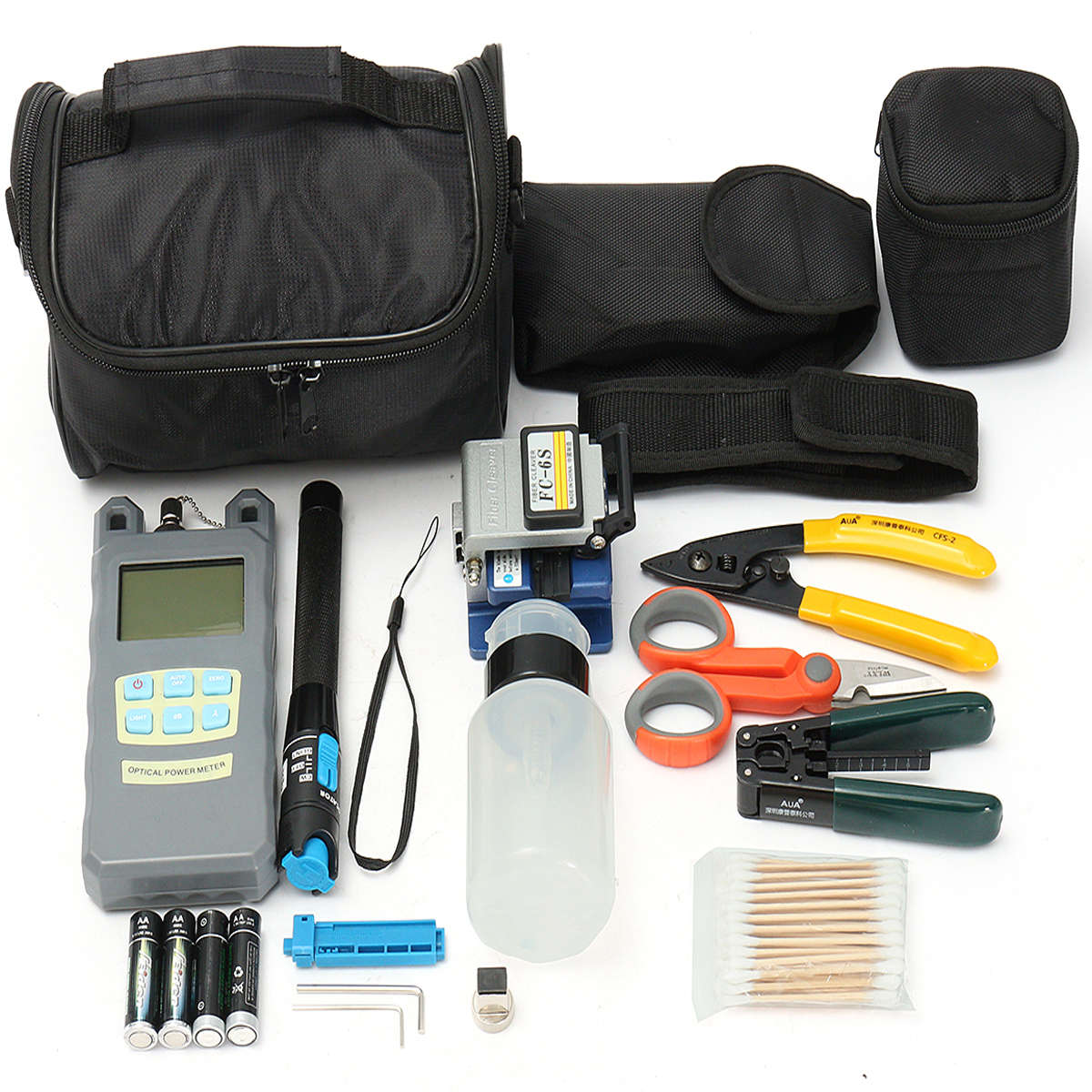

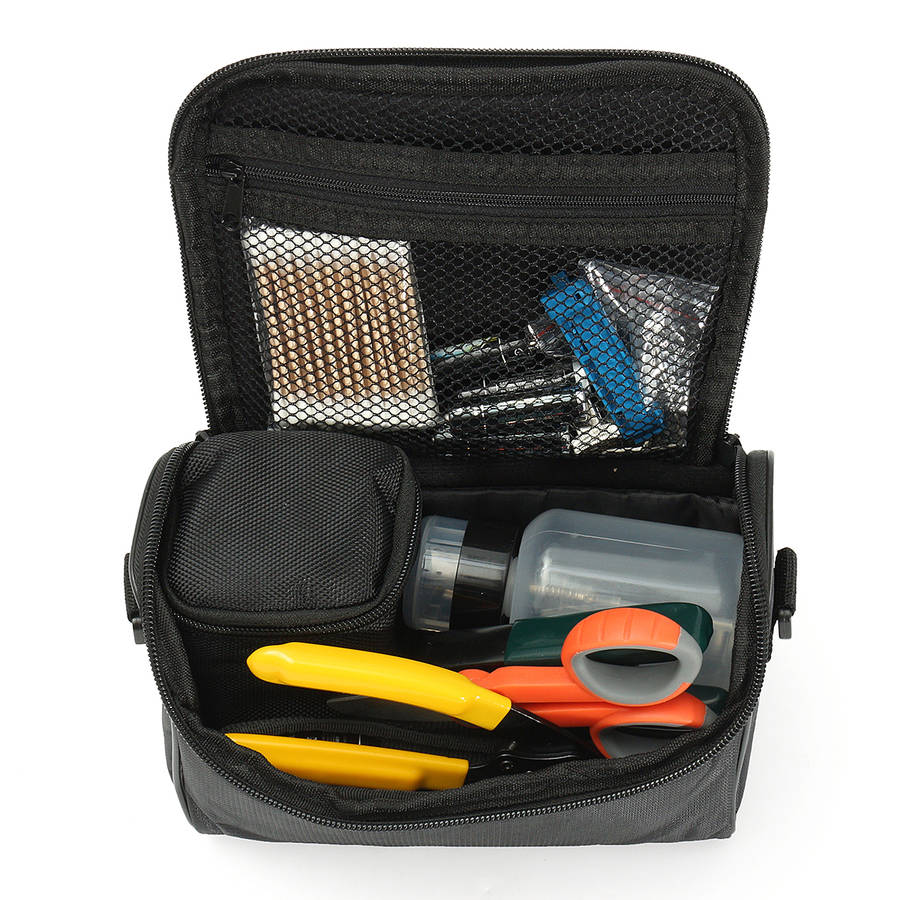

Optical power meter
Working wavelength: 850-1625nm
Test accuracy: ± 0.2dB
Test range: (- 70) - (+10) dB
Display Resolution: Linear Display: 0.1% Logarithmic Display: 0.01dB
Operating temperature: -10 ~ +60 ¿¿¿
Storage temperature: -25 ~ +70 ¿¿¿
Automatic shutdown time: 10min
Battery continuous working time: not less than 40 hours
Battery: Dual rechargeable lithium batteries or 5 alkaline batteries
Special features: There are three modes, factory mode, user mode, work mode, usually the work mode
10 minutes automatic shutdown function
Press the AUTO OFF button to turn the Auto Power Off function on / off. When the power off function is turned on, the shutdown symbol is displayed at the top left of the screen. If no key is pressed for 10 minutes, the power is turned off automatically.
LED backlight on / off function
In the operating mode, press LIGHT to turn the backlight on / off. When the backlight is turned on, a small sun logo is displayed at the top left of the screen indicating that the backlight is on.
Serial debugging function
The serial port connection and the PC serial port terminal connection, you can read data through the PC machine and instrument calibration.
Key functions
LIGHT: Increase by 0.05
DB: decrease by 0.05
ZERO: Save
Λ: Switching wavelength
Λ + ZERO: Restore factory settings
Fiber cutting knife
Applicable bare fiber diameter: 125μm
Applicable fiber core degree: 10mm
Operation method:
1. Open the clamp cover of the single-core optical fiber clamp by lifting the optical fiber cover open lever. Confirm the position of the blade slider on the front side
2. Place the fiber in the groove of the single-core fiber holder, and align the coated boundary line with the measured graduation of the appropriate cut length of the fiber
3. Cover the clamp cover of the single-core optical fiber fixture and clamp the optical fiber
4. Close the FPC cover, and lower the FPC cover opening and closing lever, advance the sliders to cut the optical fiber, lift the FPC cover opening and closing lever, and open the platen cover. Please hold down the fiber by hand while opening the single-core optical fiber clamp fixture, remove the fiber, remove fiber debris.
Peel cable stripping forceps
Adapt to the fiber: 1/2 core fiber
Adaptation: indoor 3mm (W) x2mm (H) cable
Adapt to fiber coating diameter: 0.25 & 0.9
Adapt to fiber cladding diameter: 125μm
Blade life: metal reinforced core 1000 times, non-metallic reinforced core 2000 times
Fiber optic red test pen
Output wavelength: 650 nm ± 10 nm
Fiber Optic Adapter: universal connector
Operating temperature: 0 ~ +60 degrees Celsius
Storage temperature: -20 ~ +70 degrees Celsius
Battery type: 5 good alkaline batteries 2
Instructions:
1. Install the battery, the switch toggle up for the always light, down toggle flashing, frequency 2HZ, stay in the middle to close the instrument
2. Detector is not used for a long time Please remove the battery
Waring: Do not look into the laser light when using, so as not to cause eye damage
Application:Fiber optic tools
