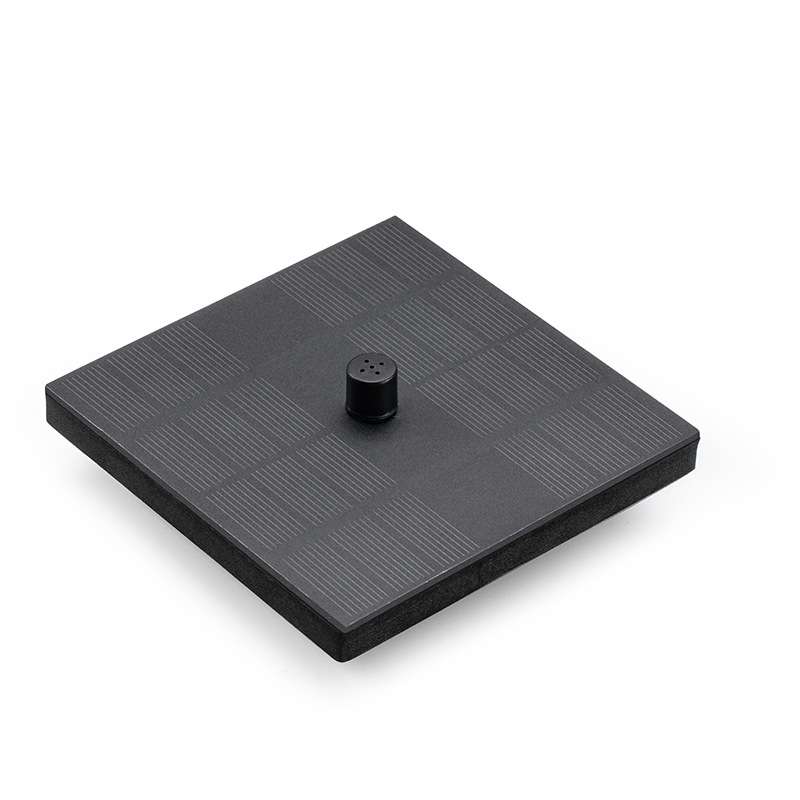

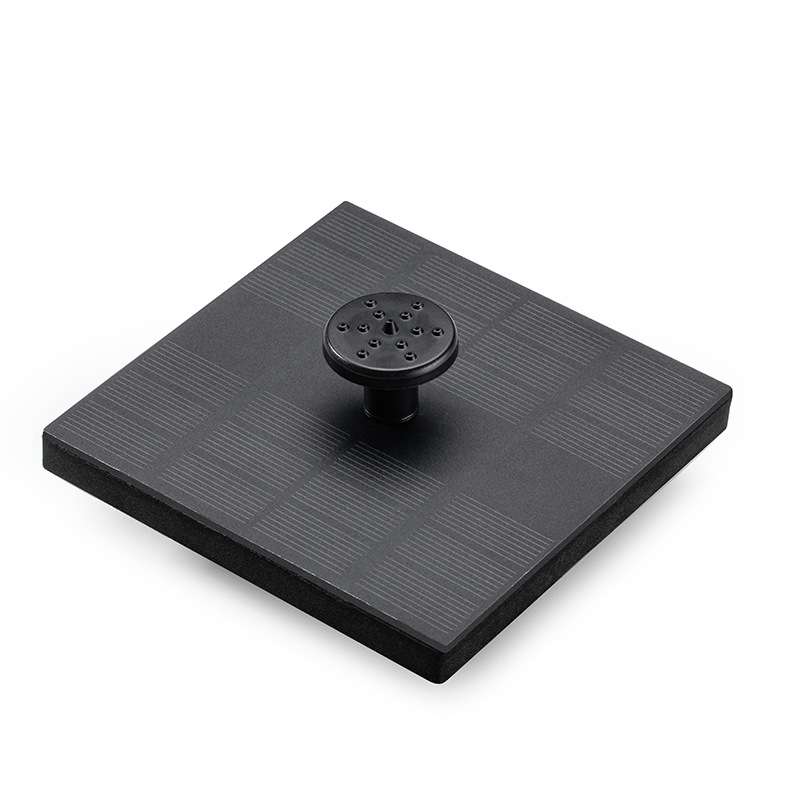

11CM Outdoor Pool Floating Solar Fountain(CPS30-110F)

1. Material: laminated
2. Rated voltage: 7V
3. Rated power: 1.4W
4. Working voltage: DC 7V
5. Working current: 150MA
6. Head: 70 cm
7. Flow rate: 180L/H
8. Pump life: 20000 hours
9. Water pump noise: 45DB
10. Weight: 150 grams

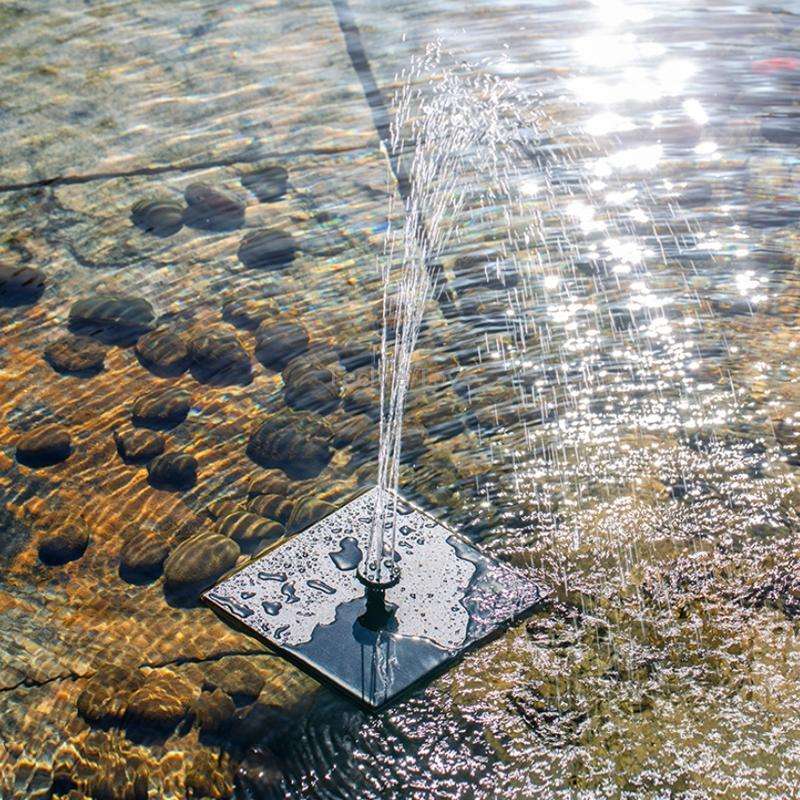

11. Spray height: 30-50cm
12. Connect different nozzles, the height of water spray will be different
13. When the solar panel receives sufficient sunlight, the water pump will start within 3 seconds
14. The solar brushless water pump adopts Hall elements with high sensitivity and low power consumption, and is driven by efficient and intelligent electronic circuits. The volute design in fluid mechanics is adopted for the impeller chamber to reduce the resistance of water flow, so that the overall performance is better than that of traditional structures. The efficiency of the solar water pump is increased by 20%, which also solves the shortcomings of the current brushless solar water pump, such as difficulty in starting, low efficiency, and poor stability.

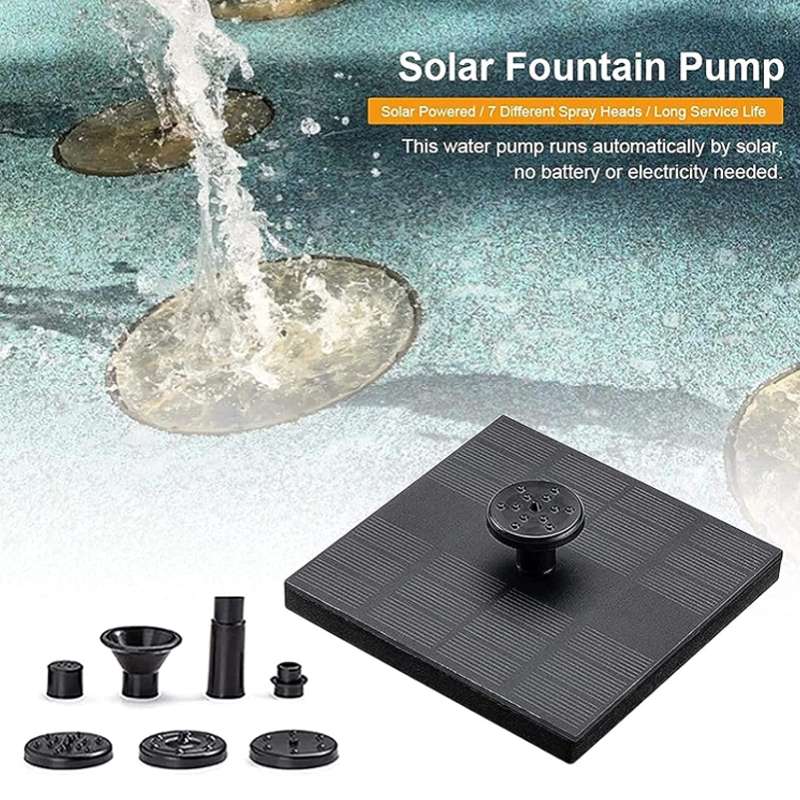

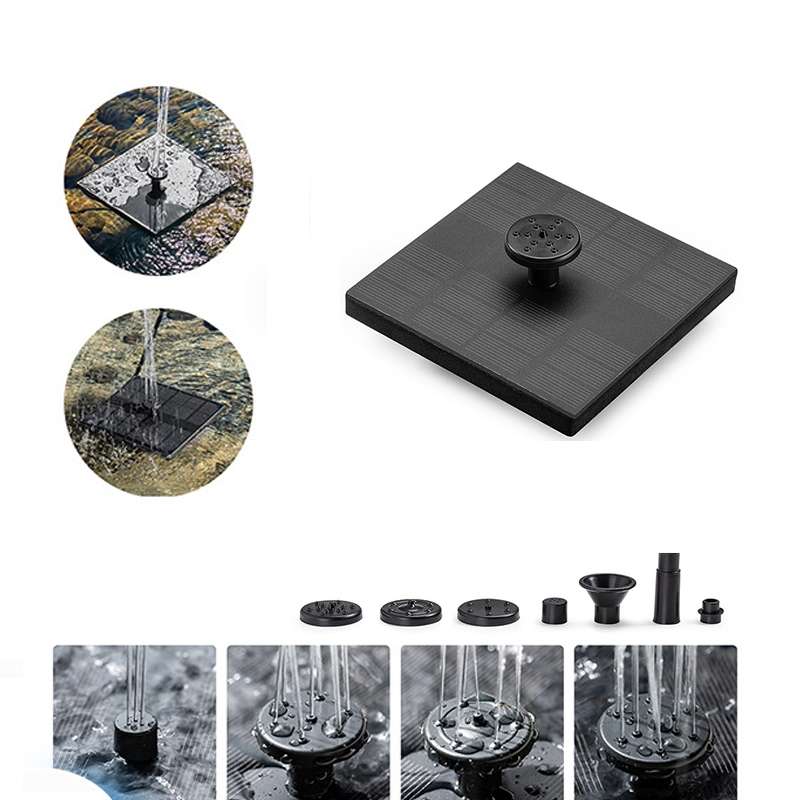

15. The water pump can be connected to various nozzles of different shapes to spray different water types.

Instructions:

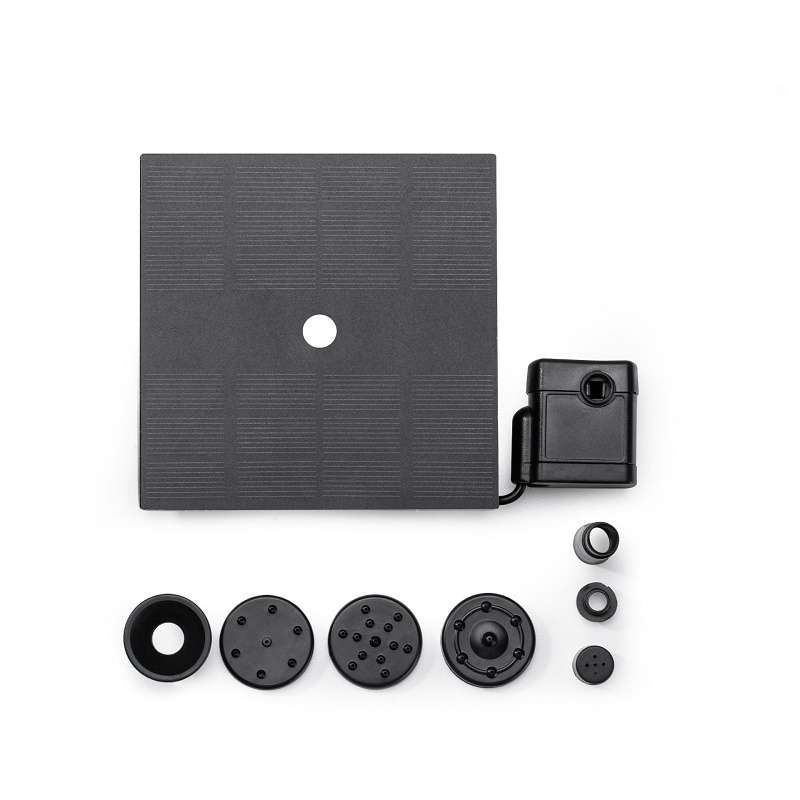

1. Assemble the product according to the schematic diagram
2. Place the solar panel in a suitable place to ensure that the light is not blocked by other objects. When the solar panel receives sufficient light, the water pump will work normally
3. When the water pump is just put into the water, there is air in it, which may affect the water spray effect. After the water pump sprays water normally, connect the nozzle
