Name: 12/24/36/48/72V LED Battery Indicator Gauge for EZGO Club Car Yamaha Golf Cart
SKU: 1139150
Price: 441.91 ZAR
Availability: SoldOut

12/24/36/48/72V LED Battery Indicator Gauge for EZGO Club Car Yamaha Golf Cart

New

30 were available

Indicative market price: R799.00

R441.91

45% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Racer Gadgets10211

99.58 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Product code

1139150

Bob Shop ID

347953248

Package weight: 0.04 kg

Specification:

￢ﾗ?Operating Voltage: 12V/24V/36V/48V/72V

￢ﾗ?Pin Material: Copper

￢ﾗ?Display material: transparent ABS

￢ﾗ?Product size: Approx. 53mm x 32mm x 24mm

￢ﾗ?Packing size: Approx190mm x 113mm x 25mm

￢ﾗ?Screen size: Approx.37mm x 25mm

￢ﾗ?Operating current: 20mA nominal

￢ﾗ?Storage and operating : -20°C to + 85°C

￢ﾗ?Product weight: 45g

￢ﾗ?Waterproof rating: IP65

￢ﾗ?Resolution: 10% per LED segment

￢ﾗ?Tolerance :+/-0.5%

￢ﾗ?Case style :front panel mount .

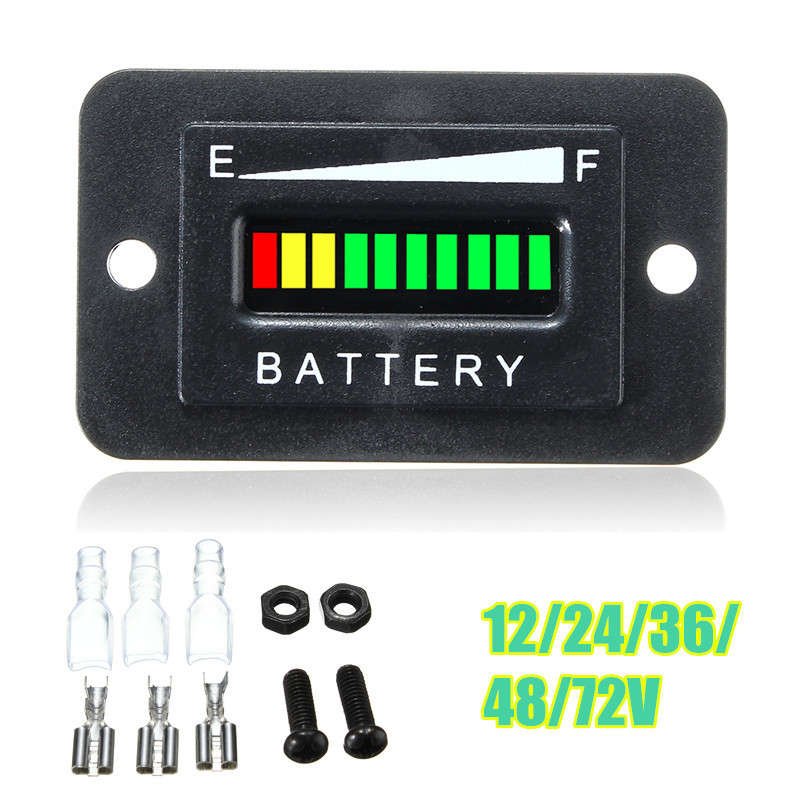

￢ﾗ?LED Indicator Color: 1x red, 2x yellow, 7x green.

Functional description:

￢ﾗ?Scan from ‘F’ to ‘E’ when connected with power.

￢ﾗ?Display‘F’ green when first use.

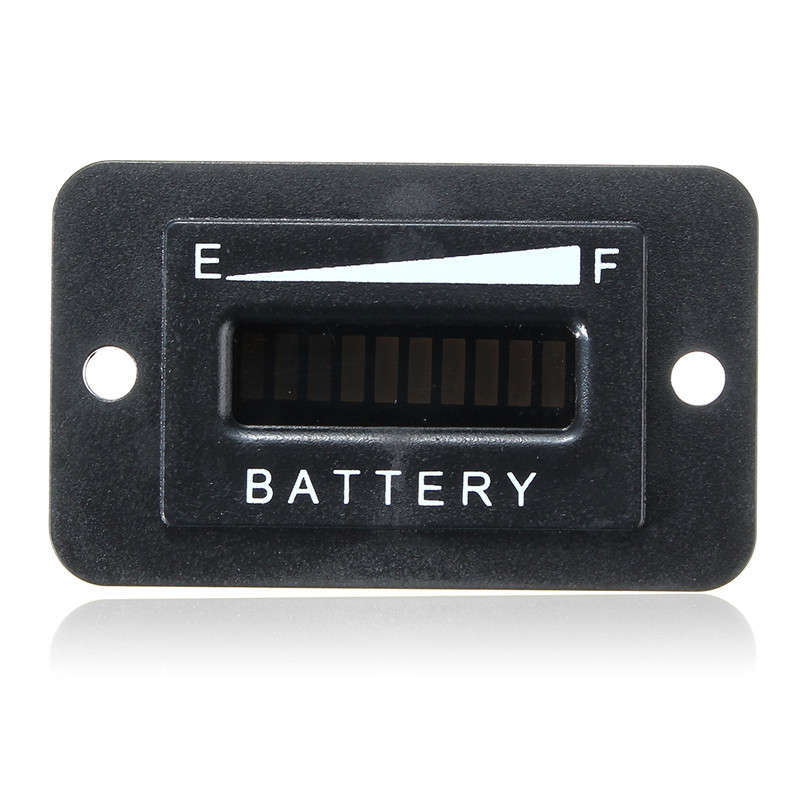

￢ﾗ?Battery charge capacity is indicated using a 10 segment LED bar graph display from full (right -LED segment lit ) to empty (left -LED segment lit ).

￢ﾗ?The LED display will delay 55s when the battery’s capacity is down.

￢ﾗ?The 2nd LED from the left flashes as a warning that the battery has discharged 80%

￢ﾗ?At 90% discharge , LED alternate flashes the left 2 LED’s indicate very low capacity is remaining .

￢ﾗ?Recognition false battery charging signals function : only when battery charging higher than definite voltage and last more than 6 minutes can it be recognized to full battery.

Note:

￢ﾗ?Make sure to apply the proper voltage on the indicator. Failure to apply the proper voltage will cause the indicator not to work normally.

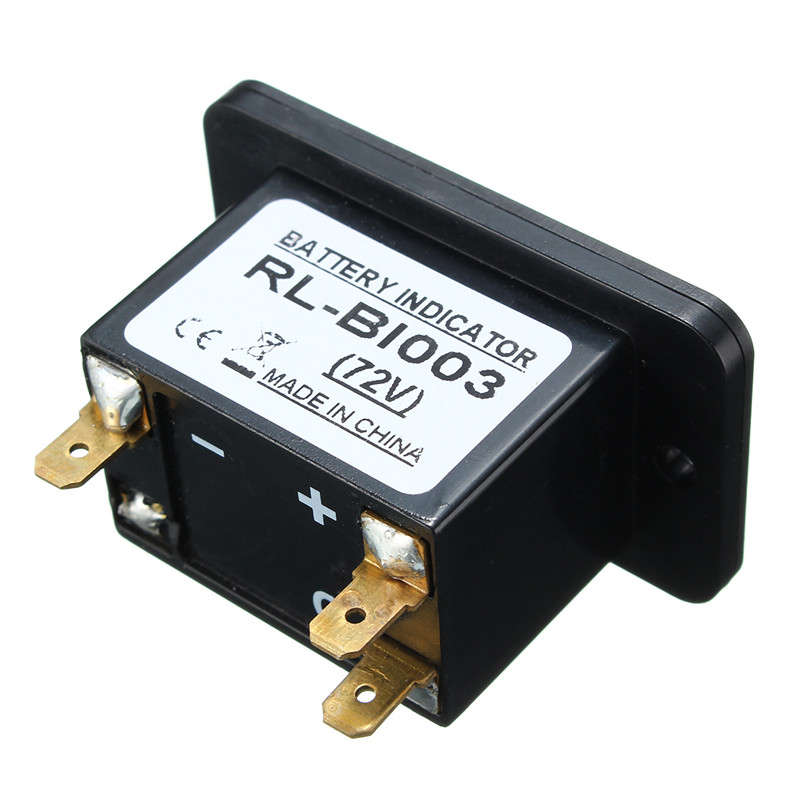

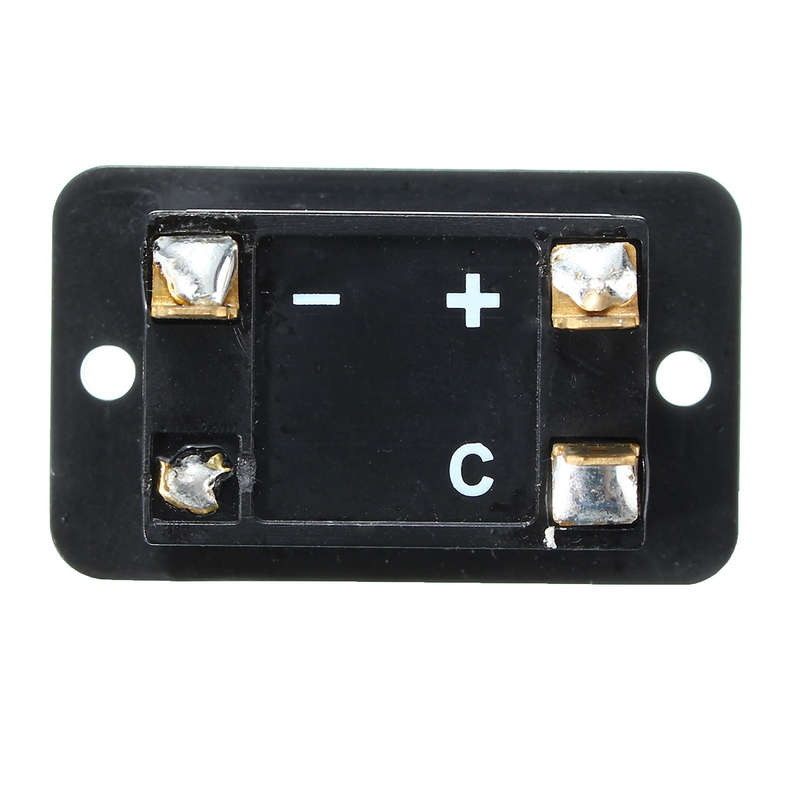

￢ﾗ?Make sure terminal C is connected to positive pole of battery or terminal C is connected to positive pole of battery through key switch. If not, the indicator will scan from full to empty than shut off .

￢ﾗ?Make sure the voltage match with the indicator.if not, red light, yellow light and green light will be on. If the actual voltage is extremely more higher than the rated voltage.The indicator may be ruined.

￢ﾗ?Only applies to the accumulator(Lead-Acid Batteries)

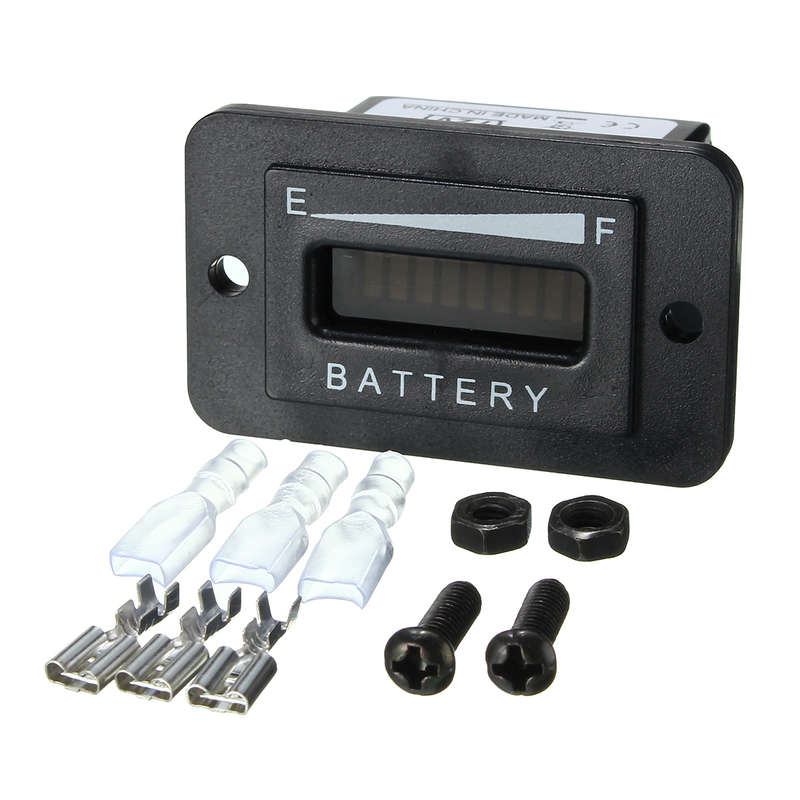

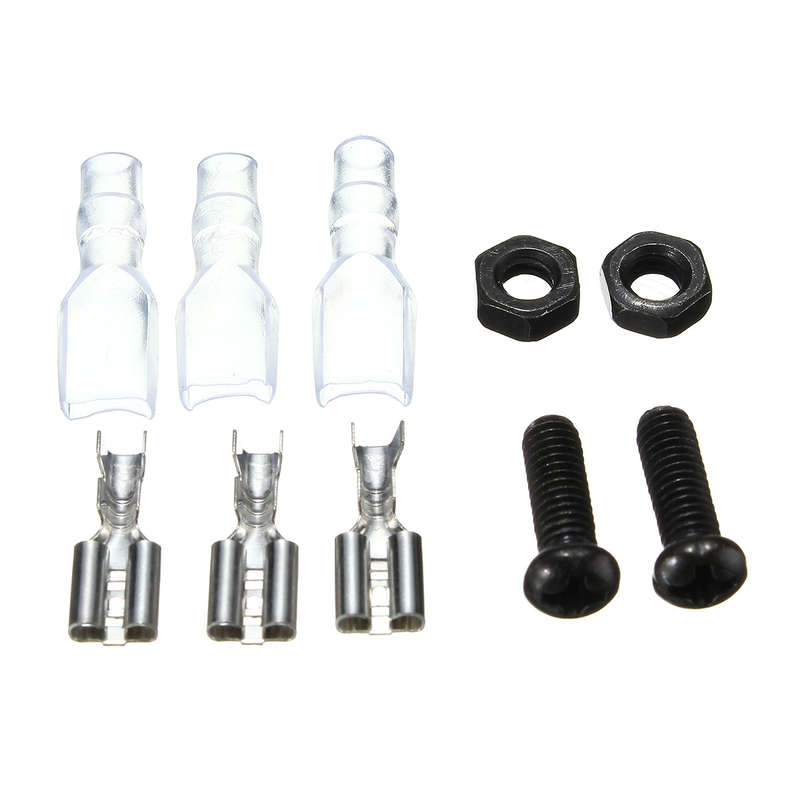

Package Included:

1 x LED Battery Indicator Gauge

1 x Instructions.

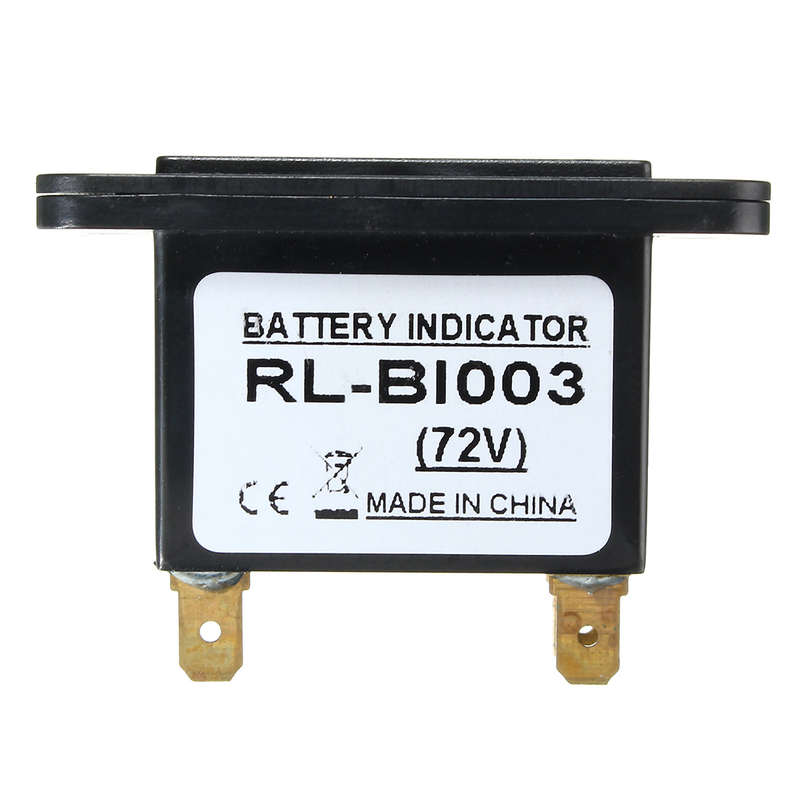

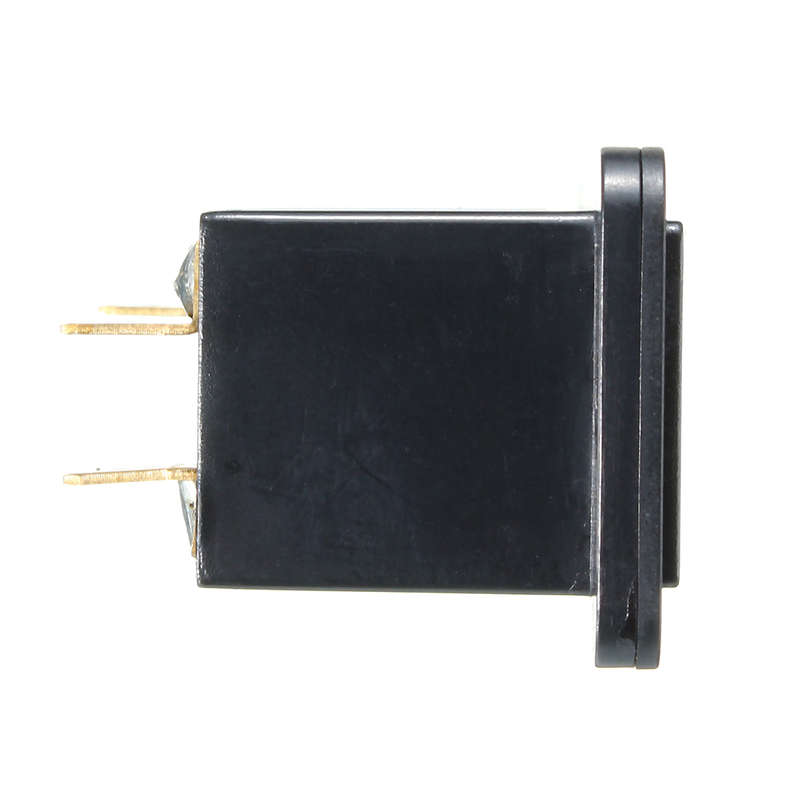

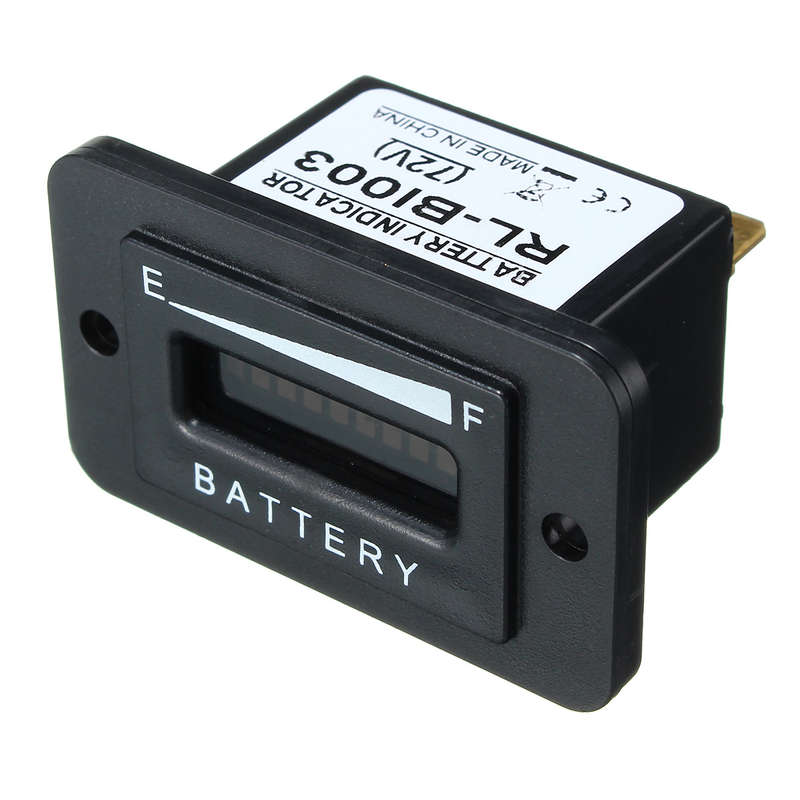

Detail Pictures:
