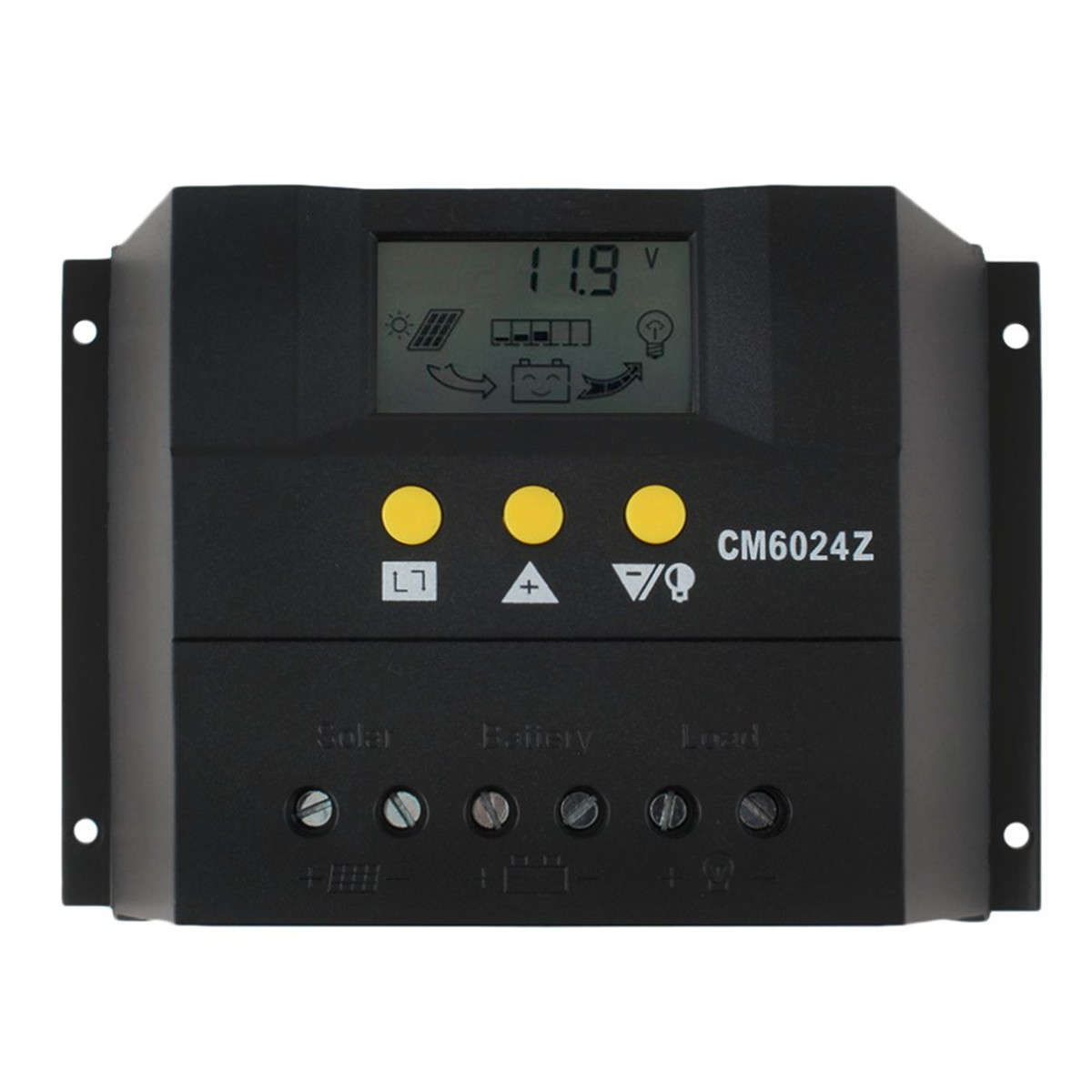

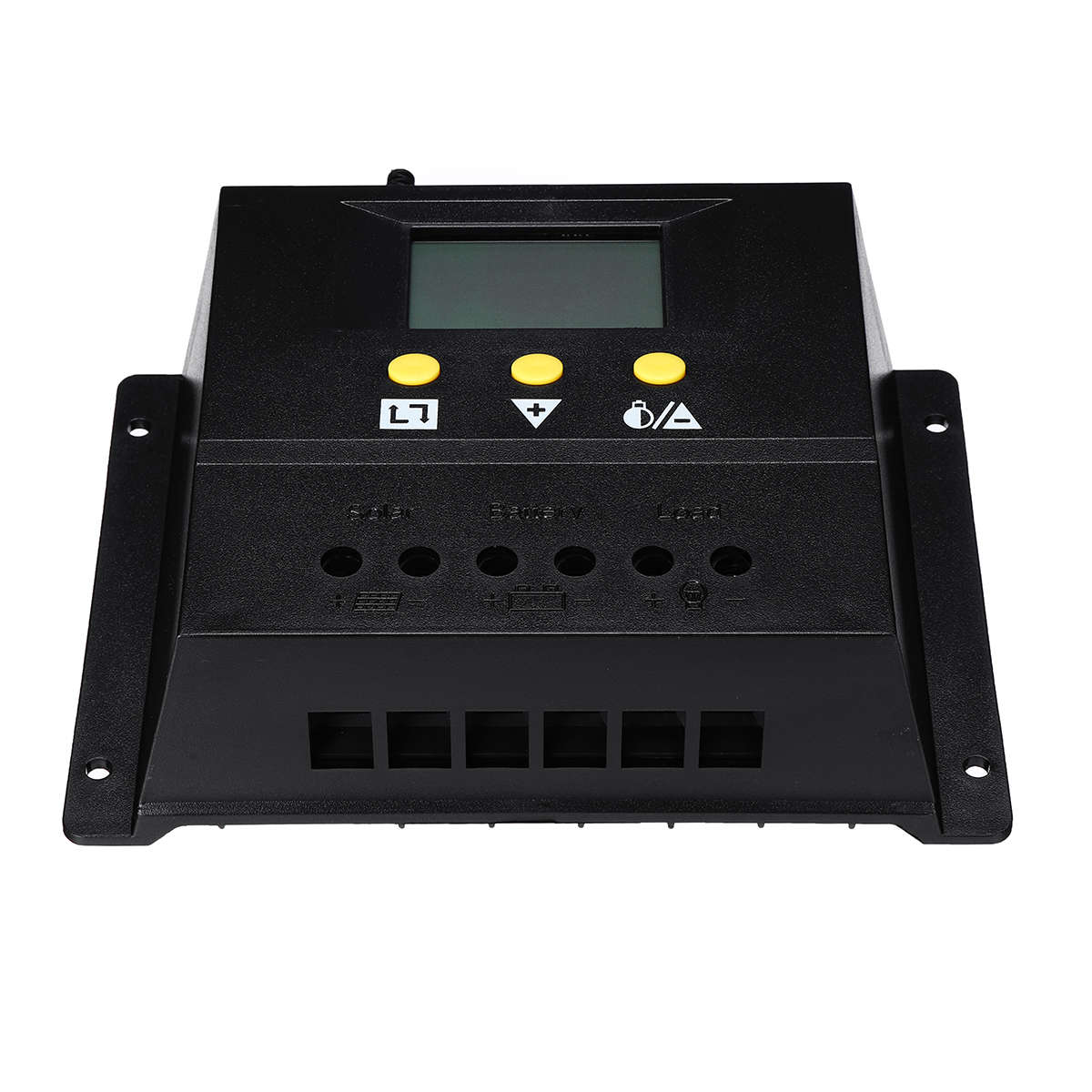

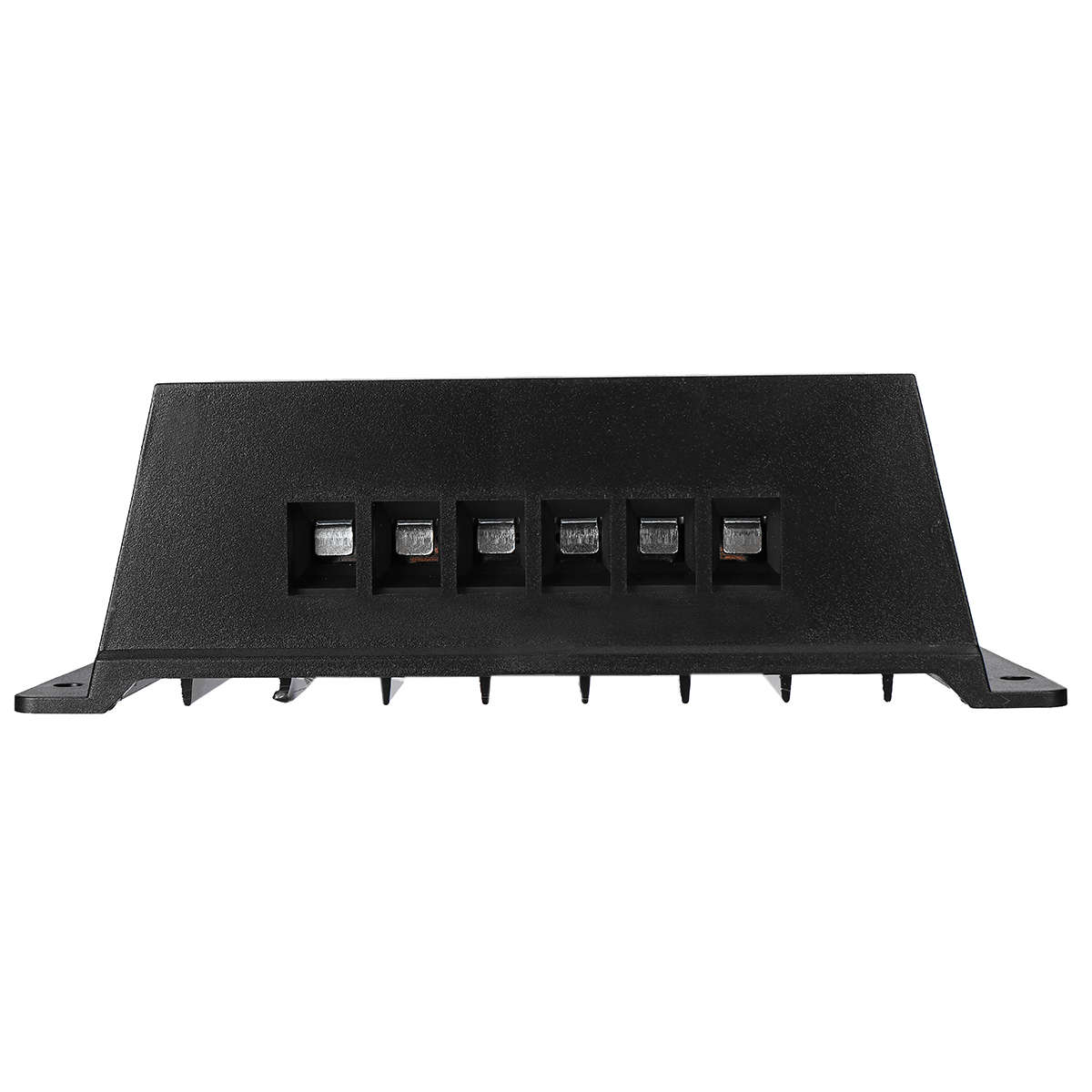

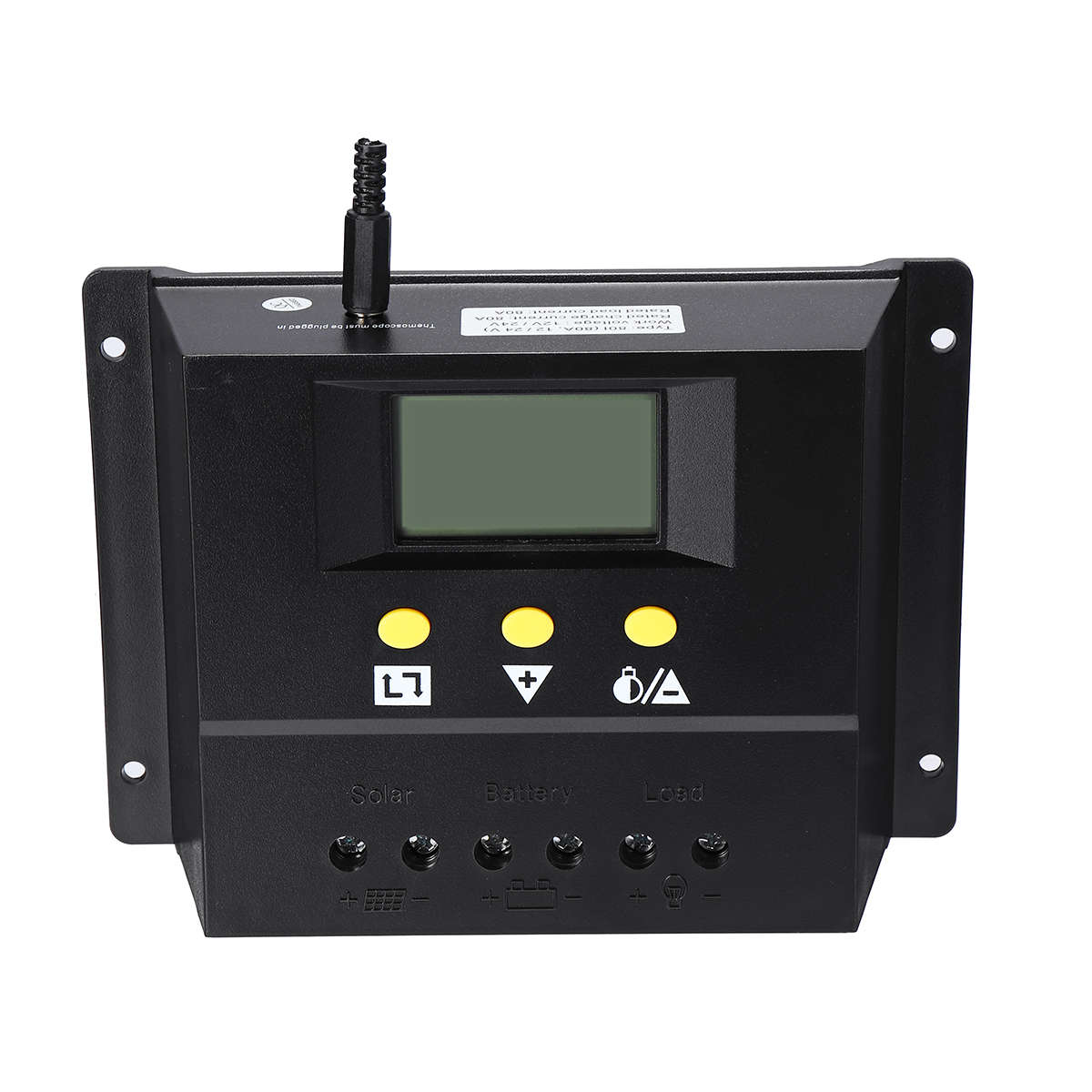

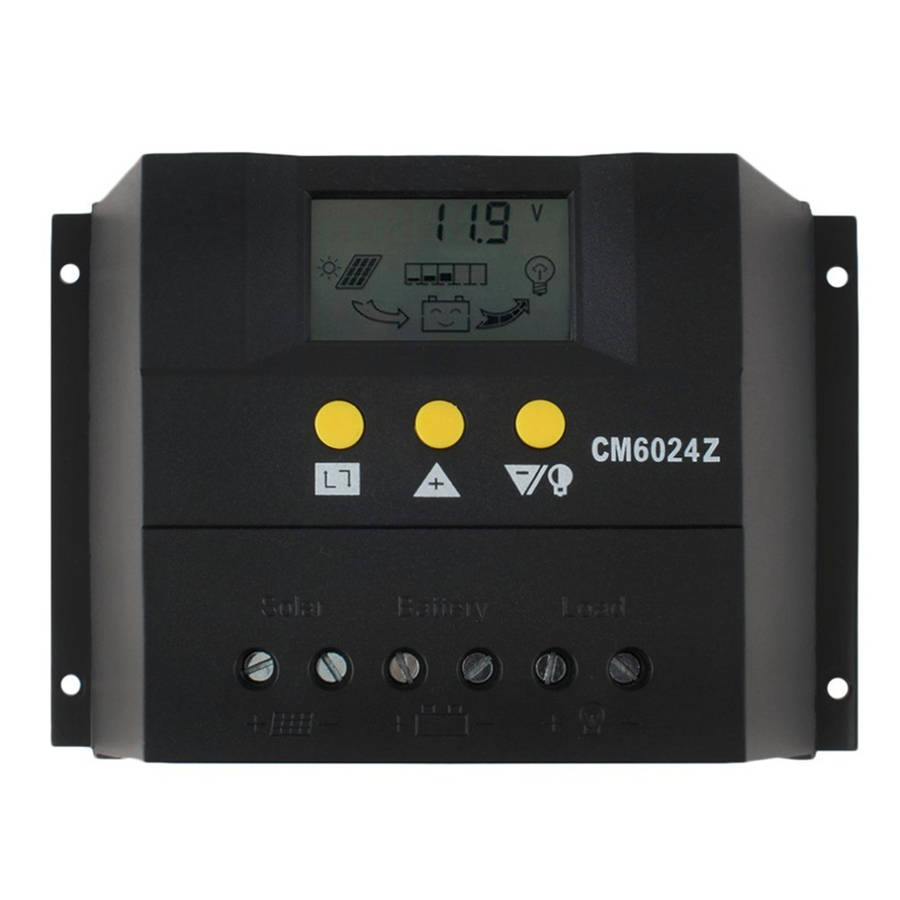

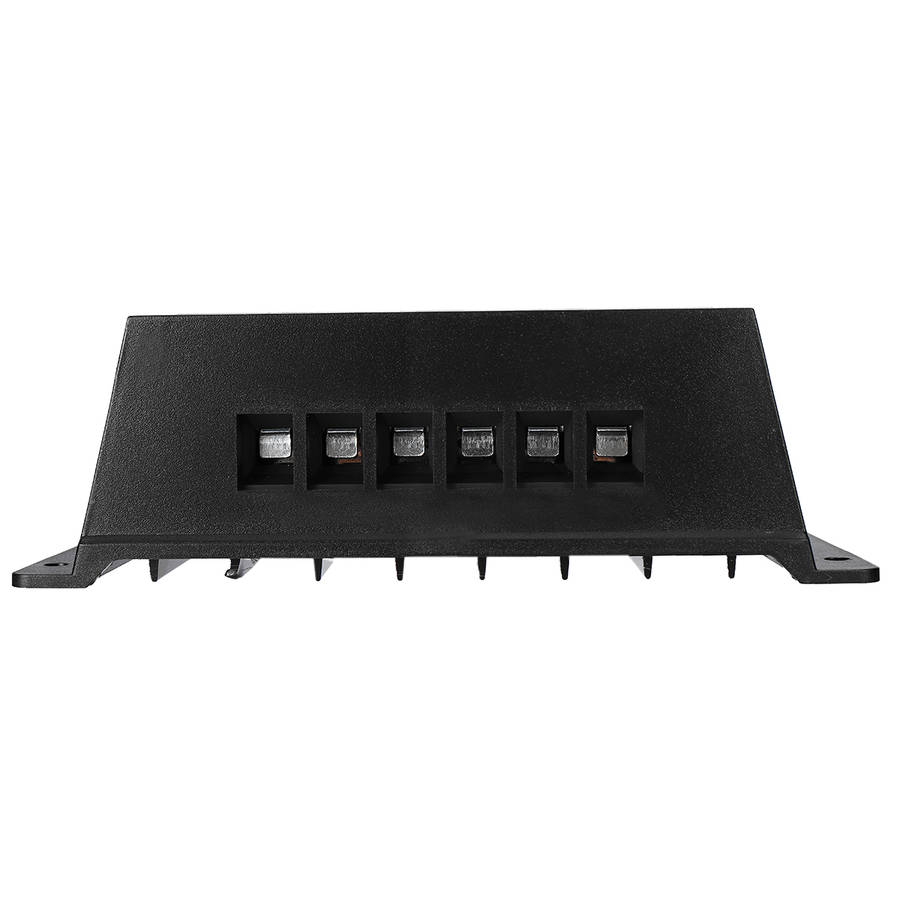

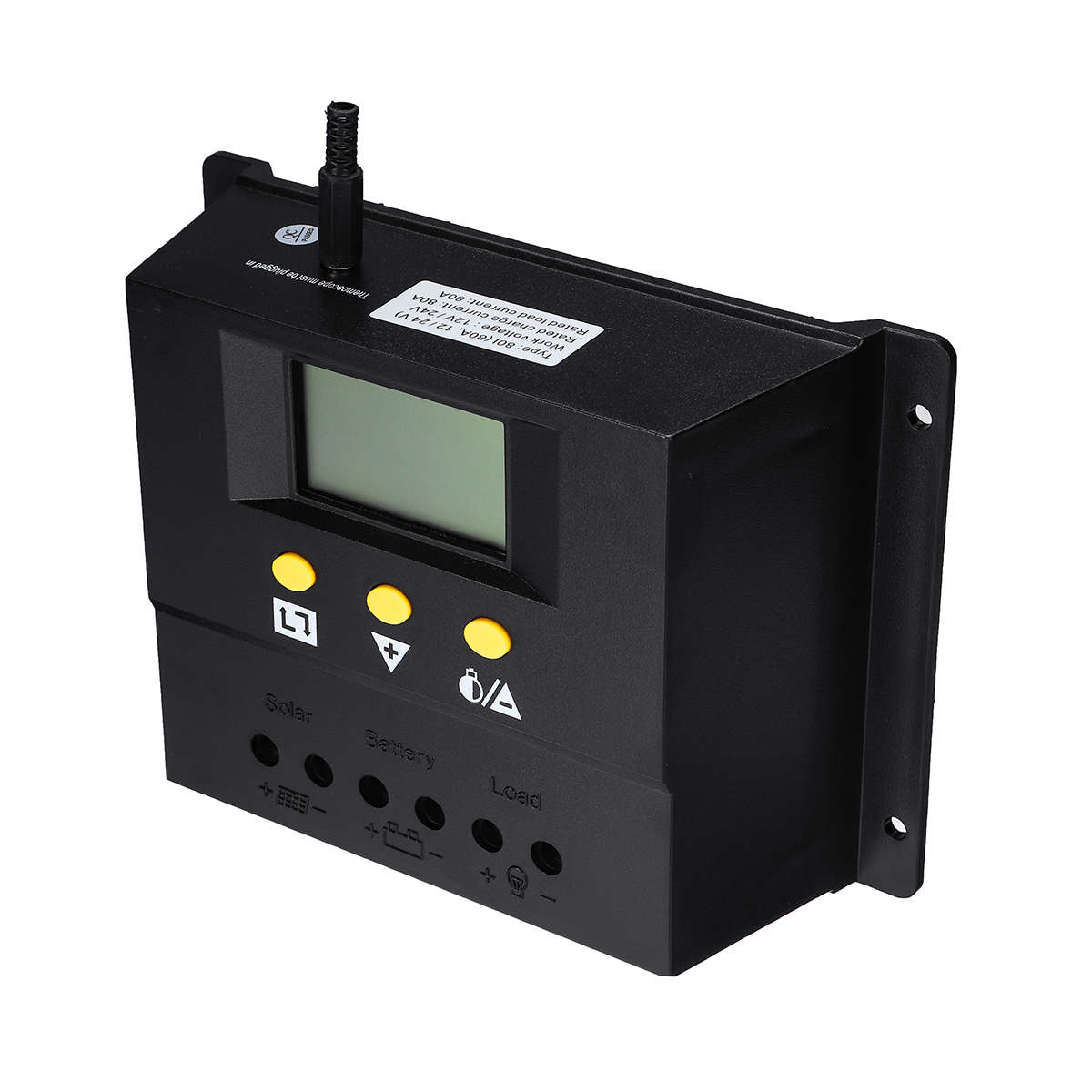

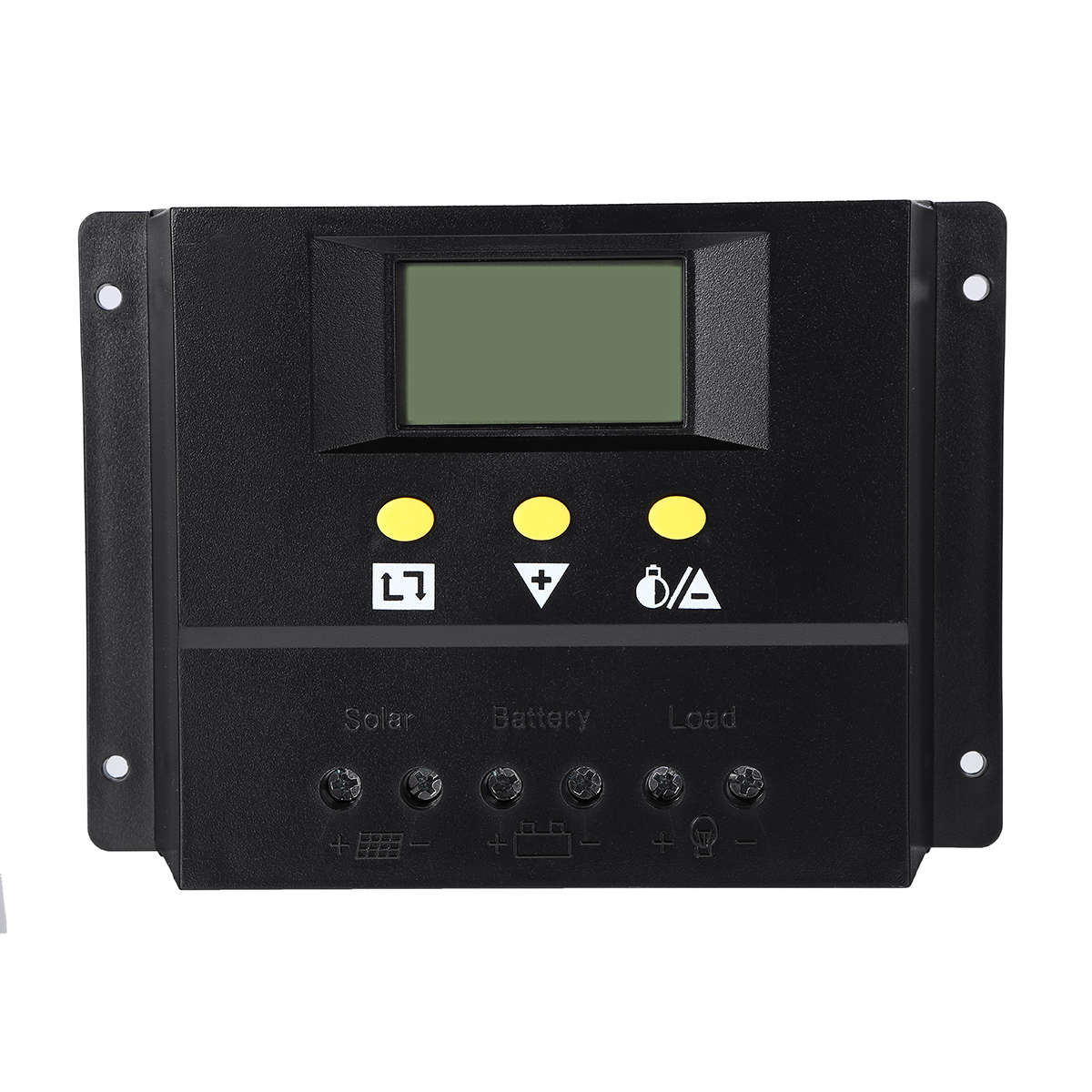

80A Solar charge controller Battery Panel charger regulator
In 12v battery Charging, 960W max solar panel and 22V output
In 24v battery Charging, 1920W max solar panel and 44V output
Specifications:- Rated Working Voltage:12V/24V DC AUTO
- Rated working Current: 80A
- Voltage of Solar Panel: ≦48V
- Float Charging Voltage (Adjustable): 13.8V/27.6V
- Low Voltage Protection (Adjustable): 10.7V/21.4V
- Low Voltage Recovery (Adjustable): 12.5V/25.0V
- No load loss: ≦30mA
- Loop voltage drop:≦200mV
- Temperature compensation: -4mv/℃/cell
- Installable Max Cable: 3# AWG (25mm2)
- Working temperature: -20℃~50℃
- Storage temperature: -30℃~70℃
- Temperature requirement: ≤90%, no condensation
- Color: Black
- Material: ABS(Acrylonitrile Butadiene Styrene)
- Dimensions: Approx. 18.5 x 12.5 x 6cm/7.28 x 4.92 x 2.36''
- Mounting hole spacing: 98 mm×178 mm --Φ5Features:
☆. A kind of intelligent and multi-functional solar charge controller
☆. With customized LCD display screen, makes the operation on the interface more convenient
☆. All the controlling parameters can be reset flexibly to satisfy your different needs
☆. Other features:
√ PWM Charging mode
√ Visual LCD graphic symbol
√ auto switch of system voltage
√ intelligent PWM Charging Mode
√ Auto temperature compensation
√ Adjustable charging & discharging parameter
√ Settable working modes of loads
√ Accumulative function for charging
√ Overloading & short-circuit protection
√ Protection for battery back discharging & battery low voltage
√ Battery reversed protection
√ Delayed auto restart after overloading protectionPackage Included:
- 1 x Solar Charge Controller
- 1 x English User Manual
- 1 x Package Box
