12V24V Car Battery Charger Intelligent Pulse Repair Charger Voltage Automatic Identification 6AH-200AH
Features:
1. Multiple protection
Short circuit protection, Reverse connection protection, Intelligent Recognition, 0 volt start, Saturation indication
2. 12V/24V voltage automatic identification
12V/24V universal. Suitable for battery capacity 6AH-200AH cars, motorcycles, large trucks, dry batteries, water batteries, maintenance-free batteries and lead-acid batteries.
3. Full of self-stop
One-button automatic, the current is 0 when fully charged, no manual care is required.
4. LED indicator
LED work indication, power indication, Reverse connection alarm, voltage indication, float indication
5. Easy to operation

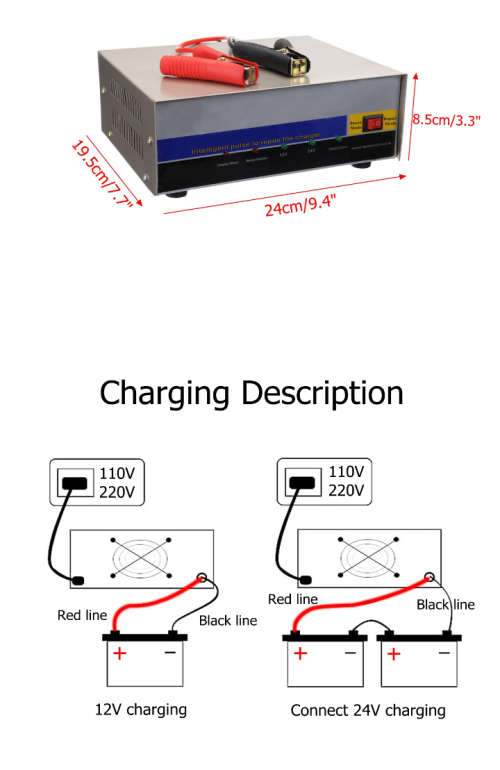

First connect the battery, red clip positive + black clip negative, you can choose a suitable current, plug in the household 220V power supply, you can start charging.
Operation Instructions:
1. Smart charging mode:
When using the smart mode, directly connect the power supply and the battery positive and negative poles, the current will automatically adjust according to the battery needs, charge to a certain voltage and automatically stop charging, easy to use,
2. Repair charging mode:
For the old battery, the smart mode may charge less and the display is full. At this time, use the repair mode to force the charge, charge the battery to heat and then unplug the power, the battery can store more power, pay attention to the repair mode charging will not Automatic stop,
3. Recommended use:
In the winter environment below 0 °C, first use the smart mode to fully charge, and then use the repair mode to charge for half an hour ~ 1 hour, you can make the battery performance better.
Specification:

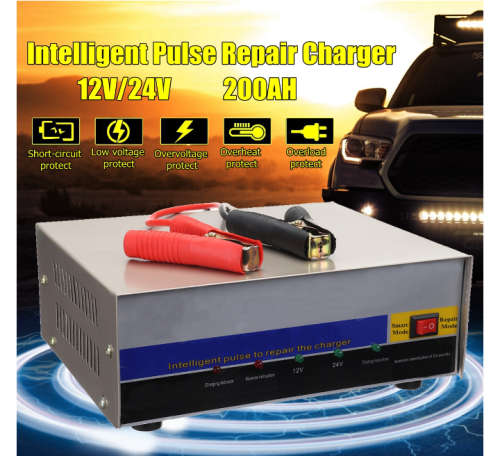

Name: Intelligent Pulse Repair Charger
Charging current: 6A/15A
Charging range: 6AH-200AH
Input voltage: 110V/220V
Output voltage: 12V/24V±2V
Input line length: 80cm
Output line length: 50cm
Material: Aluminum alloy
Size: 24x19.5x8.5cm/9.4x7.7x3.3inch
Color:Silver
Package Content:
1 x 12V/24V Intelligent Pulse Repair Charger
Note:
1.Please allow minor deviation due to manual measurement.
2.The colors may be a little difference for the different monitor.
