12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB) 12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB) 12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB) 12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB) 12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB) 12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB) 12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB)
12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB) 12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB) 12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB) 12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB)
12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB)
+3

12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB)

10 available / new
Indicative market price: R558.00
R279.00
50% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
techietoys541
97.31 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
International
Product code
7755386
Bob Shop ID
628402348

12/24V Relay Module Cycle Trigger Delay Power-Off Delay Timing Circuit Switch(PCB)


TBD0602106501A

1. Working voltage: 6-30V power supply

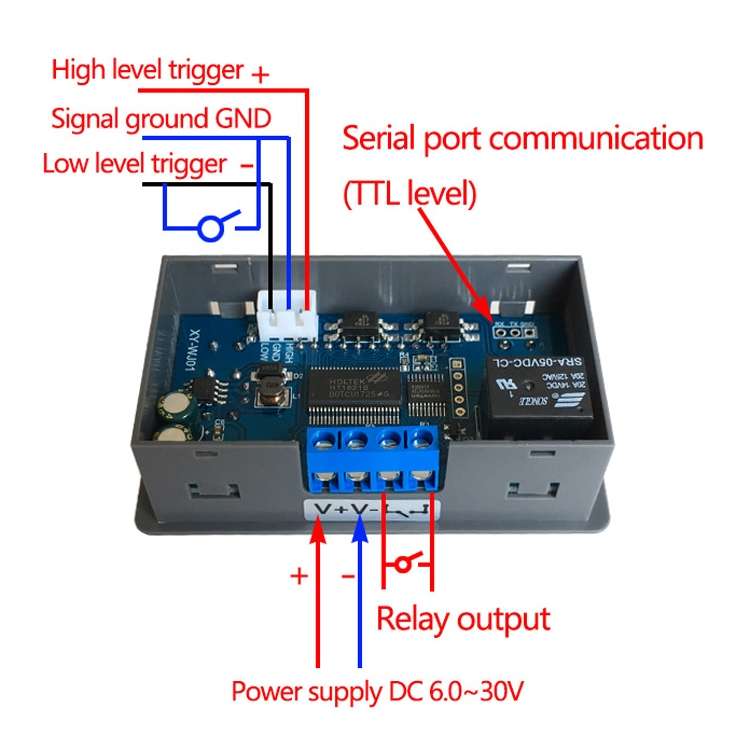

2. Trigger signal source: high level trigger (3.0V-24V), low level trigger (0.0V-0.2V), switch control (passive switch)

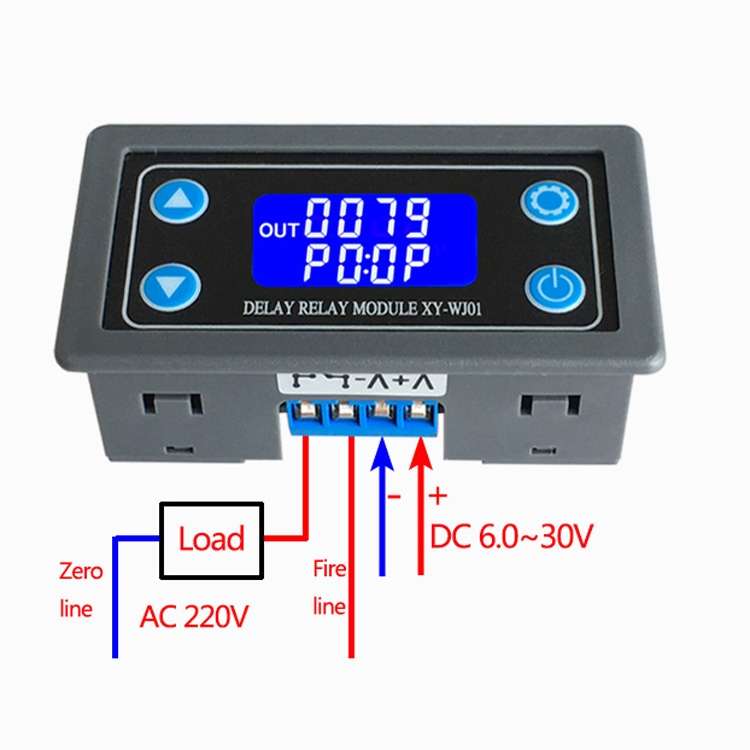

3. Output capability: it can control equipment within DC 30V10A or AC 220V5A
4. Quiescent current: 15mA
5. Working current: 50mA
6. With optocoupler isolation, enhance anti-interference ability, industrial-grade circuit board, set parameters to be remembered after power off
7. Timing range: 0.01s-9999min
8. Weight: about 45g
9. Size: about 7.1x3.9x2.5cm

Features:

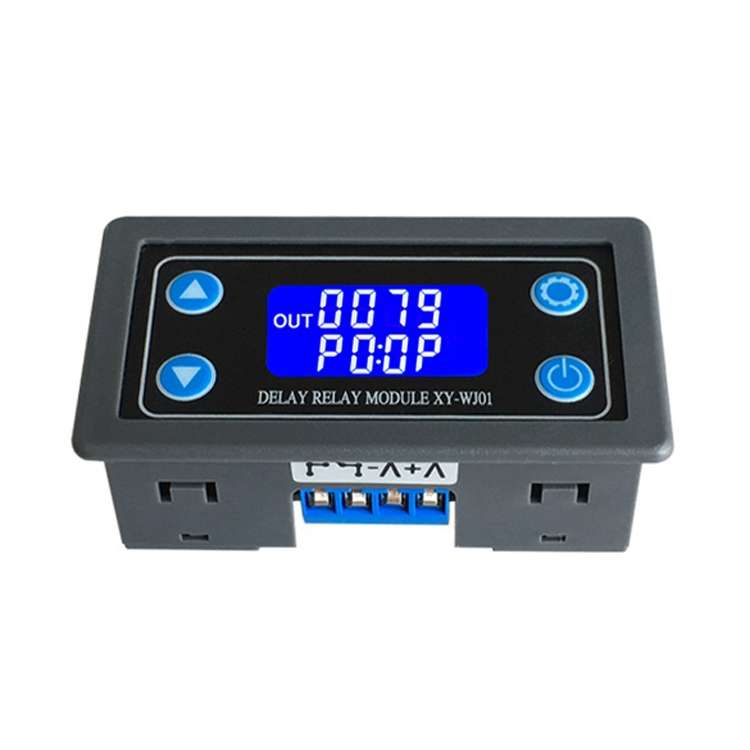

1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical
2. Support button trigger control, high and low level trigger, switch control, suitable for most occasions
3. Wide voltage power supply (6-30V), easy to use
4. Support UART data upload and parameter setting
5. One-key pause function, with reverse connection protection, reverse connection will not burn
6. Added sleep mode. after enabling, if there is no operation for about 5 minutes, the LCD backlight will be automatically turned off, and any key can be woken up.
7. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately
8. All setting parameters are automatically saved after power off
