12-50V 30A 500W Adjustable Speed Controller DC Brush Motor Speed PWM Controller
New
R245.48
Closed
6 Feb 19 09:46
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Customer ratings:
Product code
1122362
Bob Shop ID
393783999
Description:

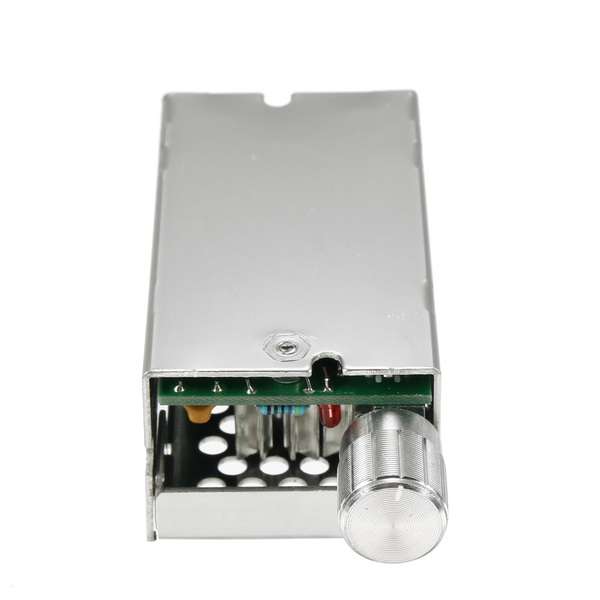

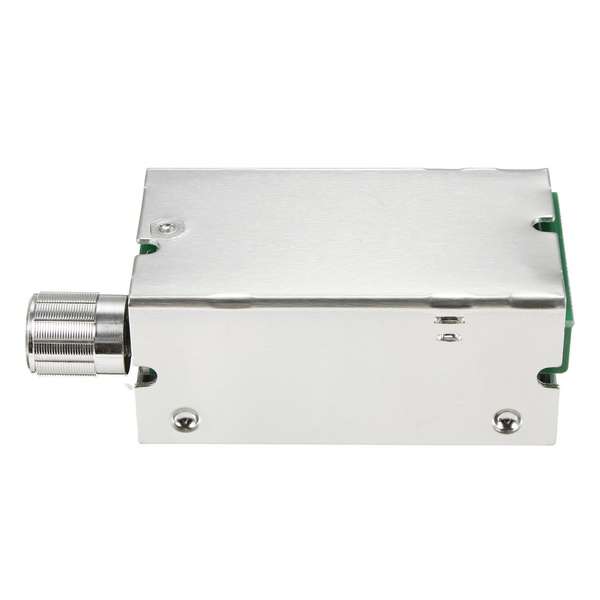

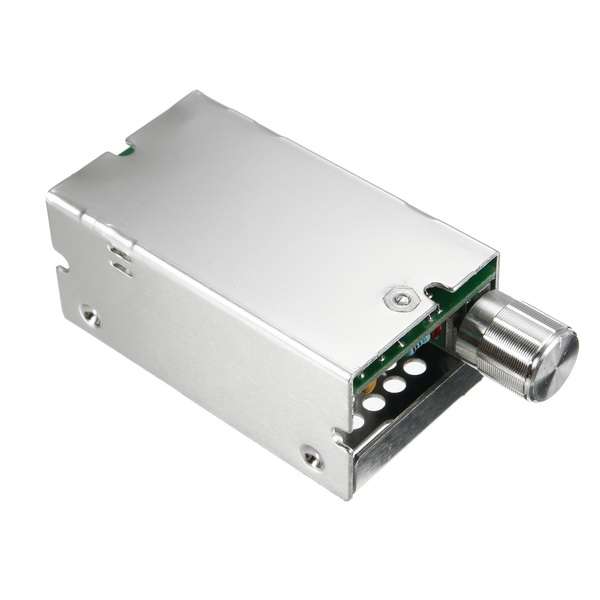

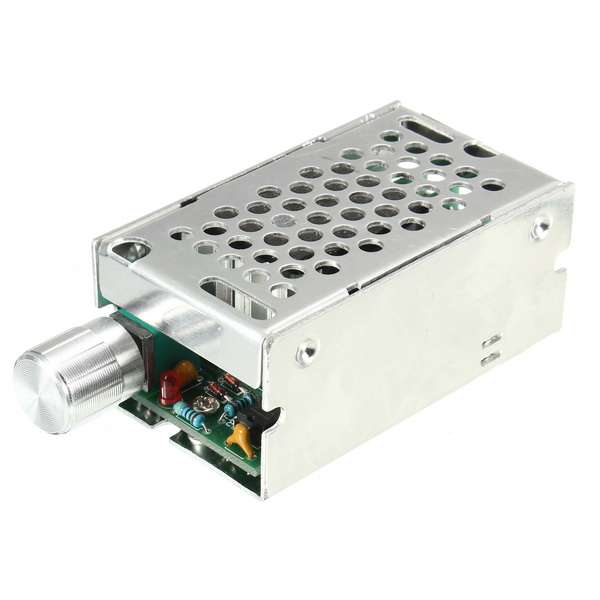

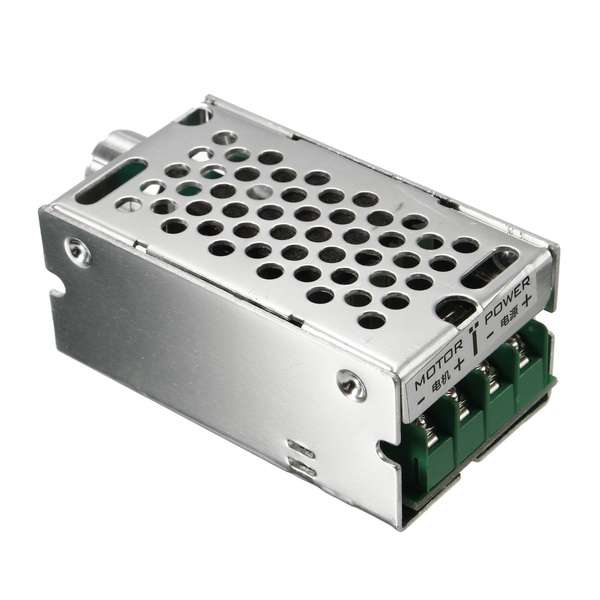

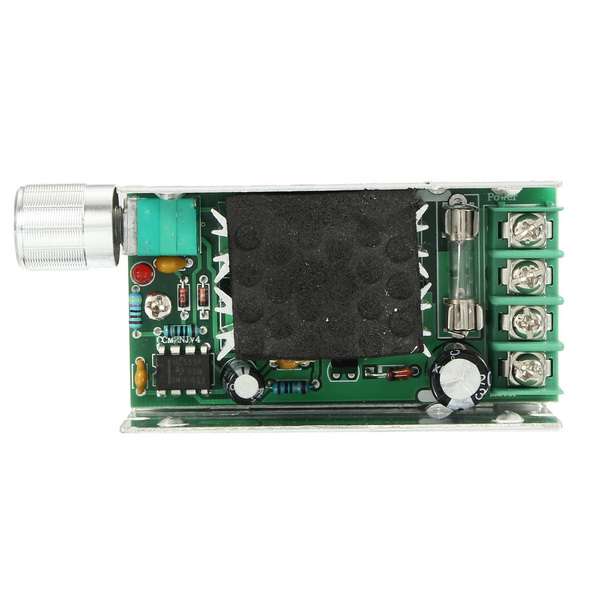

12-50V 30A 500W Adjustable Speed Controller DC Brush Motor Speed PWM Controller Adjuster with Control Switch
It's a PWM speed controller so it enables you to control the speed of these little DC brush motors smoothly.
It's ideal for applications like fans, etc. providing nice adjustment of motor speed instead of the more usual "High-Low" switching
Specifications:
Operating Voltage: DC 12-50V
Rated Current: 30A
Control Power: Max. 500W
Speed Control Range: 0% -100%
PWM Frequency: 21KHz
Item Size: 70 * 40 * 30mm
Quantity: 1pc
Features:
Wide range of operating voltage: 12V 250W, 24V 350W, ... 48V 500W
A good speed controller for DC brush motors.

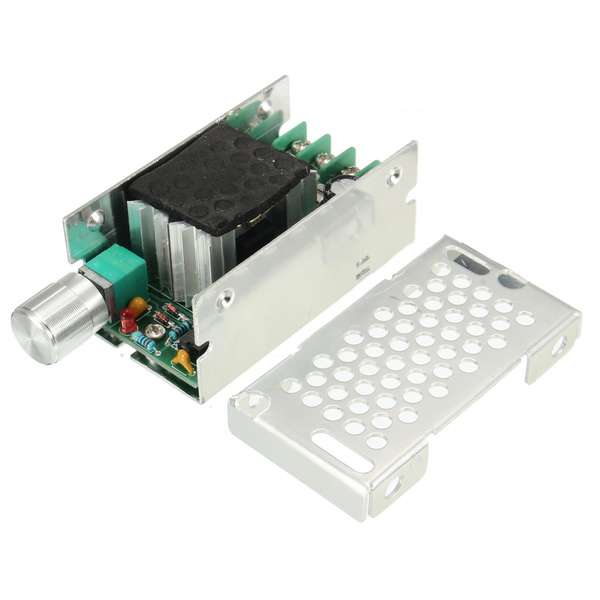

High-frequency capacitance, power tube and 10A fuse are used in the module.

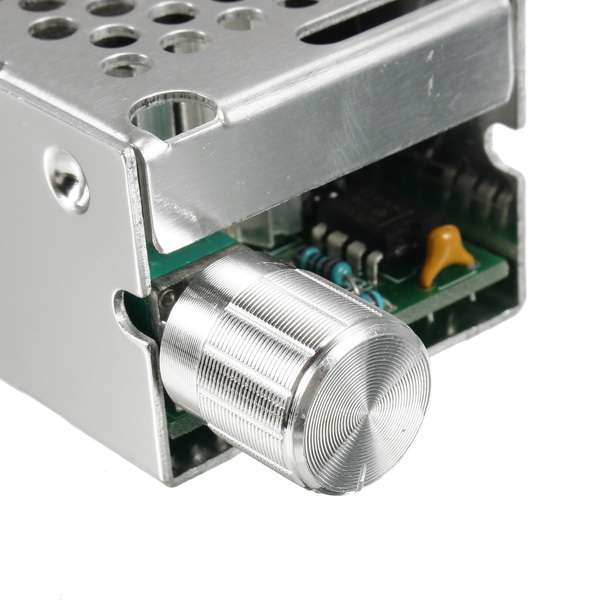

Adopts sealed and high-quality potentiometer with switch, stable performance.
Metal case creates better durability; high efficiency and low noise.
Suitable for applications like fans, etc. providing nice adjustment of motor speed.
Warning:
1. This speed controller is applicable to DC brush motor, not the DC brushless motor; it can't be used as voltage regulator.
2. It should be connected with DC voltage, don't connect with AC voltage(e.g. 220V AC).
3. It can not use the 48V battery, battery power supply (48V storage electrical voltage of more than 50V.)

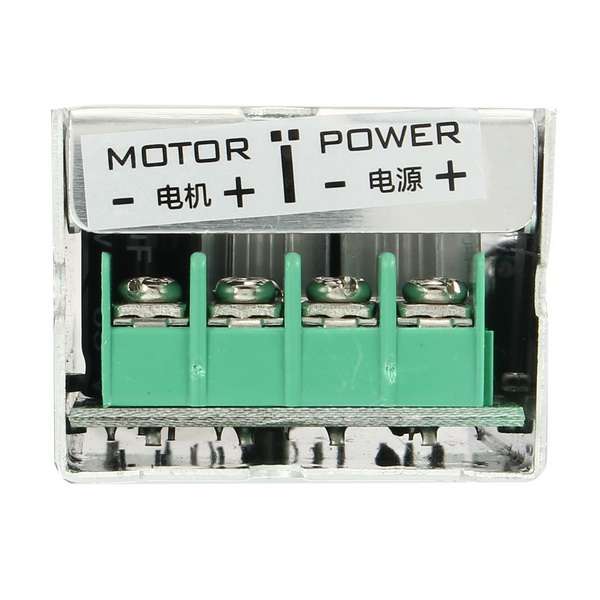

4. The anode and the cathode of DC power cannot be connected reversely, otherwise the controller will be damaged.
5. When running direction is inconsistent with your desire, you can change it by adjusting the linear order.
6. Potentiometer switch can change the output duty cycle of controller and then change the motor speed.
Package Includes:
1 * DC Motor Speed Controller
