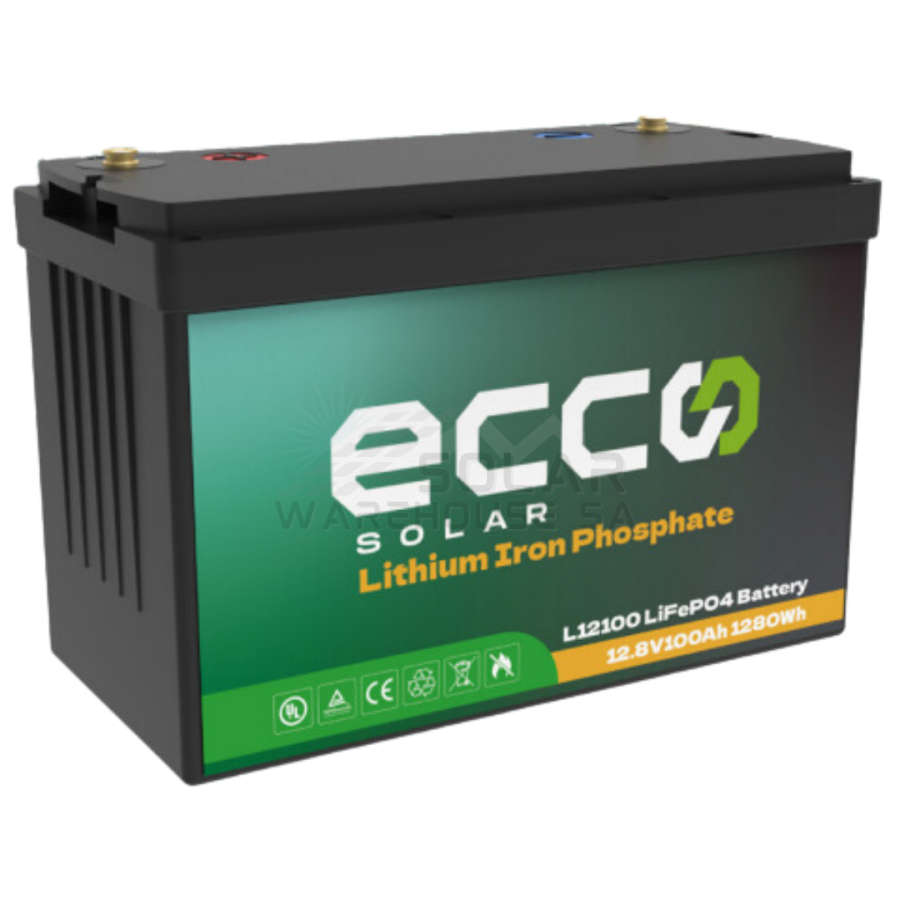

12.8v 100ah 1.28Kwh Ecco Lithium Battery

12.8v 100ah 1.28Kwh Ecco Lithium Battery

Longer Cycle Life: Provides up to 20 times longer cycle life and five times longer
float/calendar life than lead acid, helping to minimize replacement costs and
reduce total cost of ownership.
Lighter Weight: Approximately 40% of the weight of same capacity lead acid
battery. Easy replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate,
while maintaining high energy capacity; Supports 4 parallel or series groups.
Superior Safety: Eliminates the risk of explosion or combustion due to high
impact, overcharging or short circuit situation with safe lithium iron phosphate
chemistry.

It can parallel up to 4 units or series up to 4 units

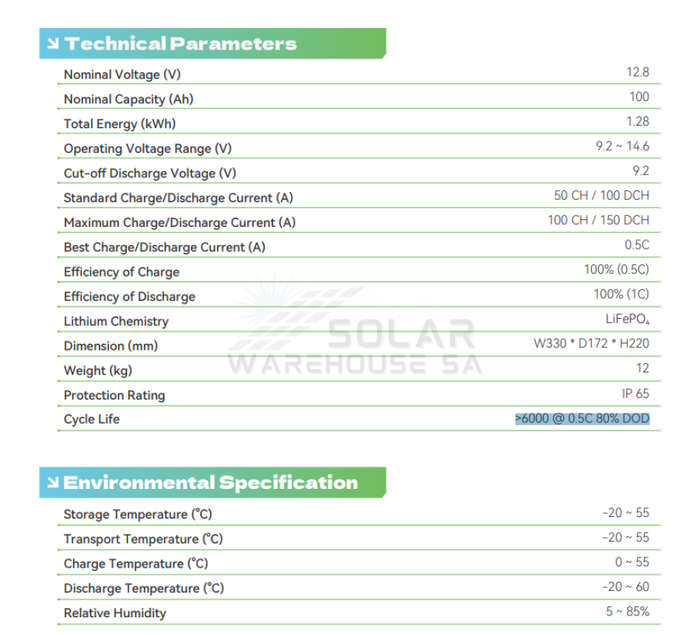

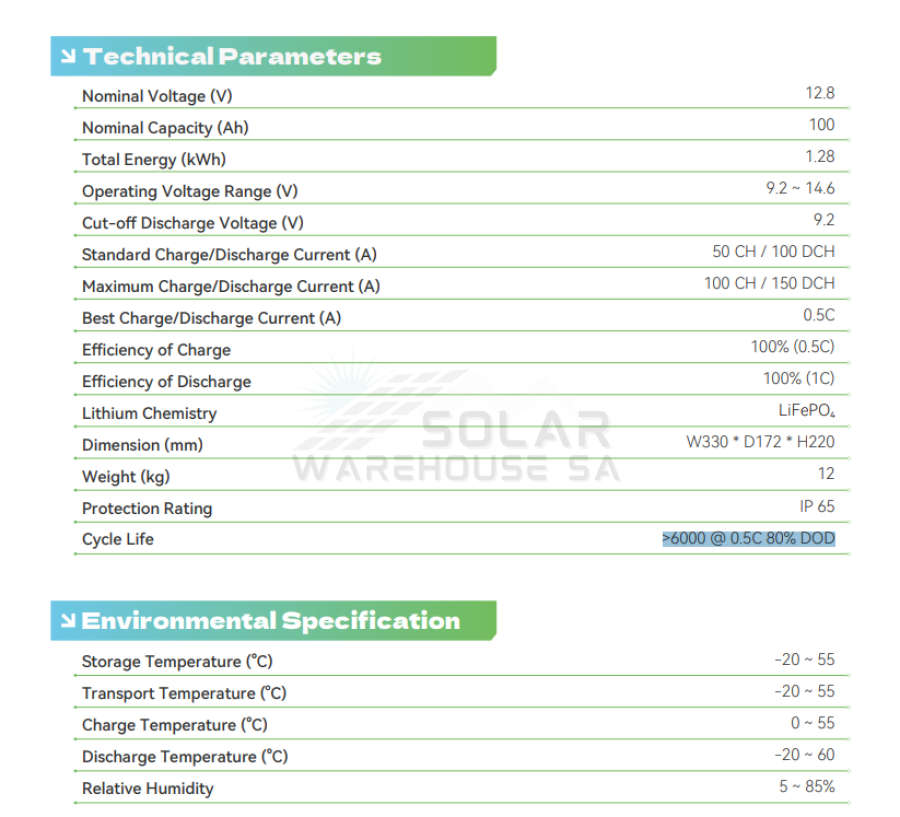

SPECIFICATIONS

Nominal Voltage (V) - 12.8
Nominal Capacity (Ah) - 100
Total Energy (kWh) - 1.28
Operating Voltage Range (V) - 9.2 ~ 14.6
Cut-off Discharge Voltage (V) - 9.2
Standard Charge/Discharge Current (A) - 50 CH / 100 DCH
Maximum Charge/Discharge Current (A) - 100 CH / 150 DCH
Best Charge/Discharge Current (A)  - 0.5C
Efficiency of Charge - 100% (0.5C)
Efficiency of Discharge - 100% (1C)
Lithium Chemistry - LiFePO
Dimension (mm) - W330 * D172 * H220
Weight (kg) - 12
Protection Rating - IP 65
Cycle Life - >6000 @ 0.5C 80% DOD

3 Years Warranty

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
