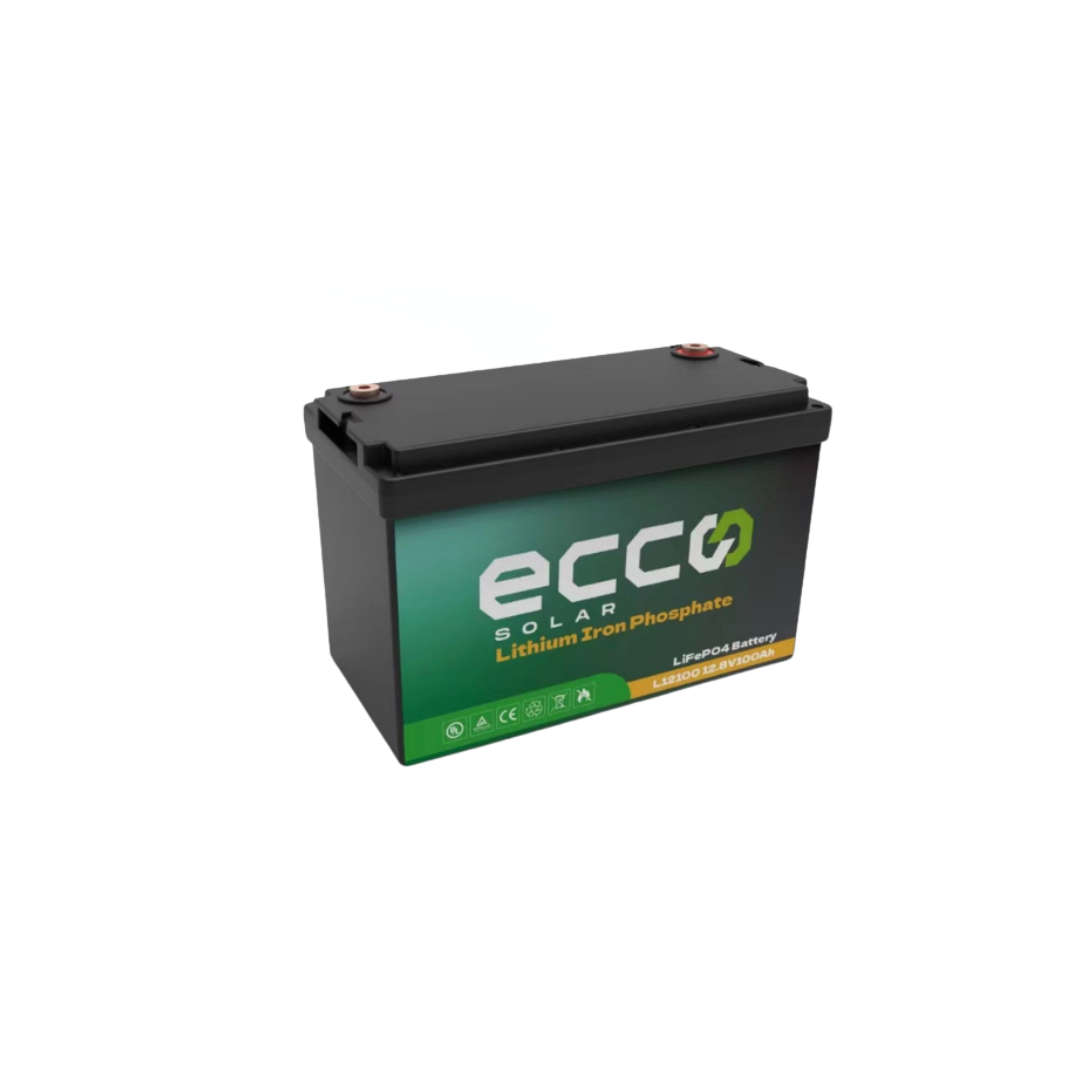

12.8v 100ah 1.28Kwh Ecco Lithium Battery
Longer Cycle Life: Offers up to 20 times longer cycle life
and five times longer float/calendar life than lead acid
battery, helping to minimize replacement cost and
reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead
acid batteries.
Higher Power: Delivers twice power of lead acid battery,
even high discharge rate, while maintaining high energy
capacity.
Superior Safety: Lithium iron phosphate chemistry
eliminates the risk of explosion or combustion due to
high impact, overcharging or short circuit situation.
It can parallel up to 4 units or series up to 4 units
- Nominal Voltage : 12.8V
- Nominal Capacity : 100Ah
- Nominal Energy : 1280Wh
- Combination Method : 4S
- Cycle Life : 5000 cycles @50%DOD @35
- Months Self Discharge : Months Self Discharge
- Efficiency of Charge : 97%
- Standard Discharge Cut-off Voltage (V) 10.8V
- Recommended Charging Voltage : 14.2V
- Recommended Charging Current : 50A
- Recommended Discharging Current ; 100/150 A
- Weight : 12kg
- Size: 330 x 172 x 220
- IP 65
Notes: When the battery pack is idle for a long time, please keep its power level at about 50%; When the battery pack needs
long-term storage or idleness, it should be recharged every three months, and the power level is maintained at about 50%.
Environment requirements for storage: temperature -20~55, relative humidity 5%~85%. Please keep the battery pack in a dry
and ventilated place, avoid contact with corrosive substances, and keep away from fire and heat sources.
3 Years Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
