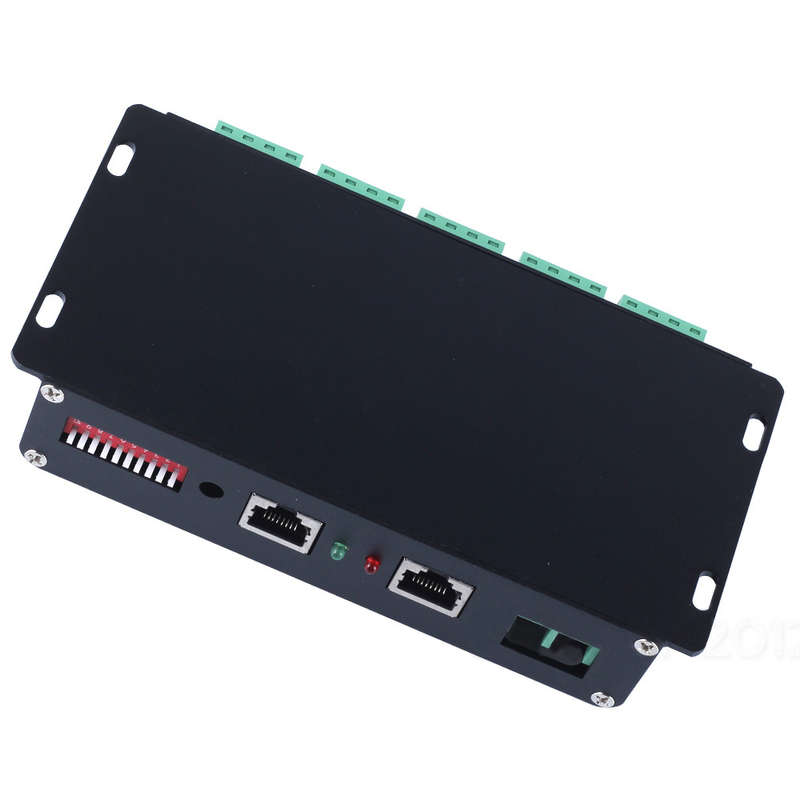

Package weight: 0.35 kgIntroduction:Welcome to use the 12CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 1 ~ 12 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting.
Specifications:Input Power:DC5V-DC24V
Maximum Load Current: 5A/CH×12
Maximum Power Load: 300W(5V)720W (12V);1440W (24V)
Output Gray Level: 256
Input Signal DMX512/1990
Output Signal:12 Channels Constant PWM
Output DMX: 12 Channels
DMX512 Socket Standard RJ45;

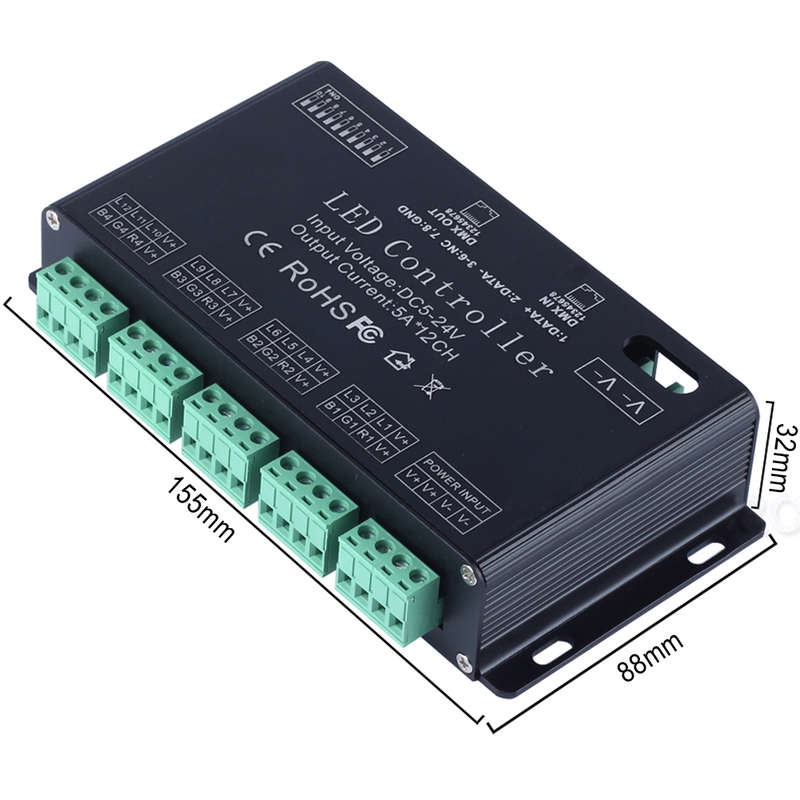

Size:L155*W88*H32MM

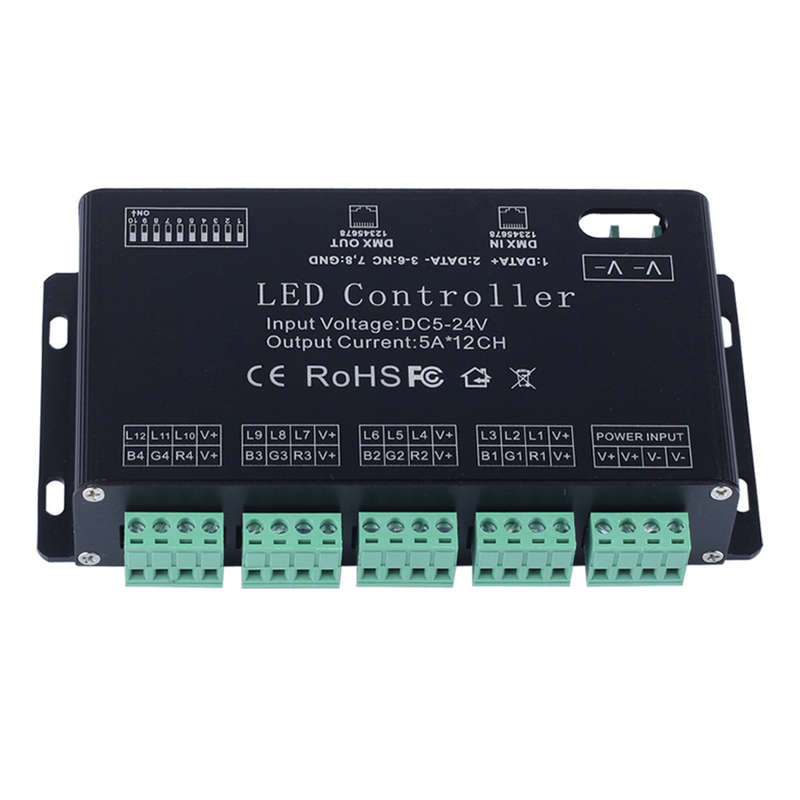

Basic functions:*There are 12 output channels, can connect with single or RGB lamps
*0-100% dimming output, each channel 256 gray levels
*International standard DMX512 input protocol, address code set by DIP switches
*Wide voltage DC input DC5V ~ DC24V
*Each occupied by 12 DMX address
Package Included:1 X LED DMX512 Controller
1 X English User Manual
Connection Diagram:
The signal line connection diagram:

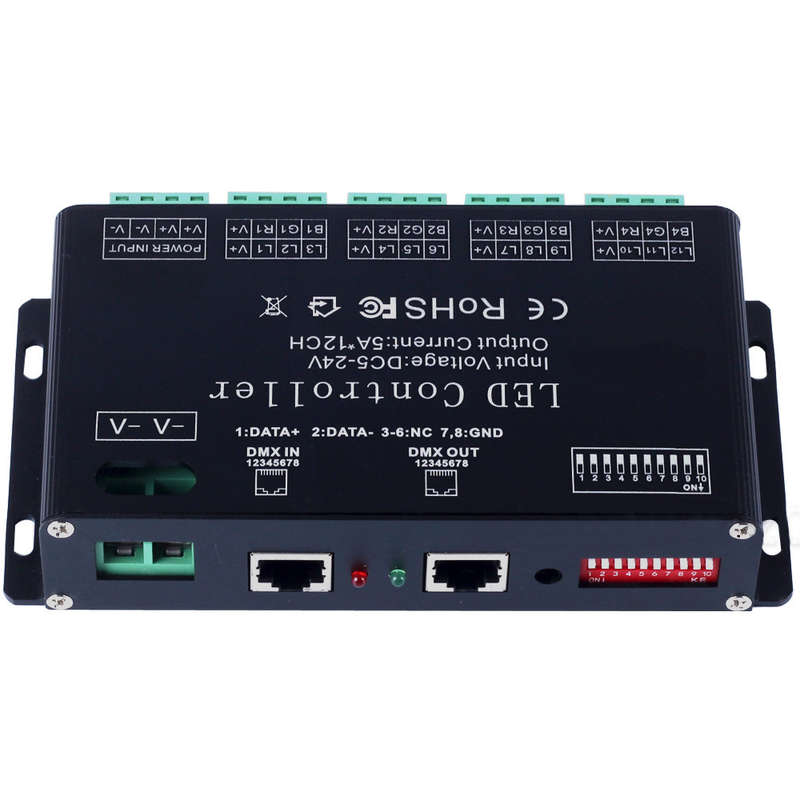

1 : DATA+ 2: DATA- 3-6: Empty 7-8:GND
The decoder set the address bit by coding switch, of which 1-9 is for setting the start address of the Binary numeric code switch of DMX512, the first one is the lowest position, the ninth one is the highest Bit of address code can be set to 512.
DMX512 start address code is the sum of switches 1-9, at the same time turn downside of the code switch (ON set to "1"), then the value of the bit can be gotten; coding switch up (set to "0"), the value of the bit is 0.
Example 1:As the following Schematic 1, DMX512 start address is set to 38,encoding the No. 6,3,2 position on switch dial to "1", others set to "0",then the sum of the switch 1-9 code value is 32 + 4 + 2,that is the DMX512 start address 38
Schematic 1
Example 2:As the schematic 2, DMX512 start address is set to 388, encoding the no. 2,3,6,8 switch dial to "1", others set to "0",then the sum of the switch 1-8 code value is 4 + 128 + 256 = 388,that is the DMX512 start address 388.
Schematic 2
Operation instruction for the automatic effect
Note: It will be Automatic operation mode when the No. 10 switch is turned down.Effect choice (button switch No.1 to No.4):
1, Push No.1: Automatic cycling. 2, Push No. 2: Seven-color gradual cycle changing.
3. Push No.1 &2: RGB Fade in and out 4. Push No.3: Severn color jumping
5. Push No.1 & 3: RGB jumping. 6. Push No.2 & 3: Single color fade
7. Push No. 1 & 2 & 3:Single color left scan 8. Push No.4: Single color right scan
9. Push No.1 & 4: Single color left pile up 10: Push No.2 & 4: Single color right pile up
11. Push No.1 & 2 & 3: Single color left and right scan 12. Push No.3 & 4: Single color left and right pile up
13. Push No.1 & 3 & 4: single color red &nbs
