12 Terminals 4 Positions Rotary Cam Changeover Switch

20 available / new

R666.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641100508

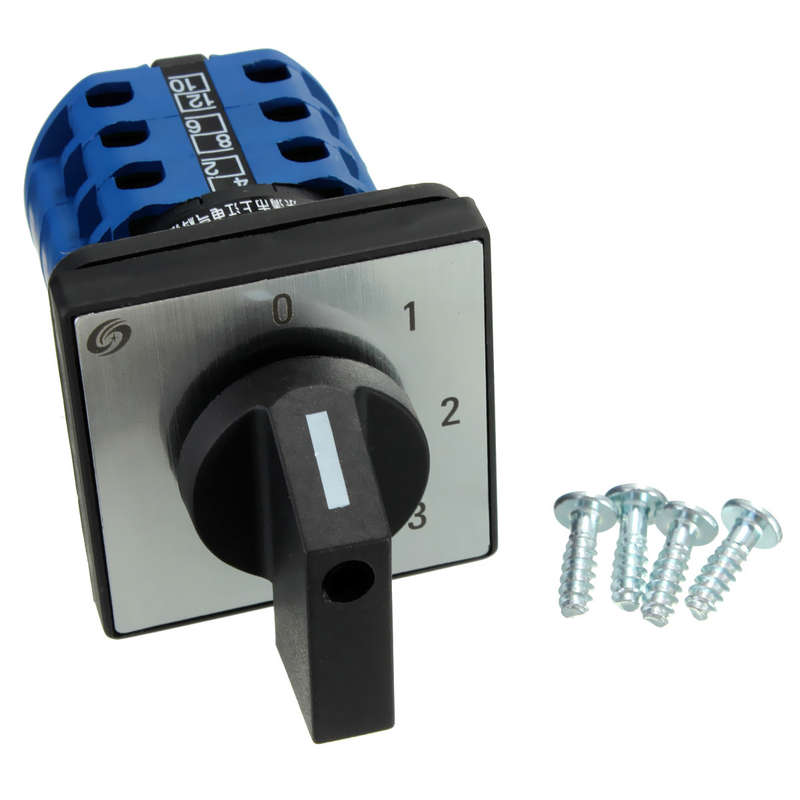

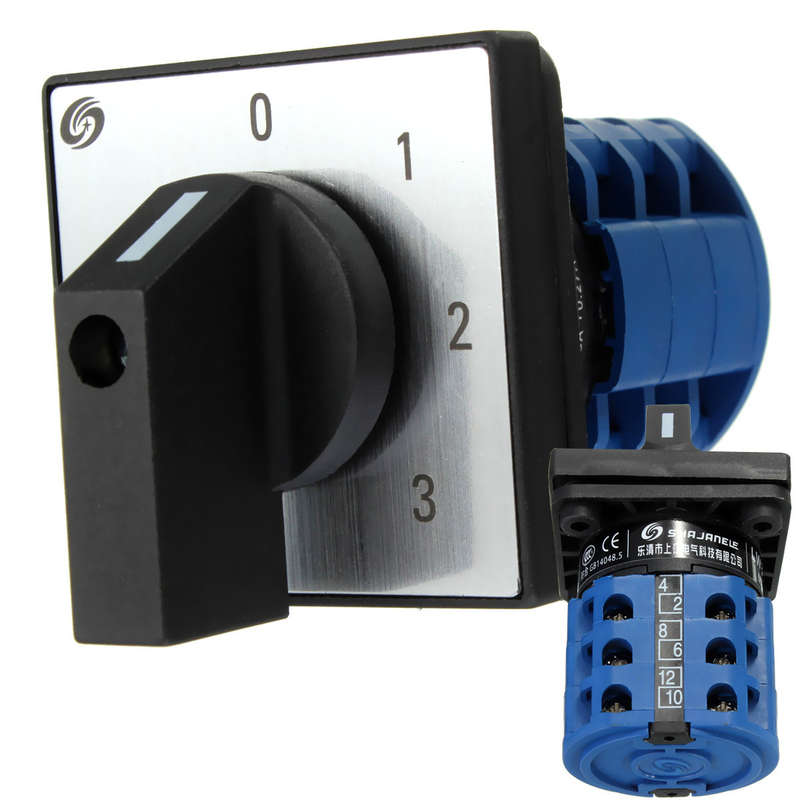

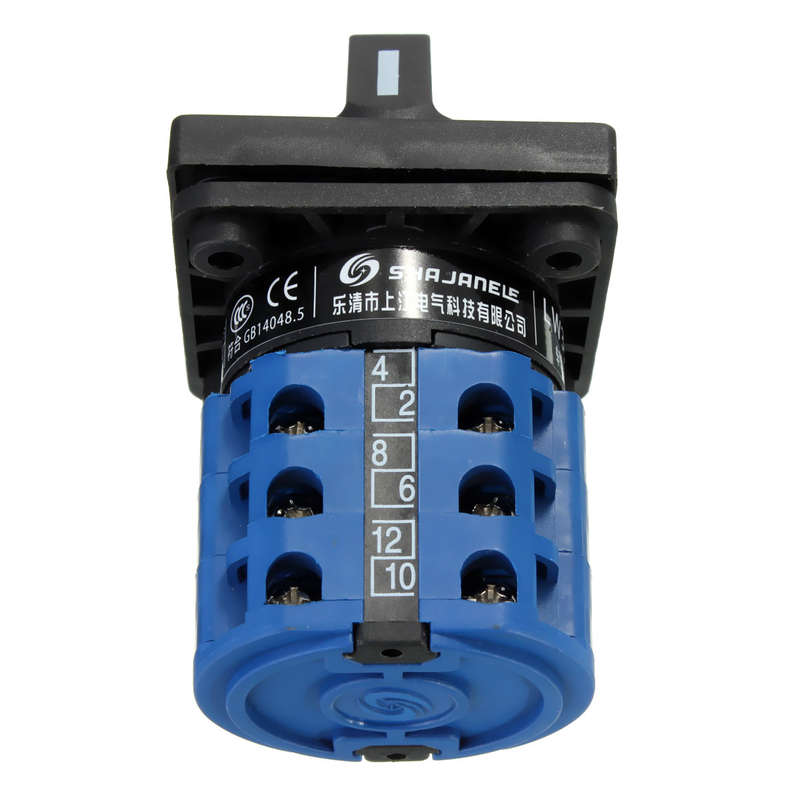

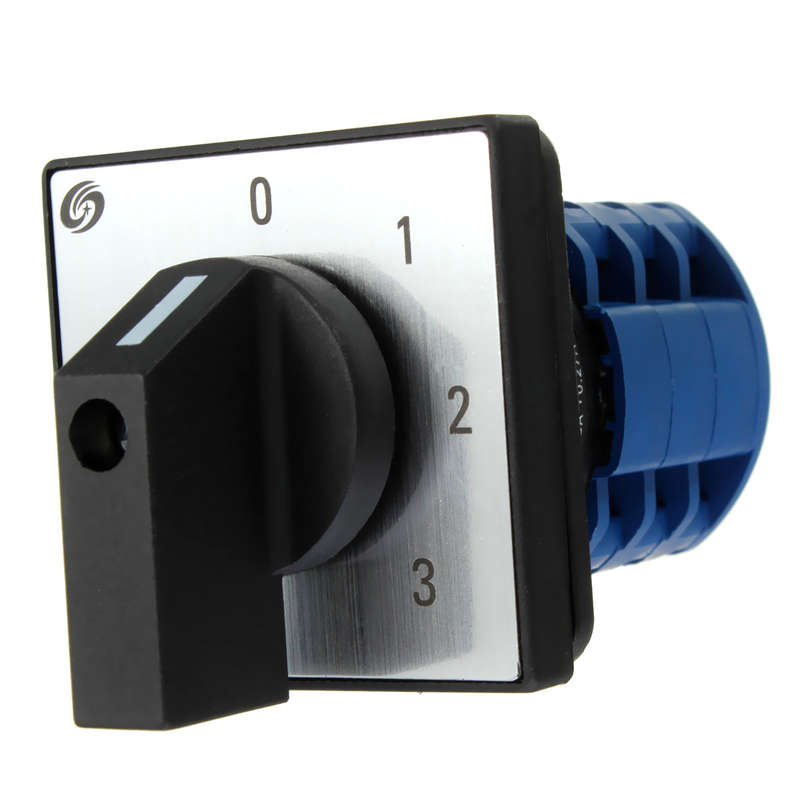

660V 20A 12 Terminals 4 Positions Rotary Cam Changeover Switch

Specifications:
Color:Sliver,black and blue
Model: LW28-20
Position : 4
Terminals : 12
Voltage:660V
Current:20A
Material : Plastic
Size:Square side length 4.7cm

Usage:
LW28 series universal conversion switch is mainly used in the electric circuit of AC 50Hz,rated voltage within 380V,DC voltage within 220V and rated current up to 160A.It is used to control and transform the connected or broke circuit in a infrequently manual operation situation.With a wide range of usage,instead of variety switch,can be as a circuit control switch, test equipment switch,motor control switch and the main control switch,etc...

Working conditions:
aThe ambient air temperature is not more than +40 C, and the average temperature within the 24h is no more than +35 C.
aThe lower limit of ambient air temperature is no more than -5 C.
aThe altitude of the installation location is no more than 2000m.
aWhen the maximum temperature is +40 C, the relative humidity of the air is not more than 50%.(Allowed to have a higher relative humidity at a lower temperature, for example, 20 C, 90%. )

Package Included:
1*changeover switch
