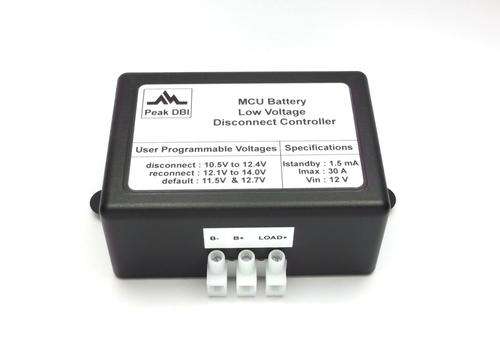

12 volt low voltage cut-out

New

5 were available

Indicative market price: R800.00

R300.00

63% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

echinacea13

100.00 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Manufacturer Buyer pays shipping to and from seller for repairs.

Get it now, pay later

Condition

New

Location

South Africa

Bob Shop ID

225128158

About the cutout

Install this device between a battery and its load and it will automatically protect the battery from excessive
discharge by disconnecting the load. A battery, especially a non-deep cycle one, which is run until it is
empty or nearly empty of charge will have its operational lifetime reduced and future ability to hold its full
rated charge impaired.

The user can program any of 20 disconnect and 20 reconnect values via an external pushbutton. The unit
corrects any illegal/faulty programming and shows it. The unit comes preprogrammed with recommended
popular default values. These default values are permanently stored in the firmware and can easily be
restored by the user. The programming procedures, reconnect voltage table, disconnect voltage table and
wiring diagram are described/shown in a comprehensive user instruction manual.

To increase load handling capabilities add an external heavy duty contactor/relay. The cutout will then drive
this external contactor/relay which in turn will switch the load.

General information

New
One year warranty on non-mechanical components
Black plastic ABS enclosure
Comprehensive instruction manual
Made in South Africa

Specifications

Micro-processor controlled
Dimensions: Width[2.6 inch(65 mm)] x Length[3.7 inch(95 mm) x Height[1.6 inch(40 mm)]
Voltage: 12 volt
Accuracy better than 1%
Relay contact rating: 30 amp (360 watt) max
Controller standby current draw: 1.5 milliamp
Controller max current draw: 55 milliamp
Reverse voltage protected
Internally PTC fused (self resetting)
Supply input 'spikes' LC filtered and clamped
Internal 'watchdog'
Voltage measurement input RC filtered and clamped
20 user programmable disconnect and reconnect voltages
Ships with controller preprogrammed with default values
External pushbutton for programming and manual ON/OFF

Owner benefits

Protection on all inputs for ruggedness
Micro-controller 'watchdog' for automatic resetting after malfunctions
Micro-processor controlled for accurate disconnect and reconnect values
User programmable feature for availability of a wide variety setup values
Internal PTC self-resetting fuse for protection against short-circuits
Low standby current for long battery life
Preprogrammed default values for beginners - just 'plug and play'
Reverse voltage protection for long unit life
Low controller max current draw for lower battery discharge
