Feature :
1.The feature of fuse :
When circuit faults or abnormal, accompanied by rising current,, this condition may be damage some important or expensive component of the circuit or burn the circuit even cause fire.Fuse can protect electronic appliance from current damage as well as prevent electronic components from being damaged by internal faults.Each fuse has their rated specification,when the current exceeds rated specification it will cut off current automatically.If fuse is placed in the electronic correctly ,fuse will cut off current automatically when the current and temperature up to certain rated that can protect circuit .
2.The function of indicator : while the red LED lights up which indicate the fuse has been disconnection, at this time you need to replace fuse timely.
3.This product adopts flame-retardant and environment friendly PBT material with high and low temperature resistance which completely meets the requests that fuse should have great mechanical strength, insulation property, heat resistance and flame retardancy to prevent it from breakup, deformation, burning, short circuit and other phenomena in operation.

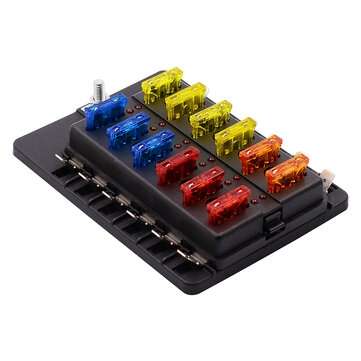

4.The design of 12 ways allows this product to be connected with battery positive directly with a cable. Then fuse will separate 12 ports to connect different electric appliances easily and conveniently.

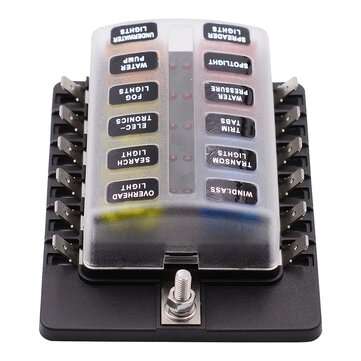

5.Having red LED indicator design which is corresponding to each electrical appliance connecting with each fuse piece. When fuse is broken ,the red indicator will light up convenient to know which fuse damage and treat it timely.

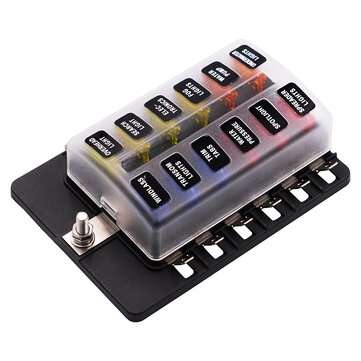

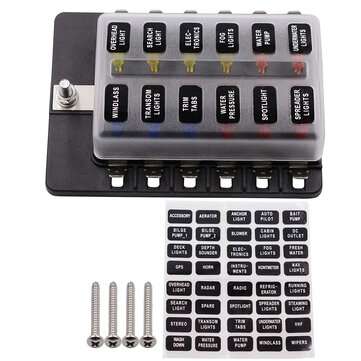

6.Enclosed stickers are gifts for you to paste on the corresponding electrical appliance according to the names on stickers. Then when fuse is broken and res LED lights, the troubled appliance will be recognized very soon for saving time and labor.
7.This product comes with double fuses which has multiple amperes for you to conveniently take place of broken fuse in operation with spare fuse of corresponding ampere.
Specification :
Model | 701822 |
Product name | 12 way fuse blade box |
Model number | CS-579B4 |
Product material | PBT body, PC waterproof and dustproof cover, nickel-clad copper binding post, PPX40 sticker |
Rated input voltage | 32 V |
Rated input current | 100 A |
|
