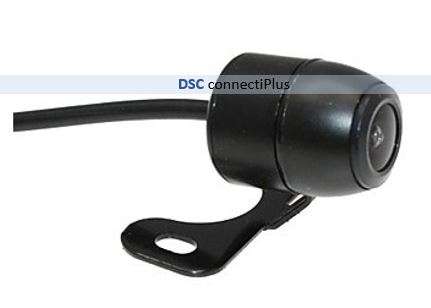

120 Deg Wide Viewing Angle CMOS Waterproof Car Rear View Camera 420 TV Lines NTSC / PAL
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
120 Deg Wide Viewing Angle CMOS Waterproof Car Rear View Camera 420 TV Lines NTSC / PAL (Black)..!
Product Information
Technical parameters
1. lens solution: 1030 CMOS
2. Optical lens: EFL = 1.8 mm
3. Format: Automatic
4. Resolution: 656 * 492
5. Rate: 25 FPS
6. Current Consumption: 60 MA
7. Waterproof index: lp67
8. Effective pixel: 640 H * 480 V 420 TV line
9. Scanning mode: PAL: 625 Lines. 60 Field/SEC
10. NTSC: 525 Lines. 60 Field/SEC
11. Supply power: 120 WA / 12 V power 0.8W
12. Waterproof level: IP67 gain control (AGC) to be automatic
13. SNR: > = 48 dB (AGCDEF)
14. Supports wireless transmission module (sold separately)
Specifications
Compatible Car Makes: Compatible With All Car Makes
Image Sensor: 1/4 inch CMOS PC1030
Night Vision Function: Yes
Waterproof: Yes
Wide Angle: 120 deg
Video System: NTSC, PAL
Total Pixels: 628 x 582
Resolution: 420 TV Lines
Minimum Illumination 0.5 LUX
Power Supply: 9~15V DC
Operating Temperature: -20 ~ +85'C, RH 95%

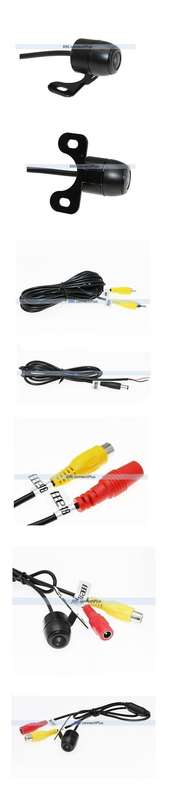

Package Contents
Set of Screws
Video Cable
Power Cable
User's Manual
Rear View Camera
