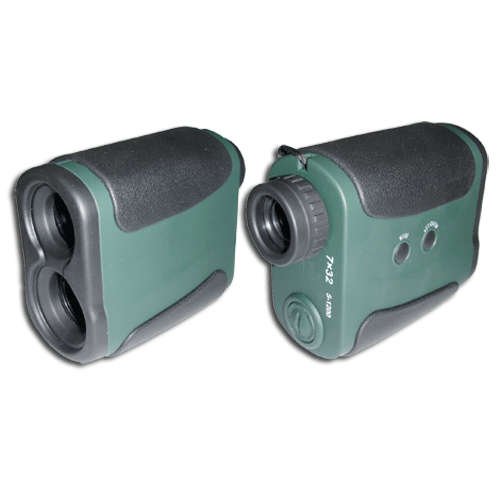

1200m / 1300 Yards Laser Range Finder Monocular

OPERATION INSTRUCTIONS
1. Depress the power button 'ACTION/ON 'to turn the power on.
2. Depress the mode button to change 'Meters' to' Yards '. Dynamic data switching function receive the data, hold down the 'mode'button, switch units and automatically convert data and real-time show.
3. Press the 'ACTION/ON' button one time, and begin Ranging 1, the top-right corner of a simulated laser flashes signs in the loop, said it is launching laser. The data show that measurement is in the bottom, also showed that objective reflection of the level of quality instruction, is divided into five, from left to right by five small components, small reflection that the more the stronger. Distance show "----" 4 short horizontal line, that goal can not be measured too far back. Data show that will remain until the next operation or the power of automatically.
4. Hold down the 'ACTION / ON' button non-release, immediately began to scan for location, continuously updated measurements show that up until the release button
5. When the battery is running low, in the upper left corner will display a battery symbol, that the battery should be replaced.
6. In the main interface, power supply will be no operation automatically after about 30 seconds off.

Warning
1. Viewing the sun can cause permanent eye damage.
2. Do not view the sun with this Range finder or even with the naked eye.

TECHNICAL CHARACTERISTICS
Optics Magnification : 7x
Objective lens : 32mm
Exit pupil diameter : 4mm
Field of view : 122m / 1000m & 133yad/1000yad
Type of coating : Fully multi-coated optics
Type of prism : Bak4 roof prism
Focus system : Eyepiece focusing
Range Finder Laser Type : Class 1(eye safe)
Laser wavelength: 905nm
Measuring range : 5 ~ 1200m
Accuracy : Normal condition 1m /yad
Scan mode : Yes
Meters/Yards display : Yes
Target quality indicator : Yes
3. Misc Battery : CR2 battery DC3V

'Low Battery 'indicator : Yes
Display : LCD indicator
Dimensions : 75 × 40 × 110 mm
