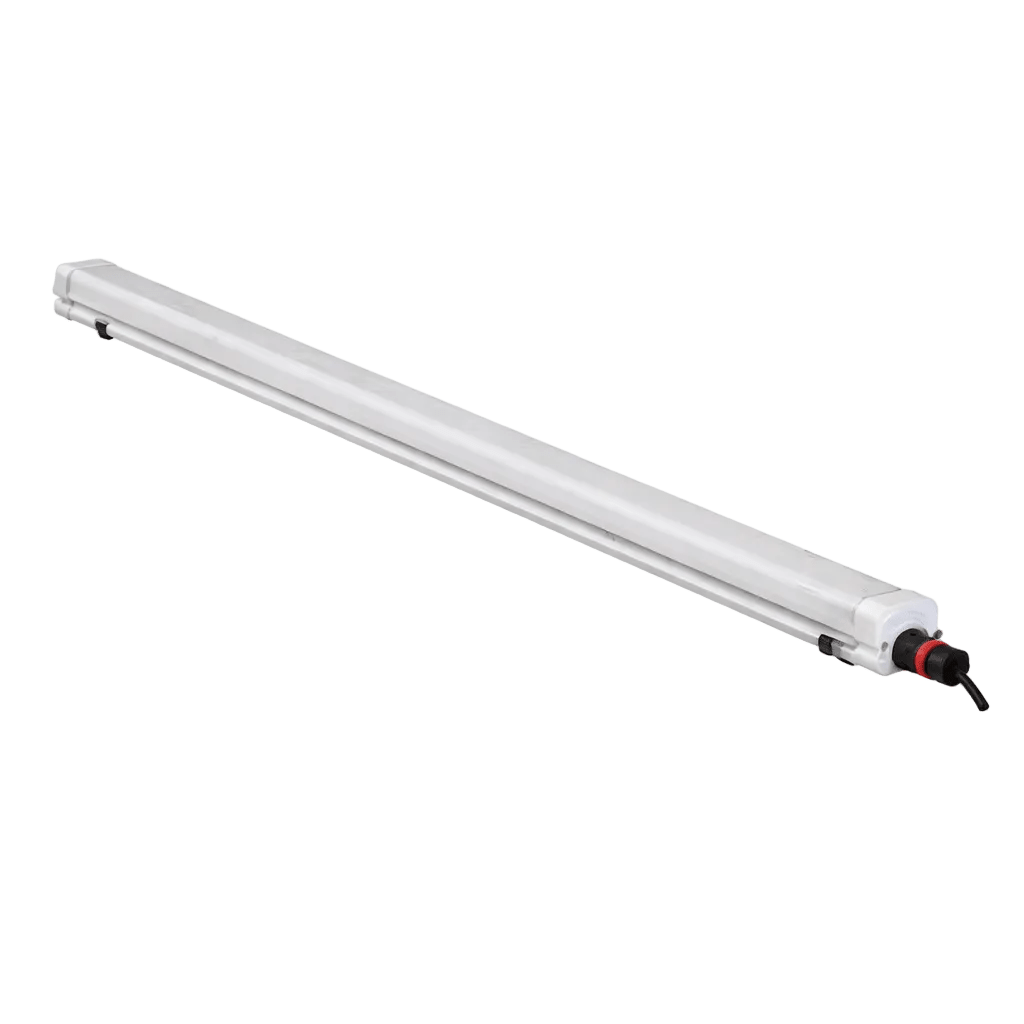

1200mm Explosion-Proof LED Linear Luminaire 36W

VLP 1200mm Explosion-Proof LED Linear Luminaire 36W | Ex Rated IP65

This 1200mm (4ft) VLP Linear Luminaire is engineered specifically for hazardous and explosive environments where certified protection is essential. Suitable for Zone 2, Zone 21 and Zone 22 areas, this Ex-rated fitting delivers safe and reliable illumination in locations where flammable gases, vapours, or combustible dust may be present.

Designed for industrial durability, this luminaire combines explosion protection certification with IP65 ingress protection and high-efficiency 120 lm/W performance. It is ideal for petrochemical facilities, refineries, fuel depots, grain processing plants, and other classified hazardous areas.

The fitting comes complete with a gland and a 1m cable.

Practical Tip: Before installation, confirm the site's hazardous area classification and ensure compliance with relevant SANS (IEC) standards. Installation should only be carried out by certified hazardous-area professionals.

Key Features

• Certified for hazardous and explosive environments
• Suitable for Zone 2, Zone 21 & Zone 22 areas
• Explosion protection: Ex ec IIC T5 Gc
• Dust ignition protection: Ex tb IIIC T100°C Db IP65
• IP65 dust and water ingress protection
• High-efficiency 120 lm/W output
• Wide 100277V operating range
• 50,000-hour LED lifespan (L80 B10)
• 5-year warranty

Specifications

• Model: ZLVP36-4
• Length: 1200mm (4ft)
• Wattage: 36W
• Lumen Output: 4320lm
• Luminous Efficacy: 120 lm/W
• Colour Temperature Options: 3000K / 4000K / 5000K
• Beam Angle: 120°
• Input Voltage: 100277V
• Frequency: 50Hz
• Power Factor: 0.97
• Efficiency: 92%
• THD: 15%
• CRI: <80
• SDCM: 3
• UGR: 22
• IP Rating: IP65
• Operating Temperature: 20°C to +70°C
• Ambient Temperature: -30°C to +40°C
• LED Lifespan: 50,000 hours (L80 B10)
• Dimensions: 1200mm x 50mm x 48mm
• Weight: 1.3kg
• Compliance Standards:
  • SANS (IEC) 60079-0:2019
  • SANS (IEC) 60079-7:2019
  • SANS (IEC) 60079-31:2014
• Explosion Marking: Ex ec IIC T5 Gc; Ex tb IIIC T100°C Db IP65
• Warranty: 5 Years

Ideal Applications

• Oil & gas facilities
• Petrochemical plants
• Refineries
• Fuel storage areas
• Grain silos and dust-prone processing zones
• Chemical manufacturing plants

Why Choose This Explosion-Proof Luminaire

• Certified Ex protection for hazardous zones
• High output with energy-efficient performance
• Industrial-grade reliability with long lifespan
