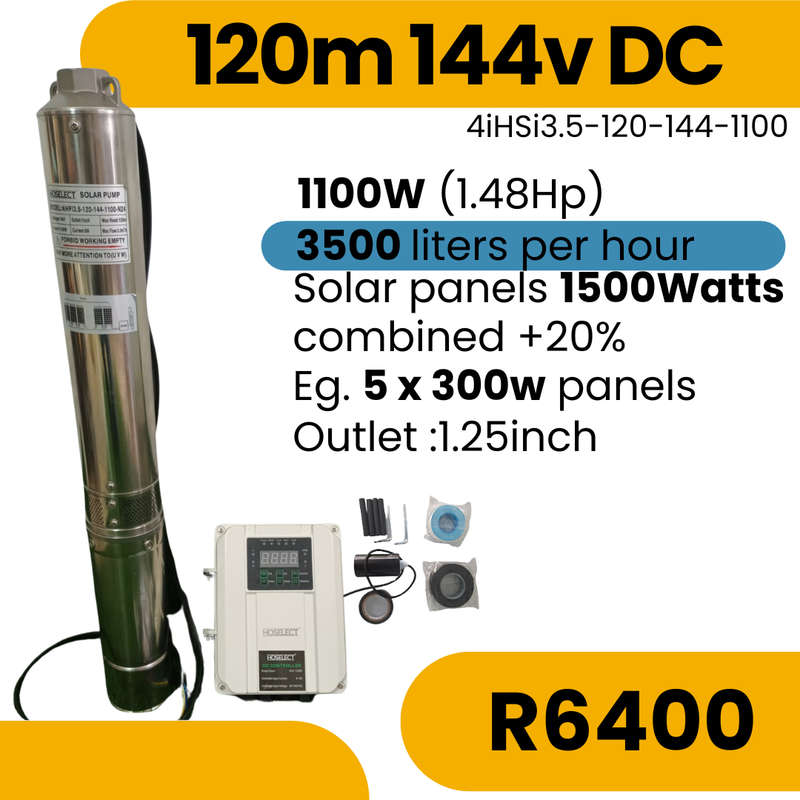

120m 144V DC Solar Borehole Pump

Max Head: 120m

Max Flow 3500 liter per hour

144v

1100W

1.48Hp

This pump needs 1500watts of solar panels combined.**

Eg. 5x 300watt panels

**We suggest you go 20% bigger since most solar panels on the market in South Africa is around 23% less power than what it tells you on the lable.

Solar panels sold separately.

Energy supply:

1. Solar panels (DC)

Or

2. Battery (DC)

Why you should choose this borehole pump.

* They sport a brushless permanent magnetic motor, which means efficiency is improved by 20%-40%,

* The frequency conversion and controller is outside

* Soft start running, makes motor life longer

* Powered by DC (DC power include: solar panel or batteries)

* Comes with an MPPT controlled, to maximize the energy you get from the sun even on cloudy days

* Reverse protection

* Locked rotor protection

* Low water level sensor protection built in

* High water level sensor protection

* DC input option by manual

Supply voltage range: 144~490V DC (Solar panel Voc voltage);

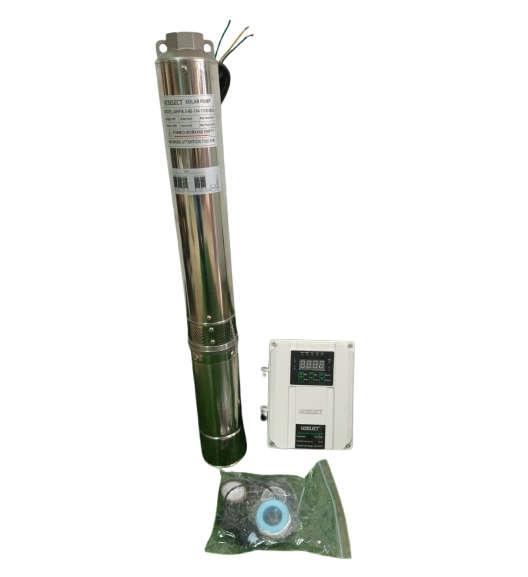

What comes in the box

-Borehole Pump

-MPPT Controller

-Low water sensor(for your tank/dam)

-User manual

-Accessories (sealers & tape)
