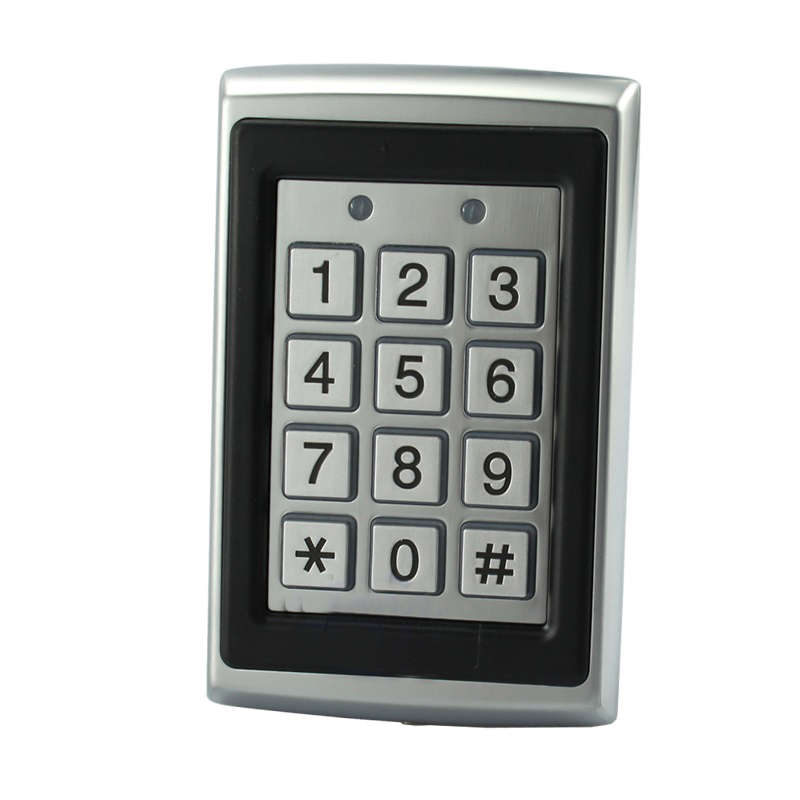

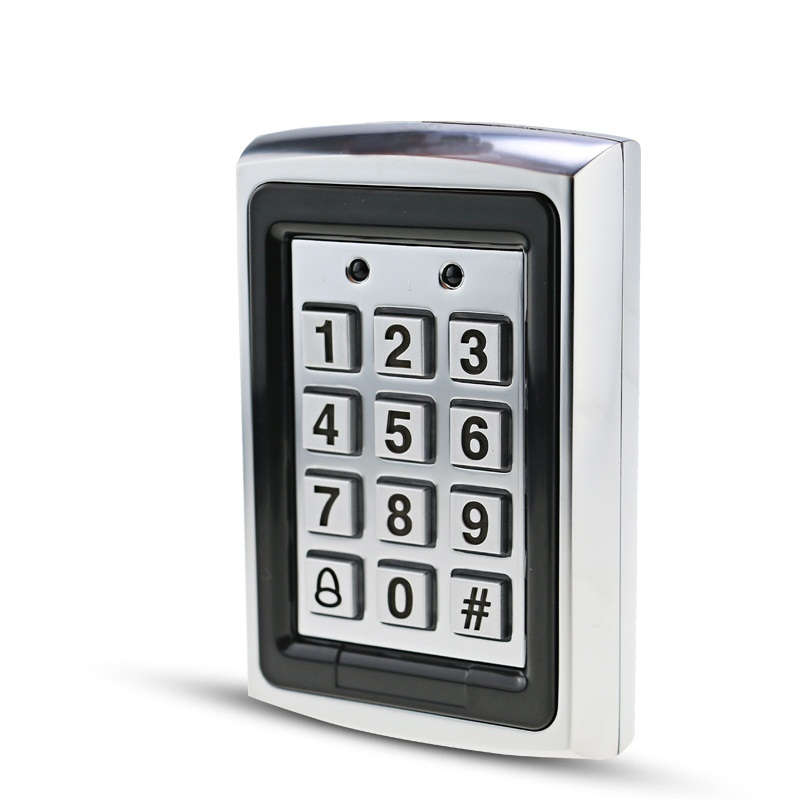

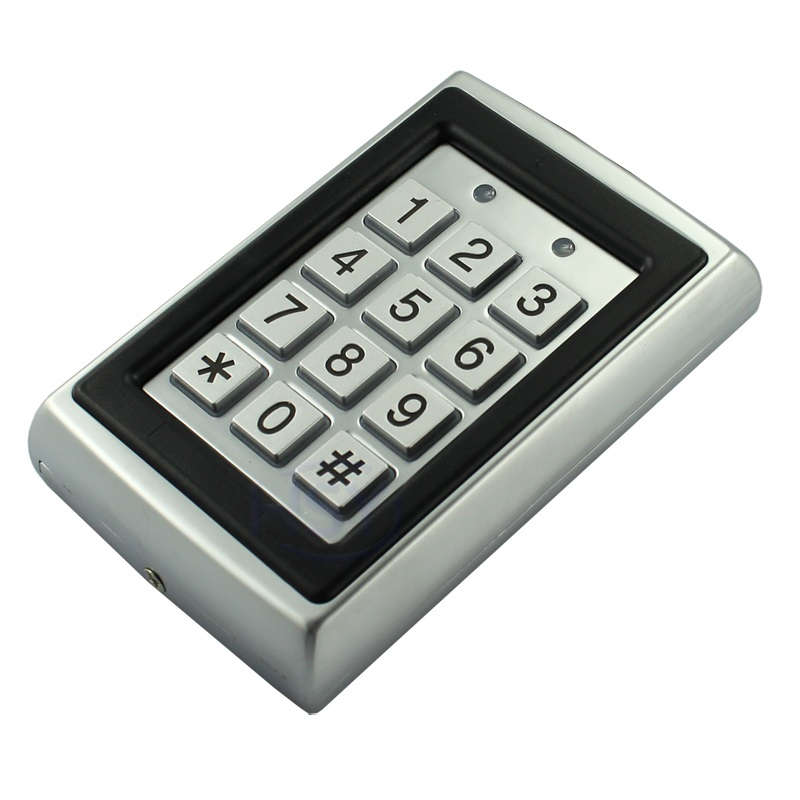

125Khz EM ID Metal Case Gate Opener Door Lock RFID Reader Access Control Keypad with Back Light

20 available / new

R981.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641100714

Features :

Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2000 uses, supports Card, PIN, Card + PIN
Can be used as a standalone keypad

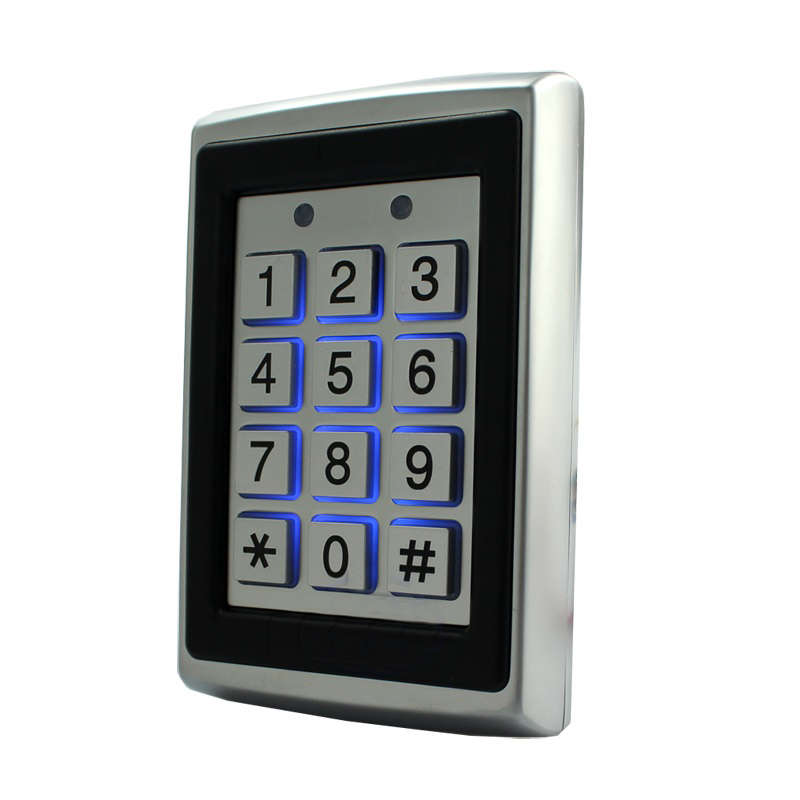

Backlight keys
Wiegand26 input for connection to external reader
Wiegand26 output for connection to a controller
Adjustable Door Output time, Alarm time, Door Open time
Very low power consumption (30mA)
Fast operating speed, <20ms with 2000 users
Lock output current short circuit protection
Easy to install and program Built in light dependent resistor (LDR) for anti tamper
Built in buzzer

Specification :

Operating Voltage	DC 12V&pm;10%		Lock Output Load	Max 3A
User Capacity	2000		Alarm Output Load	Max 20A
Card Reading Distance	5-6 cm		Operating Temperature	-40~60Degree
Active Current	<60mA		Operating Humidity	10%-90%RH

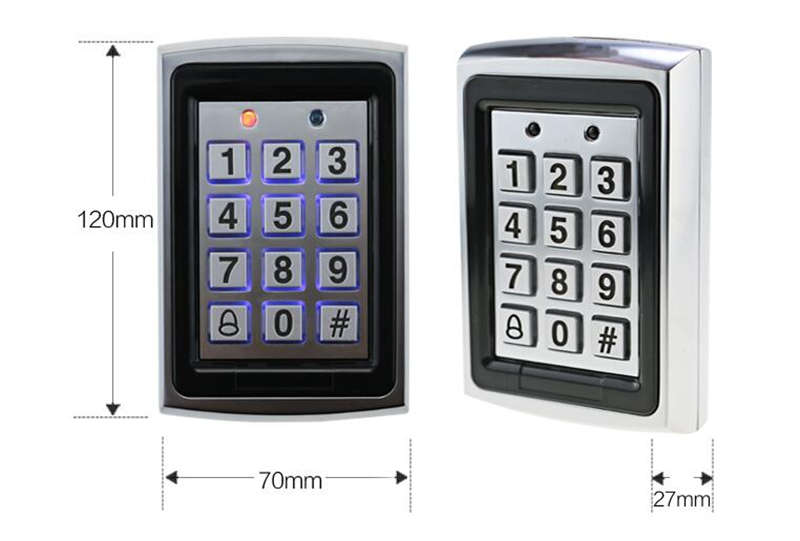

Idle Current	25&pm;5 mA		Size	120x76x20MM
Adjustable Door Relay time		0 -99 seconds
Adjustable Alarm Time		0- 3 minutes
Wiegand Interface		Wiegand 26 bit

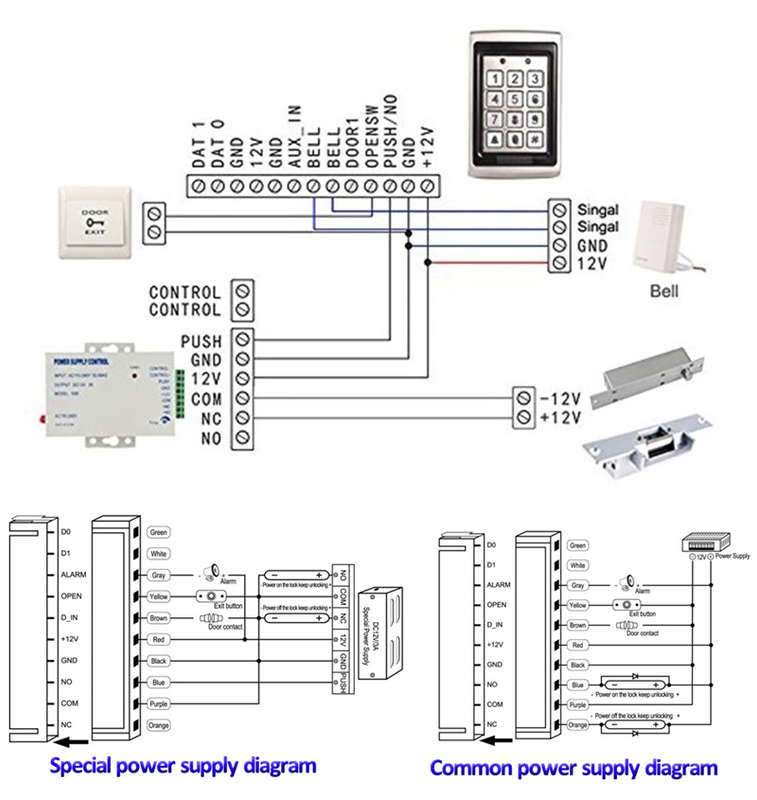

Wiring Connections		Electric Lock, Exit Button, External Alarm, External reader

Quick Reference Programming Guide:

To enter the programming mode	* Mas ter code# 999999 is the default factory mas ter code
To exit from the programming mode	*
Note that to undertake the following programming the mas ter user must be logged in
To change the mas ter code	0 New code# New code# The mas ter code can be 6 to 8 digits
To add a PIN user.	1 User ID number # PIN# The ID number is any number between 1 & 2000. The PIN is any four digits between 0000 & 9999 with the exception of 1234 which is reserved. Users can be added continuously without exiting programming mode
To add a card user	1 Read Card # Cards can be added continuously without exiting programming mode
To delete a PIN or a card user.	2 User ID number #for a PIN user or 2 Read Card #for a card user Users can be deleted continuously without exiting programming mode
To unlock the door for a PIN user	Enter the PINthen press #
To unlock the door for a card user	Present the card
