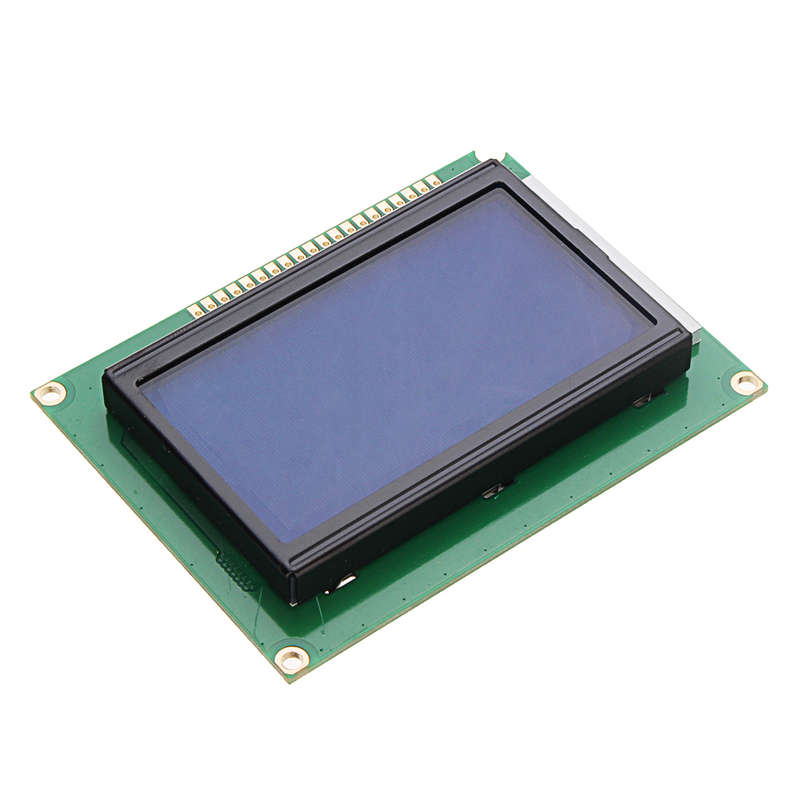

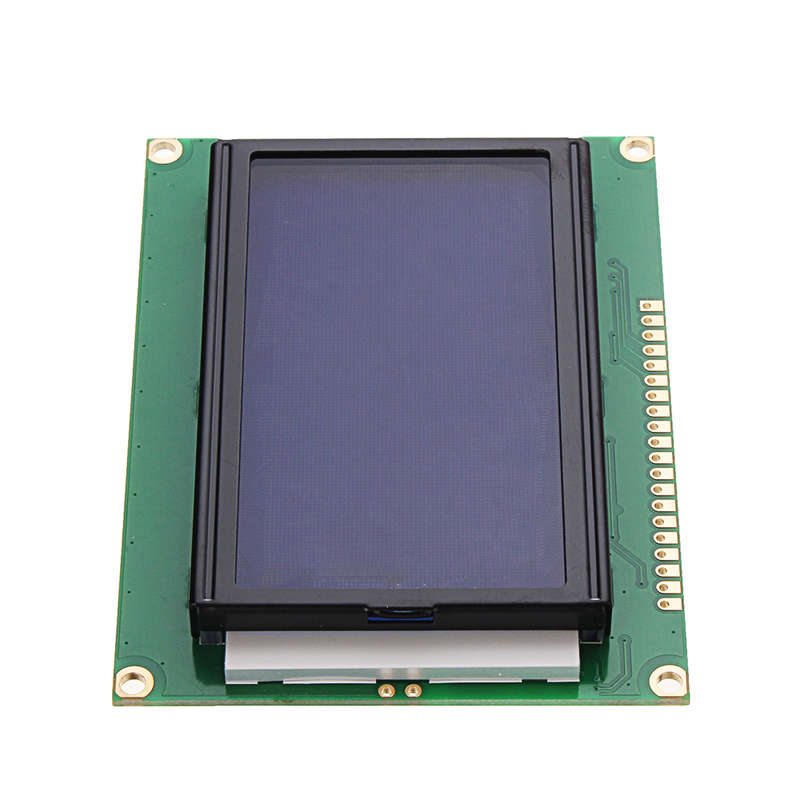

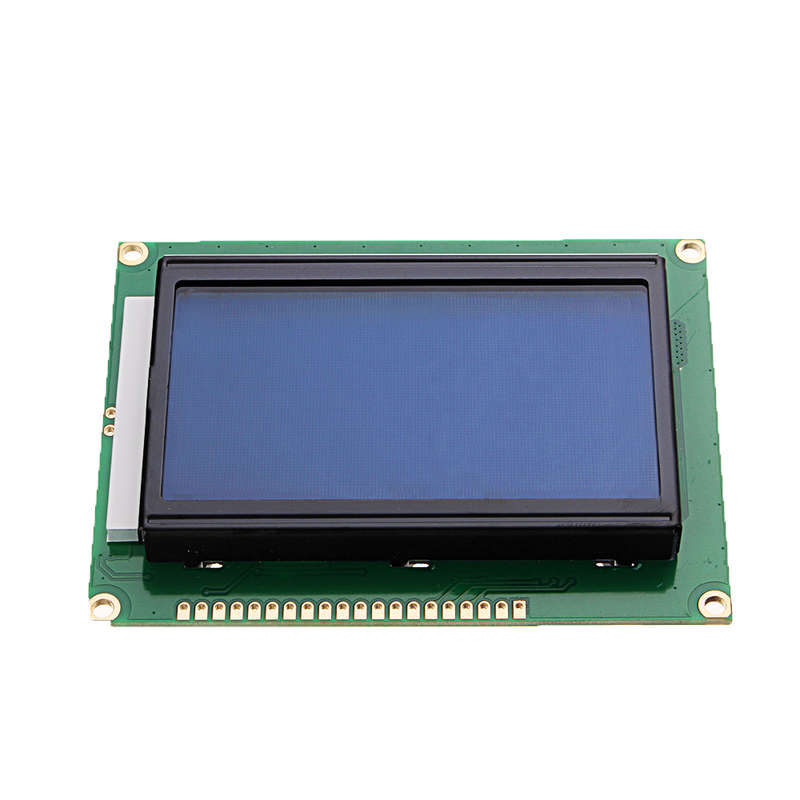

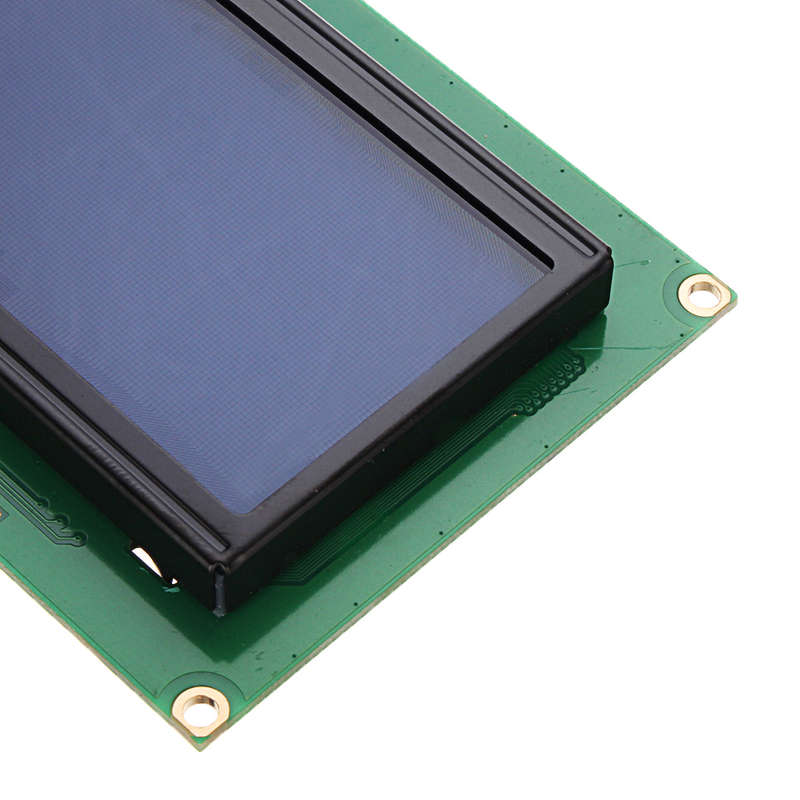

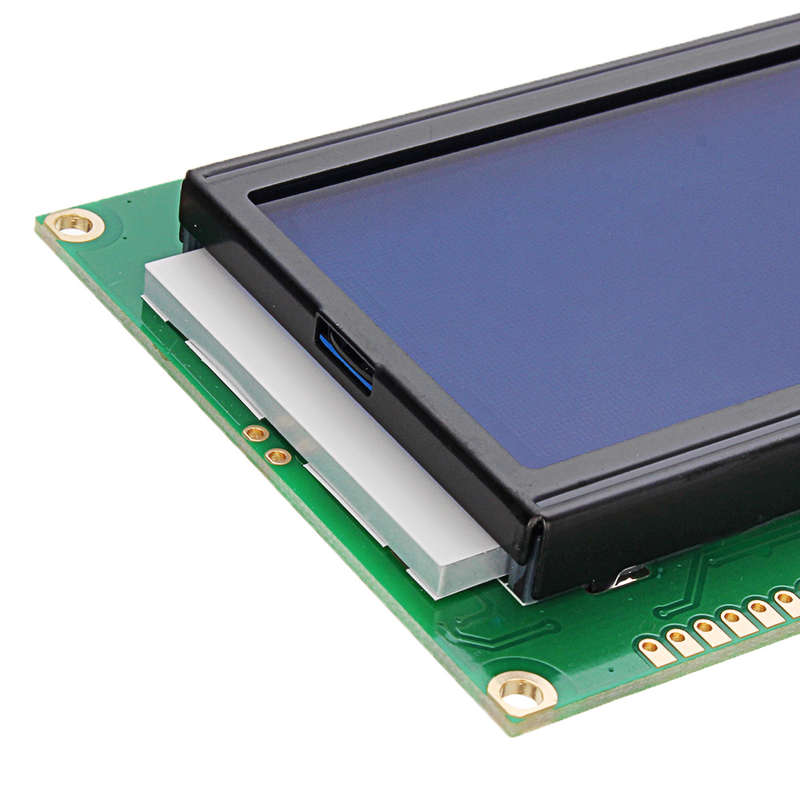

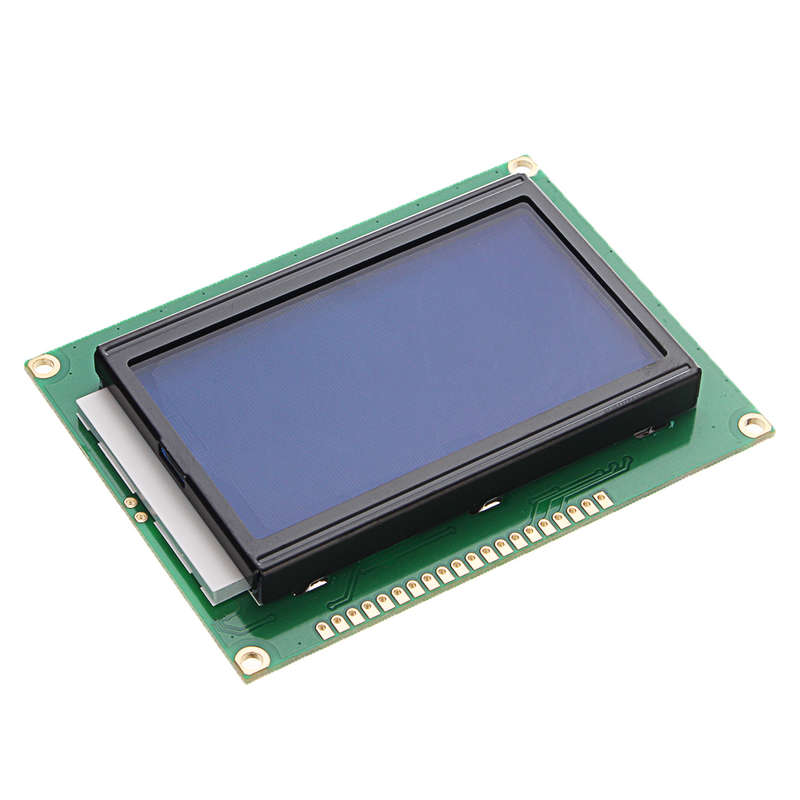

12864 128 x 64 Graphic Symbol Font LCD Display Module Blue Backlight Geekcreit for Arduino - product

20 available / new

R539.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3463

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641100745

Feature:

With this 128 x 64 LCD Display Module, you can customize graphics, symbols, fonts by yourself.
Automatic power-on reset
Interface definition:
PIN1: VSS
PIN2: VDD
PIN3 / PIN17: Adjustment of Contrast
PIN4 ~ PIN6: RS, R / W, E
PIN7 ~ PIN14: D0 ~ D7
PIN15: Serial / Parallel
PIN16: NULL
PIN18: Positive Backlight
PIN19: Negative Backlight

Specification:

VDD: &pm;3.0V ~ 5.5V
Clock rate: 2MHz
LCD type: blue
Resolution: 128 x 64
Viewing angle: 6 O-Clock
Operating temperature: -20ﾣC ~ +70ﾣC
Storage temperature: -30ﾣC ~ +80ﾣC
View area: 70.0 x 38.8mm (L x W)
Dots size: 0.48 x 0.48mm (L x W)
Dots pitch: 0.52 x 0.52mm (L x W)

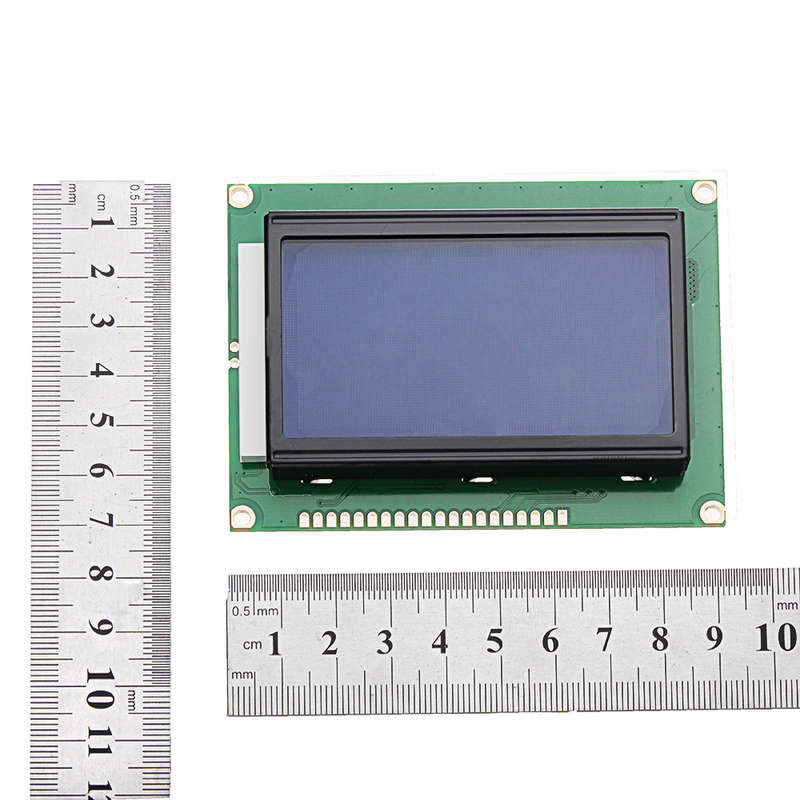

Size: 93.0 x 70.0 x 13.50mm (L x W x H)

Application:

Widely used in the punch card machines, Bus card machines, UnionPay machines, etc. more used in industrial equipment

Package included:

1 x 12864 128 x 64 LCD display module blue
