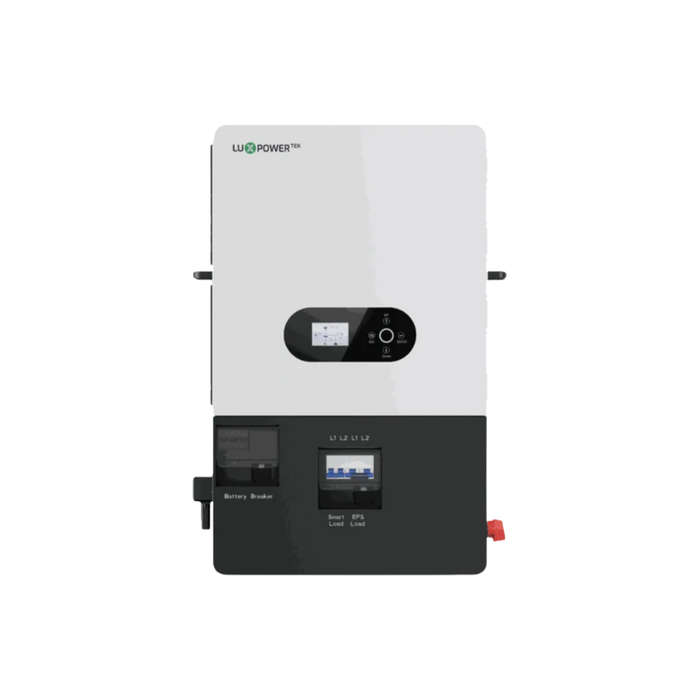

LuxPower 12kW Eco Hybrid Inverter Single Phase, Dual MPPT, Generator Ready
Description:
The LuxPower SNA12000 Eco Hybrid Inverter delivers a robust 12kW of single-phase power, combining intelligent hybrid energy control with industry-leading flexibility. Designed for residential and light commercial solar systems, this inverter seamlessly blends PV, battery, and generator inputs, offering full on-grid and off-grid capabilities with rapid switchover and advanced load management.
With built-in WiFi monitoring, dual MPPT trackers, and support for parallel expansion, it is the perfect solution for users needing energy independence, backup security, and smarter power usage.
Key Features:
Hybrid Power, Made Simple
-Pure sine wave output 12kW continuous / 48V system
-Compatible with or without battery
-Fast switching (<10ms) between on-grid and off-grid power
Solar Ready, Scalable Design
-Dual MPPT inputs, each handling up to 12kW (24kW total)
-MPPT range: 120V385V (PV voltage range: 100V480V)
-Maximum PV current: 35A per MPPT | Short-circuit current: 44A
Full Backup Support
-Smart Load Port + EPS Load Port both rated for 12kW
-Generator input support up to 15kW, ideal for off-grid and rural use
-Handles up to 100A passthrough current
Smart Monitoring & Control
-Built-in WiFi dongle with access to LuxPower web portal (server.luxpowertek.com)
-Mobile app support for Android & iOS
-Real-time remote control, alerts, and performance data
Battery & Inverter Compatibility
-Supports both lithium-ion and lead-acid batteries
-Compatible BMS communication via CAN/RS485
-Works with major battery brands: PylonTech, Dyness, Hubble, Freedom Won, Shoto, Hina, etc.
Parallel Ready
-Supports up to 3 units in parallel for larger systems
-Easily scalable for future upgrades
Build & Dimensions
-Size: 530mm x 830mm x 150mm
-Weight: 40kg
-Durable construction with intelligent thermal management
Benefits of the LuxPower SNA12000 Eco Inverter:
-High Capacity in Compact Form
12kW output with dual MPPT and 24kW solar input all in a sleek single-phase system.
-Ultimate Flexibility
Use with or without batteries, add a generator, and monitor your system from anywhere.
-Instant Backup During Loadshedding
<10ms switchover ensures sensitive equipment remains powered.
-Compatible With Your Setup
Works with a wide range of lithium and lead-acid batteries, plus mainstream inverter systems.
-Future-Proof Energy Control
Expandable with up to 3 units in parallel and ready for smart load automation.
What's Included:
-1 x LuxPower SNA12000 Eco Inverter
-1 x CT Clamp (for load control)
-1 x WiFi Dongle
-User Manual and Warranty Guide
Installation & Warranty
-2-Year Manufacturer Warranty
-Installation must be completed by a registered wireman or master electrician
-A valid Certificate of Compliance (COC) is required upon commissioning
-Installation must fully comply with SANS 10142 standards
-Non-compliant installations may result in a voided warranty
