Specification:
Model: D34770
Material: Plastic
Cable Length: approx.17cm
Black: GND
Red: 12V ACC+

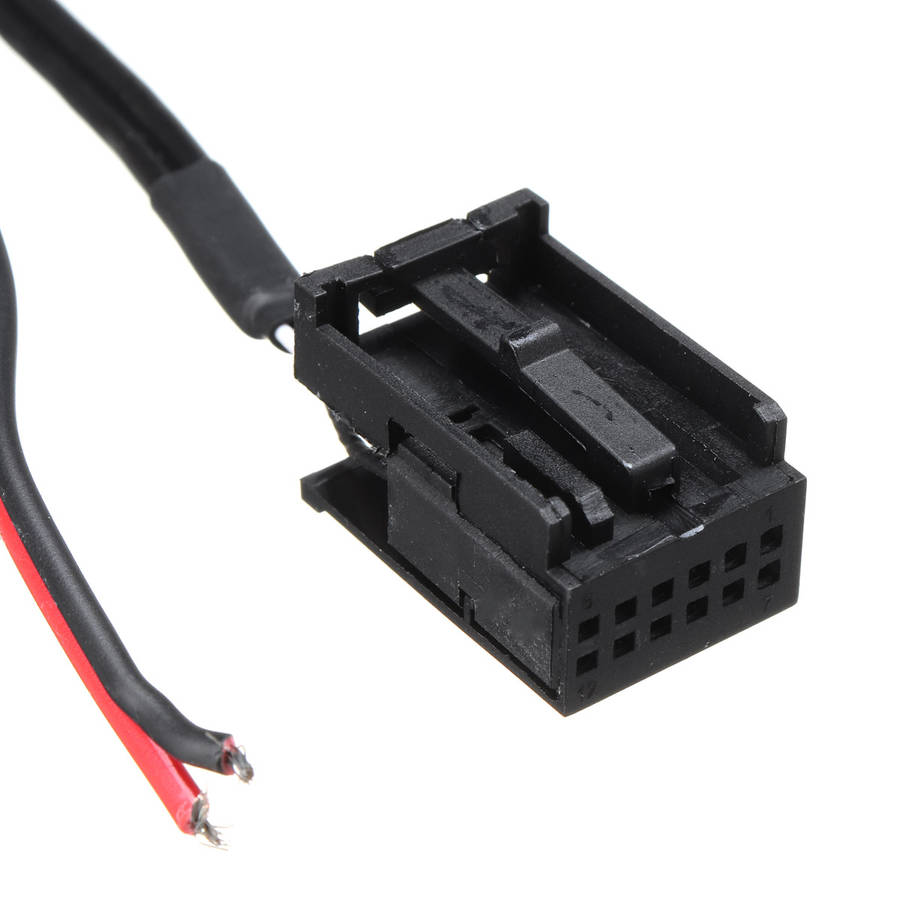

Connector: 12Pin
bluetooth module connector: 12V

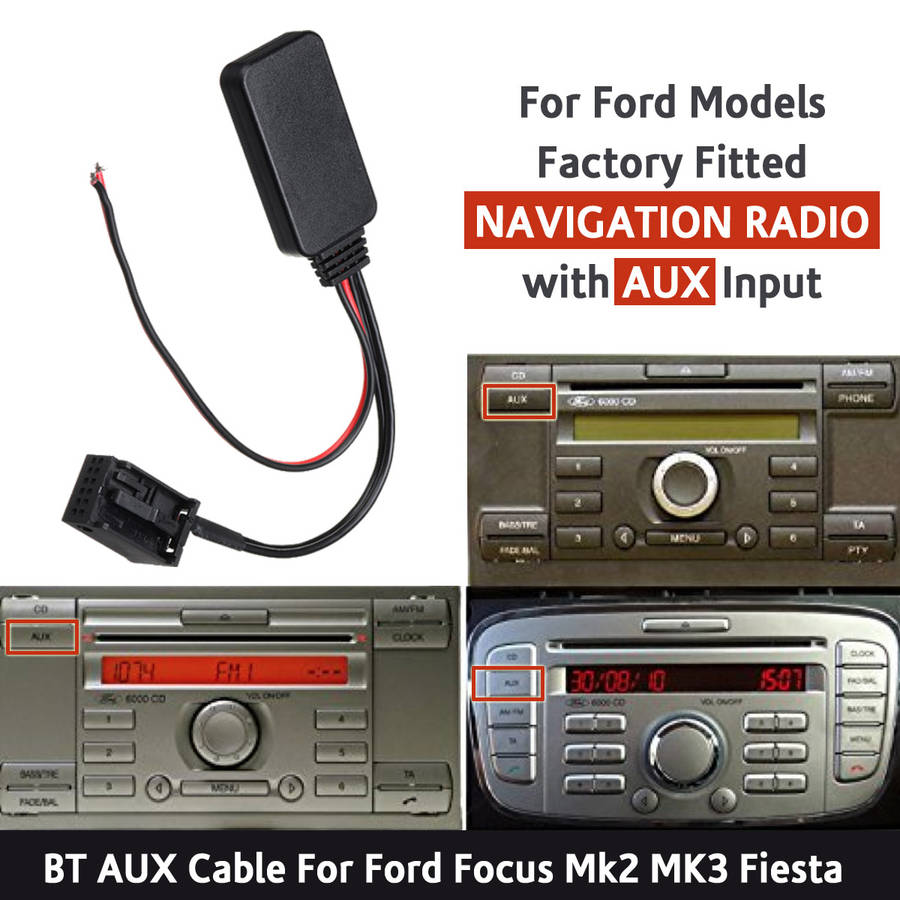

Compatibility:
Ford Transit approx 2006 - 2012 with factory fitted NAVIGATION radio with AUX input
Ford Focus approx 2007 - 2011 with factory fitted NAVIGATION radio with AUX input
Ford C-Max approx 2007 - 2010 with factory fitted NAVIGATION radio with AUX input
Ford Mondeo approx 2007 - 2014 with factory fitted NAVIGATION radio with AUX input
Ford S-Max approx 2006 onwards with factory fitted NAVIGATION radio with AUX input
Ford Fiesta approx 2005 - 2008 with factory fitted NAVIGATION radio with AUX input
Ford Fusion approx 2005 - 2008 with factory fitted NAVIGATION radio with AUX input
Ford Connect approx 2006 - 2012 with factory fitted NAVIGATION radio with AUX input
...plus any other for Ford models with factory fitted NAVIGATION radio with AUX input
If you are unsure of your radio model please send us a photo of it for assistance.
Note:
This connector plugs into the back of the car stereo and enables the AUX button on the front of the car radio.
This adaptor will only work with stereos that have the AUX button and NOT CDDJ stereos (the stereos with 6 cd's built in).
Feature:
- Plug and Play, Very easy installation.
- Function via bluetooth-enabled devices
- No functional limitations of the car radio
- Allows you to connect an external audio source
- It is possible from your smartphone to your car stereo to stream
- Pair your phone with our bluetooth module,and choose Aux from your radio.
- You can enjoy music from your phone through car speakers.
- bluetooth 4.0 system, and compatible with other versions of 2.0 3.0 4.0 bluetooth system, support commonly used MP3 format audio, but also support WMA WAV FLAC, and other high-quality audio format decoding, non-ordinary bluetooth functions, can support DSD large capacity transmission.
- The voice of QQ music, KuGou music, movie and map navigation can be transmitted to the car by bluetooth Phone. This can only transmit the sound to the car, but the image can not be displayed on the car.

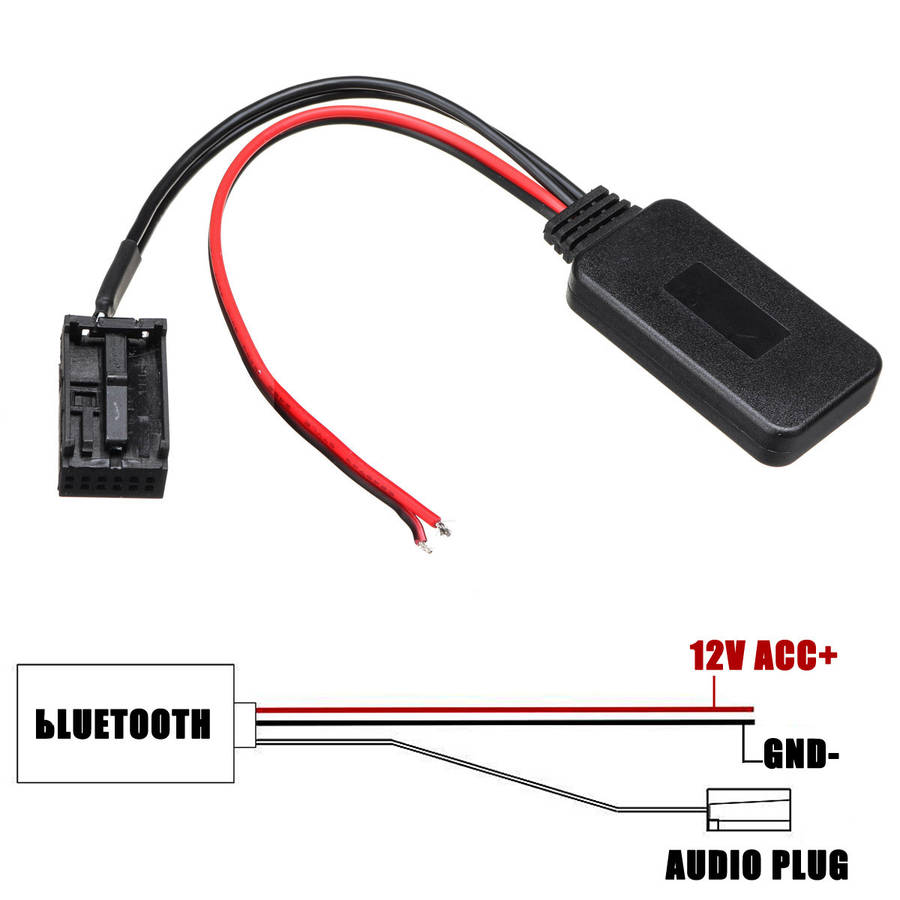

Installation:
Red power cable connected to 12V+
Black power cable connected to 12V-
12Pin plug into the CD player Jack (please confirm corresponding socket), mobile phone is connected with the bluetooth module, aux audio source selection, you can play mobile phone music.
Suitable for all mobile phone with bluetooth function.
Packing Included:
1x 12Pin bluetooth Adapter Aux cable
