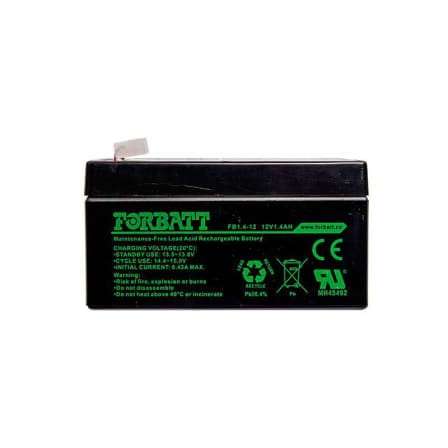

12v 1.4ah Forbatt SLA AGM Lead Acid Battery

Used for
Telecommunications and medical equipment
Uninterruptible power supplies
Emergency lighting
Security and fire system
Portable battery appliances
Specifications
Nominal Voltage 12V
Rated Capacity (20hr Rate) 1.4Ah
Dimensions
Total Height 2.24inches (57mm)
Height 2.01inches (51mm)
Length 3.82inches (97mm)
Width 1.69inches (43mm)
Weight Approx. 1.11 lbs (0.51kg)
Characteristics
Capacity
77o
F(25oC)
20-hour rate (0.07A) 1.40Ah
10-hour rate (0.11A) 1.10Ah
5-hour rate (0.20A) 1.02Ah
1-hour rate (0.78A) 0.78Ah
Internal Resistance Full Charged Battery 77o
F(25oC) 90ml
Capacity Affected
by Temperature
(10hr Rate)
104o
F (40oC) 102%
77o
F (25oC) 100%
32o
F (0oC) 85%
5
o
F (-15oC) 65%
Self-Discharge
77o
F(25oC)
Capacity after 3-month storage 90%
Capacity after 6-month storage 80%
Capacity after 9-month storage 60%
Charge
(Constant Voltage)
Initial Charge Current ¡§LESS¡¨ than 0.3A
Cycle 14.6¢w15.0V at 77o
F(25oC)
Stand By 13.6¢w13.9V at 77o
F(25oC)
