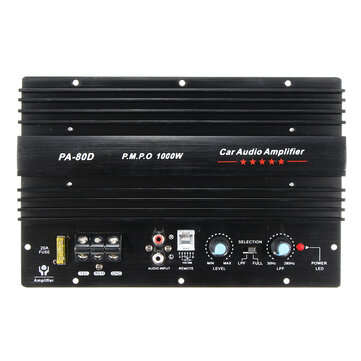

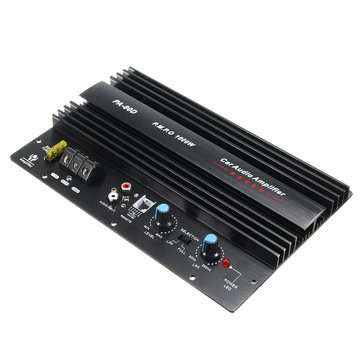

12V 1000W Mono Car Audio Power Amplifier Powerful Bass Subwoofers Amp

Wiring:
1. Speaker connection: Amplifier board has a good piece of red and black wire welding can be accessed by a 4-8 Euro
100-150W bass or full-range speaker or speakers (red pick horn + , black pick speaker - is recommended to use 4 ohm
8-12 inch 45 core 100-170 magnetic bass ).
2. Power connection
A. Car has a CD player: GND then negative vehicle power: 12V 12V power supply connected to the car 's positive; REM
CD player connected to the control line (so the CD player can directly control the subwoofer amplifier on and off )
B. Car no CD player: GND connected to the negative power of the car , + 12V and REM connected together in positive 12V
car power ( + 12V can also be an indirect one with REM switch control amplifier switching function )
C. Directly with the battery (battery) connection: GND connect the battery negative , + 12V and 12V REM then the positive
battery simultaneously

Specification:
Max Power: 1000W
Rated Power: 600W
THD: < 0.01%
Frequency Response:30Hz~280KHz
Operating Voltage:12V
Impedance:4a?|
SNR: 105dBA

Package Included:
1 X Car Audio Amplifier
