12V 100A 5S BMS Li-ion LMO Ternary Lithium Battery Protection Board With Balance
Sold

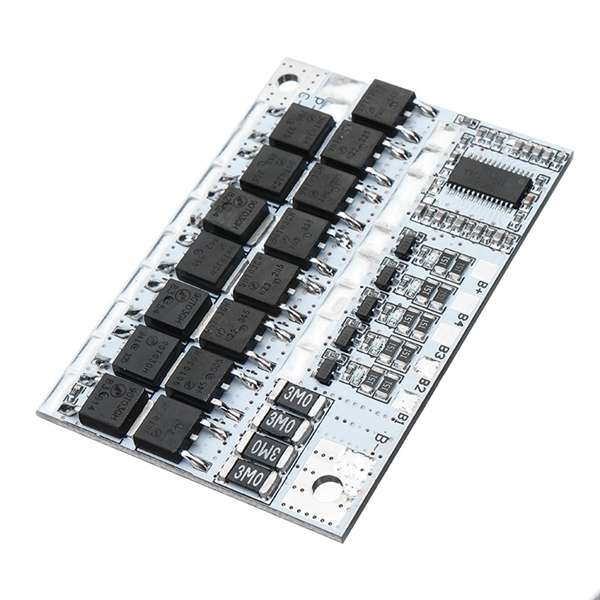

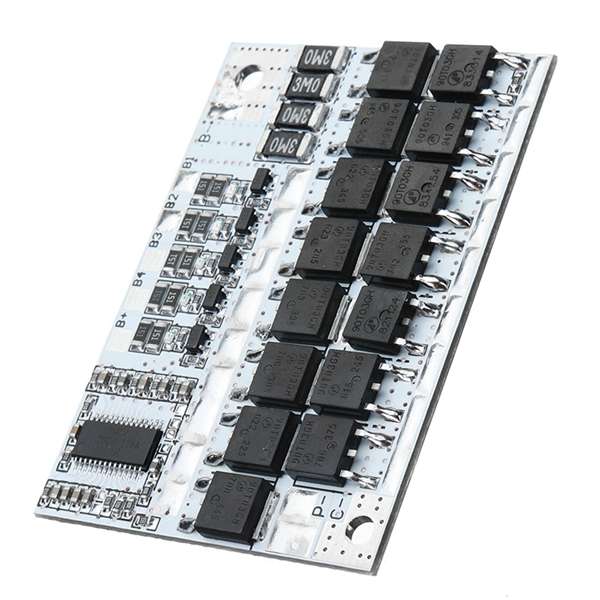

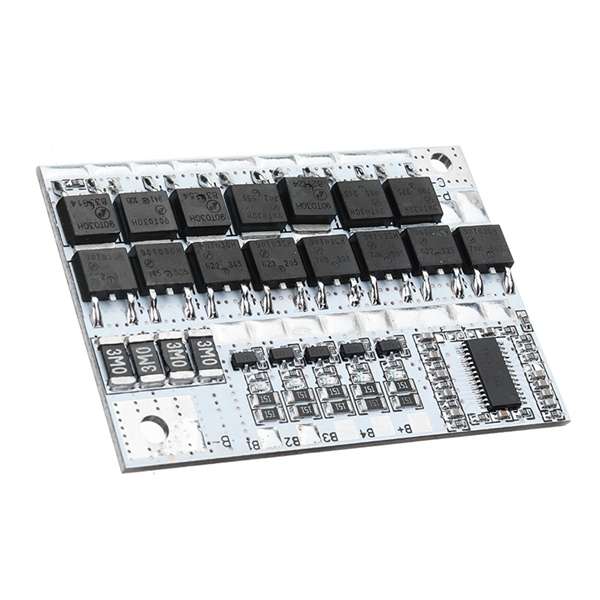

12V 100A 5S BMS Li-ion LMO Ternary Lithium Battery Protection Board With Balance

30 were available / new
Indicative market price: R299.00
R139.00
54% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
1245836
Bob Shop ID
333256606

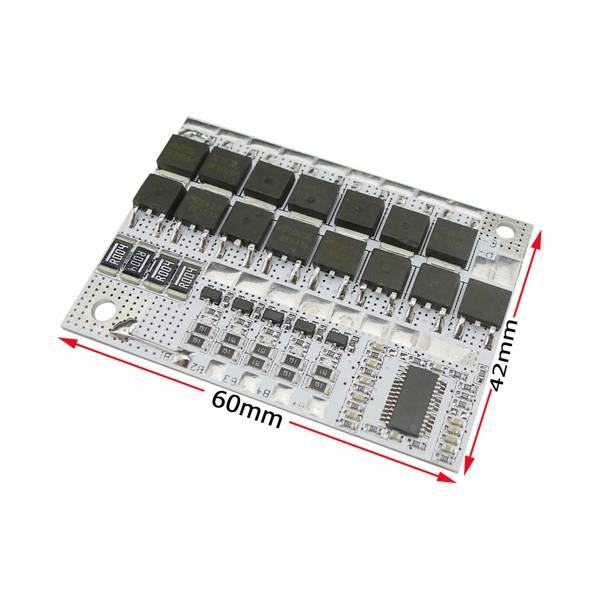

Package weight: 0.02 kg
Description:
1. Specified chip, stable performance, support disconnection protection, over-current protection, over-discharge protection, over-charge protection, with balance, etc.

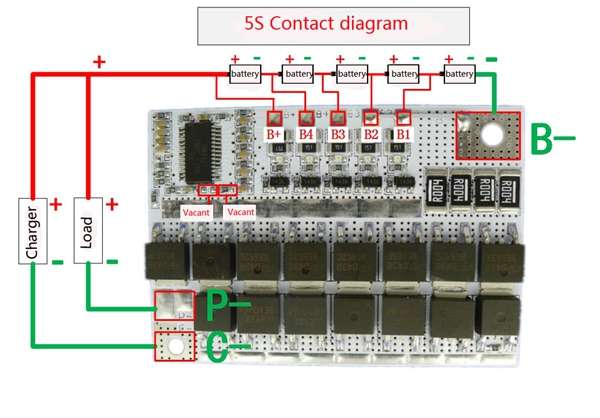

2. Common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A.
3. Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc.
Parameter:
FOR Li-POLYMER LiMnO Protection Parameter(3.6V / 3.7V)
Single cell battery overcharge protection voltage: 4.21-4.29 V
Single cell battery overcharge protection recover voltage: 4.14-4.24V
Over-charge protection delay: 1.5-2.5S
Single cell battery over-discharge protection voltage: 2.72-2.88V
Single cell battery over-discharge protection recover voltage: 2.9-3.1V
Over-charge
protection current: 100A
Over-discharge protection current: 100A
Over-discharge
protection delay: 0.5-1.5S
Temperature protection: Yes, have temperature control interface.
Disconnect protection: Yes
Shortage
protection: Yes
Shortage delay: 100-600 uS
Shortage protection recover mode: Off load release.
Contact discharge current: 80A
Synopline discharge current: 60A
Charging current: 60A
balance function: Yes
Ampere balance (Current): 60MA
Current balance accuracy: 4.14-4.24V
Package included:
1 x 100A 5S lithium battery protection board
