12V 10Ah Battery | LiFePO4 Lithium-Ion Phosphate | Golf Cart, Toy EV, UPS
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Lithium-Ion Phosphate ( LiFePO4 ) batteries are developed to deliver high efficiency energy output batteries. They are able to accept continuous high rate charging amps which make the battery fully charged in short time and improve the load service efficiency significantly. The built-in advanced BMS ensures intelligent automatic protection against over voltage, over current, over discharge, over temperature.

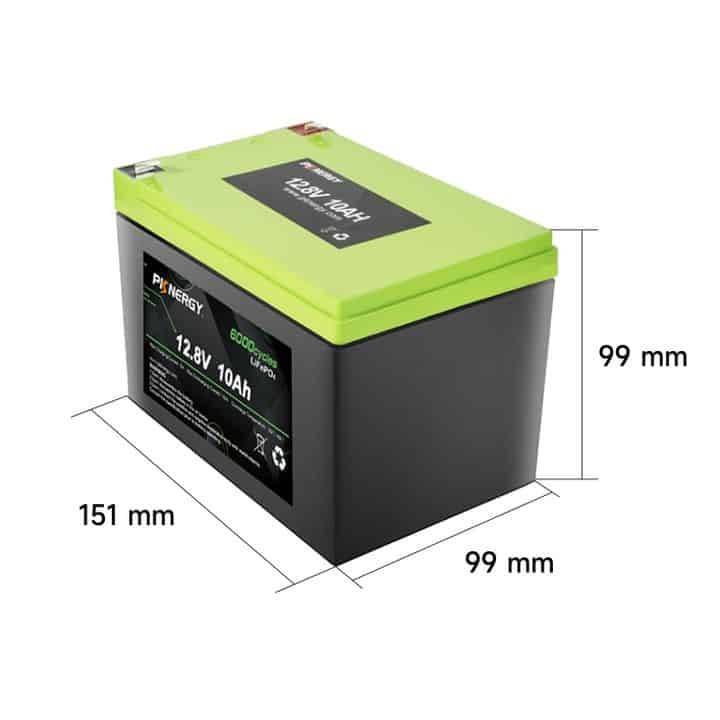

Important Note: this battery size is bigger than a default 12V 6Ah battery (may not fit in standard Gate motor) - dimensions (LxWxH) 151 x 99 x 99 mm. Please check dimensions before purchasing.
Suitable Lithium replacement for UPS, Inverter which are often sold with poor quality batteries. Also Golf carts and several other Electric Vehicle types and toys scooters etc.
Features:
- Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
- Long life-cycle: Can be circularly used, best can up to 6000 times recycles , 8 times of Lead acid battery.
- Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
- Good performance at high temperature and high temperature resistance
- Low self-discharge rate, less than 3% monthly.
- No memory effects and highly efficient charge.
- Environment friendly: Clean and Green energy poses no pollution on our environment.
Specification
Electrical Character istics | Nominal Voltage | 12.8V |
| Nominal Capacity | 10Ah@0.2C | |
| Energy | 128Wh | |
| Internal Resistance | 45m | |
| Cycle Life | 6000 Cycles @ 2A Charging/Discharging ,Until 80% Capacity | |
| Charge retention and capacityRecovery capability | 3.5% per month at 25 | |
| Standard Charging | Max.Charging Voltage | 14.0~14.4V |
| Charging Mode | At 0~45 temperature, charged to 14.4V at a constantcurrent of 2A, and then,changed continuously with constant voltage of 14.4V until the current was not more than 0.2A | |
| Charging Current | 2A | |
| Max.Charging Current | 5A | |
| Standard Discharging | Discharging Current | 2A |
| Max. Continuous Current | 10A | |
| Max.Pulse Current | 20A(<3S) | |
| Discharging Cut-off Voltage | 10.0V | |
| Operating Condition | Charge Temperature | 0 to 45(32 to 113) @6025% Relative Humidity |
| Discharge Temperature | -20 to 60(-4 to 140) @6025% Relative Humidity | |
| Storage Temperature | 0 to 45(32 to 113) @6025% Relative Humidity | |
| Water Dust Resistance | IP55 | |
| Casing | Plastic | |
| Dimension(L*W*H) | 151*99*99mm | |
| Weight | Approx1.28Kg | |
| Terminal | F2 |
Performance And Test Conditions
- Using the technology of lithium iron phosphate cell, superior safety, 6000 times cycles, 100% DOD guaranteed before delivery, under normal conditions.
- Built-in automatic protection for over-charge, over discharge, over current and over temperature.
- Free of maintenance.
- Internal cell balancing.
- Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
- Replacement for lead-acid battery.
- Wider temperature range: -20~60.
- Support for Series application expansion (up to 25.6V) or two in parallel.
Application
- UPS
- Solar &Wind Power System
- Golf Cart
- Electric Vehicle, E-bike, E-rickshaw etc.
- Lighting
