12V 13Pin European Standard Caravan Tow Bar Electrical Trailer Male Plug Plastic Socket

20 available / new
R451.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643356979
Package Included:
1 x Socket

Specifications:
Model: TM3008 (for European cars)
Shape: Oblate
Material: Plastic
Color: Black
Contact Material: Copper

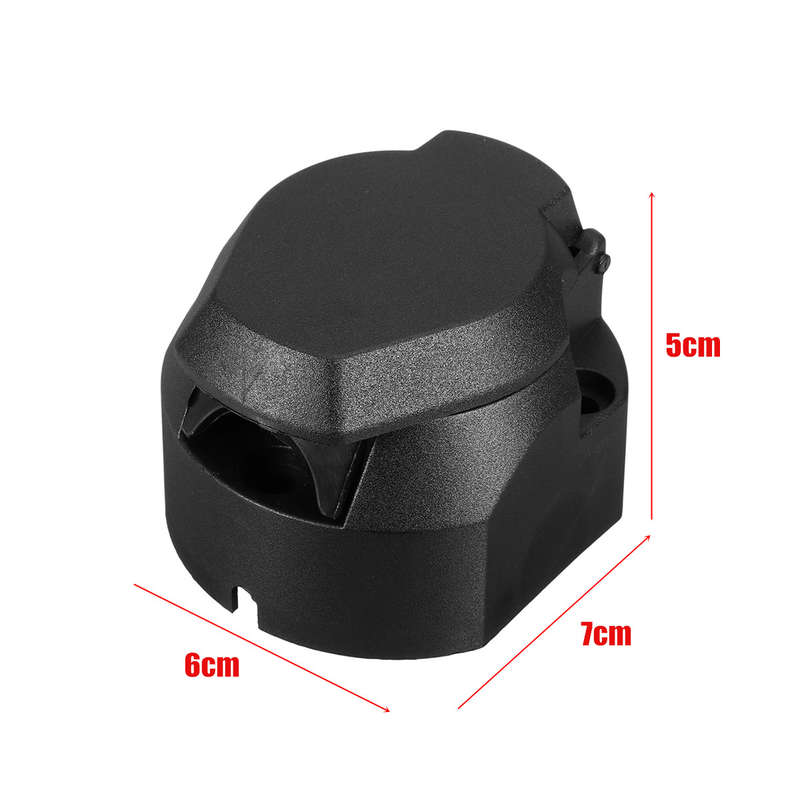

Size: Approx. 6x7x5cm/2.36x2.76x1.97
Features: Waterproof
Number of Cores: 13
Number of Stitches: 13
Voltage Output: 12V
Main Function: Connect trailer and power supply, suitable for trailer lights display
Applications: Commercial vehicles / trailers / RVs / cars / ships and so on

Wiring Configuration:
13 Pin Lighting Connections a Cable Function
Pin1 - Yellow Wire (Left Direction Indicator)
Pin2 - Blue Wire (Fog Light)
Pin3 - White Wire (Earth Return)
Pin4 - Green Wire (Right Direction Indicator)
Pin5 - Brown Wire (Right Tail & No. Plate Light)
Pin6 - Red Wire (Stop Light)
Pin7 - Black Wire (Left Tail & No. Plate Light)
Pin8 - Pink Wire (Reversing Light)
Pin9 - Orange Wire (12V Permanent power from battery)
Pin10 - Grey Wire (12V Ignition on ( Battery charging or Fridge)
Pin11 - White / Black Wire (Earth for Terminal 10)
Pin 12 - White / Blue Wire (NOT usually used)
Pin 13 - White / Red Wire (Earth for Terminal 9)
