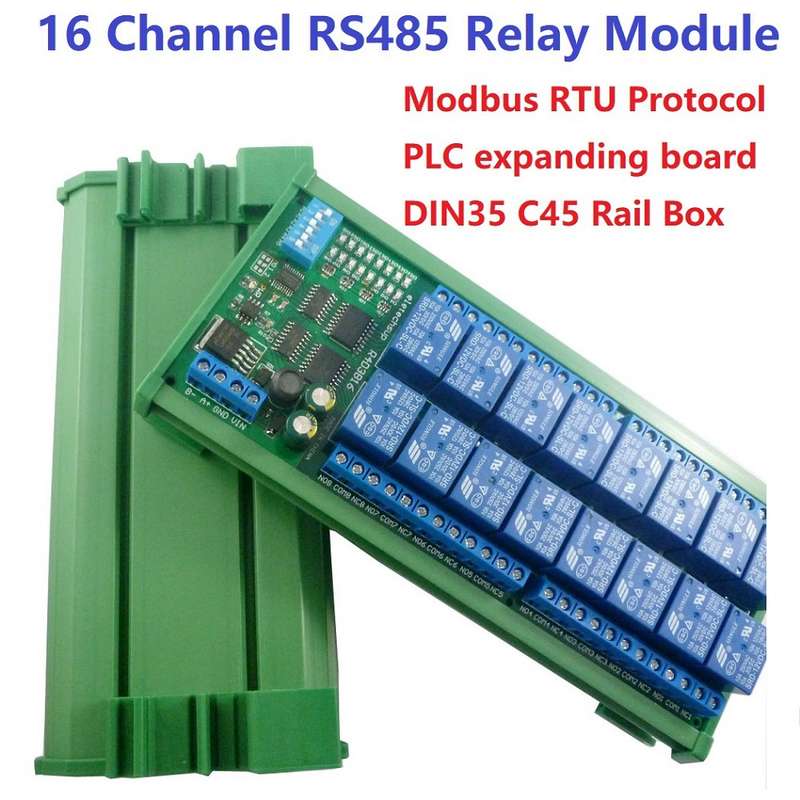

12V 16 Channel DIN Rail RS485 Relay Modbus RTU Protocol Remote Control PLC Expansion Board 12V 16 Channel DIN Rail RS485 Relay Modbus RTU Protocol Remote Control PLC Expansion Board 12V 16 Channel DIN Rail RS485 Relay Modbus RTU Protocol Remote Control PLC Expansion Board
12V 16 Channel DIN Rail RS485 Relay Modbus RTU Protocol Remote Control PLC Expansion Board 12V 16 Channel DIN Rail RS485 Relay Modbus RTU Protocol Remote Control PLC Expansion Board 12V 16 Channel DIN Rail RS485 Relay Modbus RTU Protocol Remote Control PLC Expansion Board

12V 16 Channel DIN Rail RS485 Relay Modbus RTU Protocol Remote Control PLC Expansion Board

20 available / new
R817.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641101026
Features:

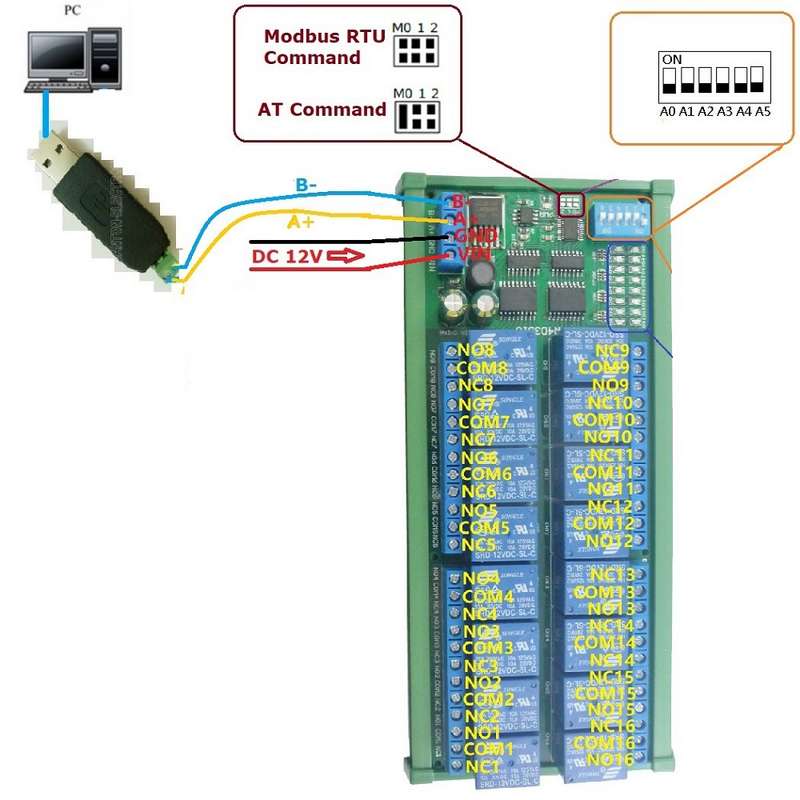

1. Working voltage: DC 12V 2. Working current: standby 13MA, 1 relay conduction 41MA, 2 relay conduction 69MA, 3 relay conduction 93MA, 4 relay conduction 121MA, 5 relay conduction 149MA, 6 relay conduction 175MA, 7 Two relays conduct 200MA, 8 relays conduct 225MA, etc. 3. Open, close, jog, self-lock, interlock, and delay six working modes 4. MODBUS command (default) and AT command two command control modes 5. The maximum delay under MODBUS command is 255 seconds, the maximum delay under AT command is 9999 seconds 6. AT commands can be input by serial port super terminal (serial assistant); MODBUS commands can be input by Modbus Poll besides serial port super terminal input 7. In MODBUS command mode, up to 64 devices can be used in parallel 8. The default baud rate is 9600BPS, you can select the baud rate 2400 4800 19200 BPS through the jumper 9. Size: 180 * 72 * 20mm (circuit board); 184 * 88 * 42mm (with rail box) 10. Weight: 230g (circuit board); 358g (with rail box) 11. Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC

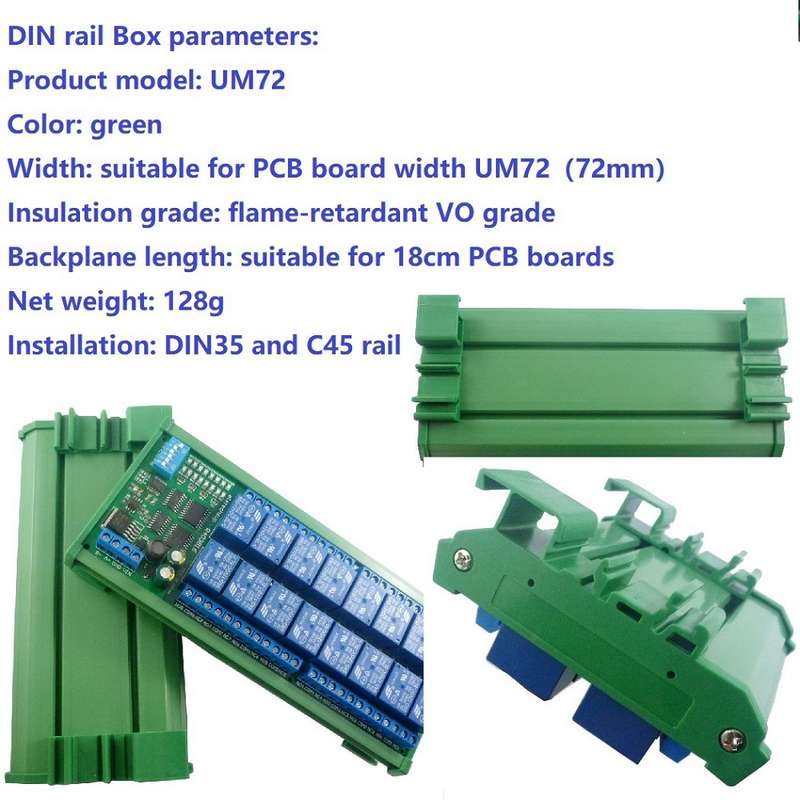

DIN rail box parameters:
Product model: UM72 Color: green Width: suitable for circuit board width UM72 (72 cm) Insulation grade: flame retardant VO grade Base plate length: suitable for 18 cm circuit board Net weight: 128 g Installation method: DIN35 and C45 rail
Package included:
1 x 16-channel DIN rail RS485 relay module
