12V 160rpm Reduction Motor Worm Gear Double Shaft DC Motor Cear-box Motor

Description :

12V 160rpm DC Motor Reduction Motor Worm Gear Double Shaft Cear-box Motor Features :
The motor is a micro turbine and worm speed reducing DC motor,which can change the direction of the motor and the rotation direction of the motor.
Worm reducer motor with self lock, that is, in the absence of electric motor,the output shaft is not moving, that is, self locking, self locking forceis 1.2 times the rated torque.
Gearbox output shaft and the motor shaft is vertical layout, the entire output shaftof the motor is relatively general deceleration motor ultra short, widely adapted tosome of the installation dimensions of the requirements of the occasion.
Specification :
Rated voltage: 12V DC
No-load speed: 160rpm/min
No load current: 0.22A
Rated torque: 2.5kg.cm
Locked rotor torque: 10.5kg.cm
Size: 120mm
Wire length: 170mm
Package includeds :

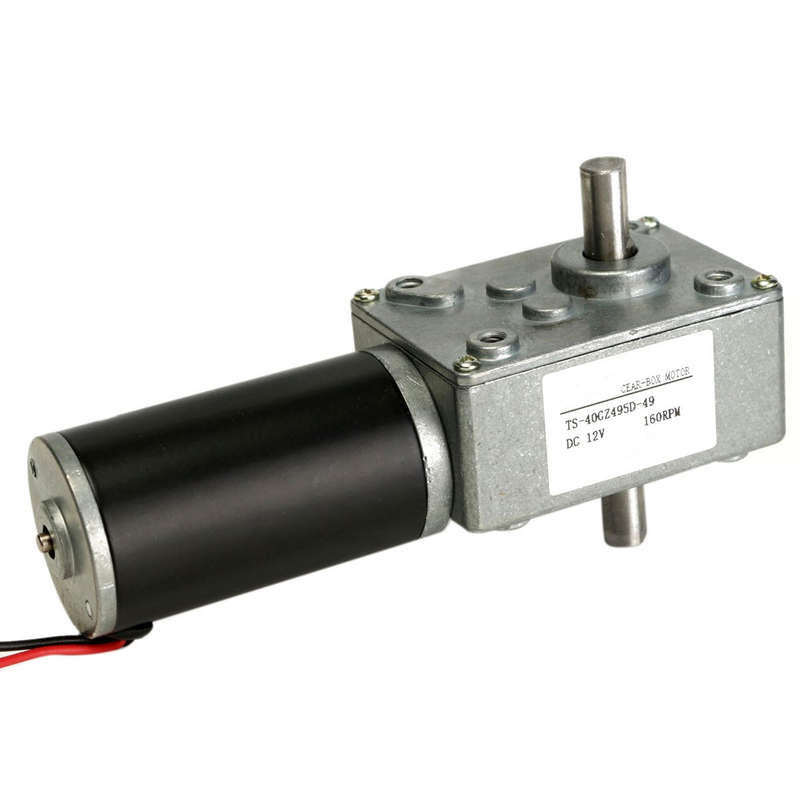

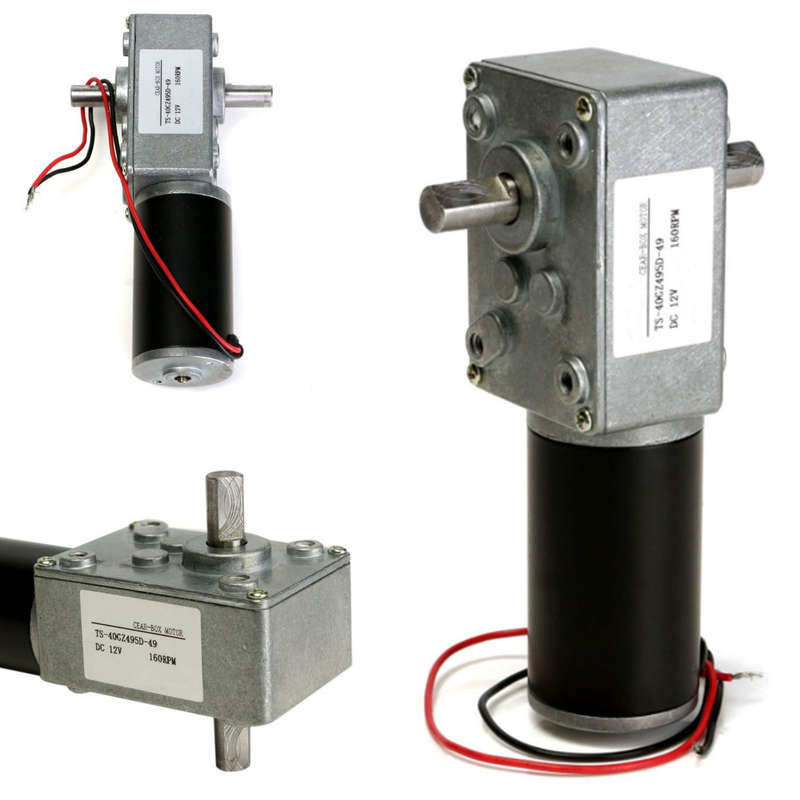

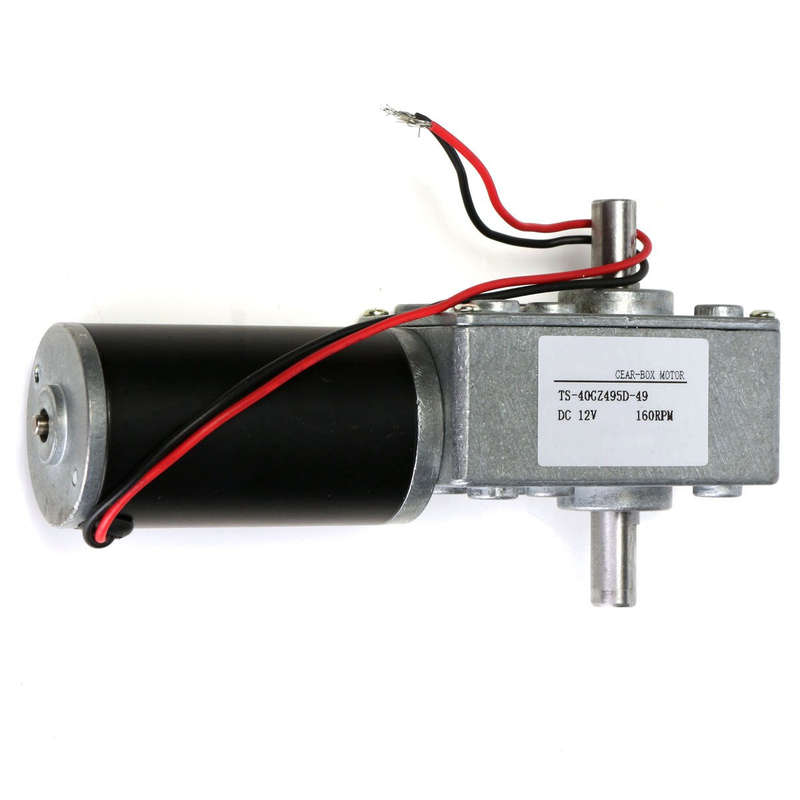

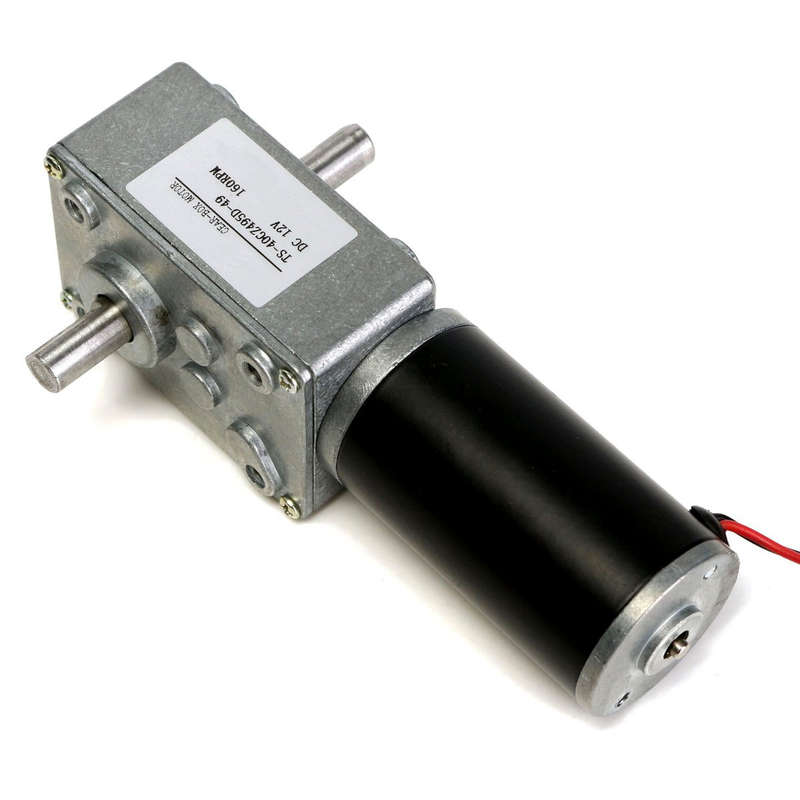

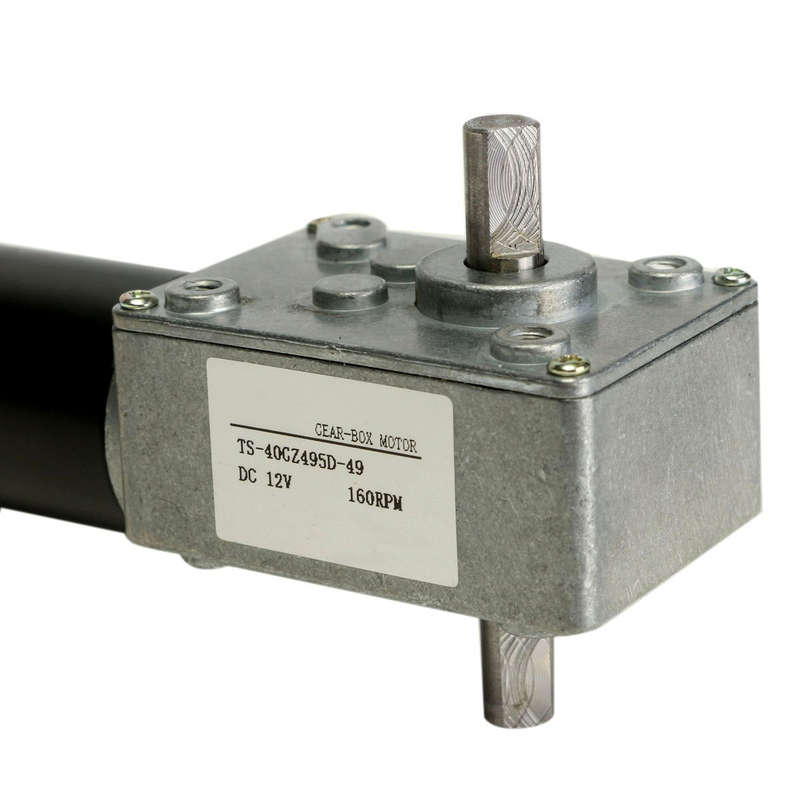

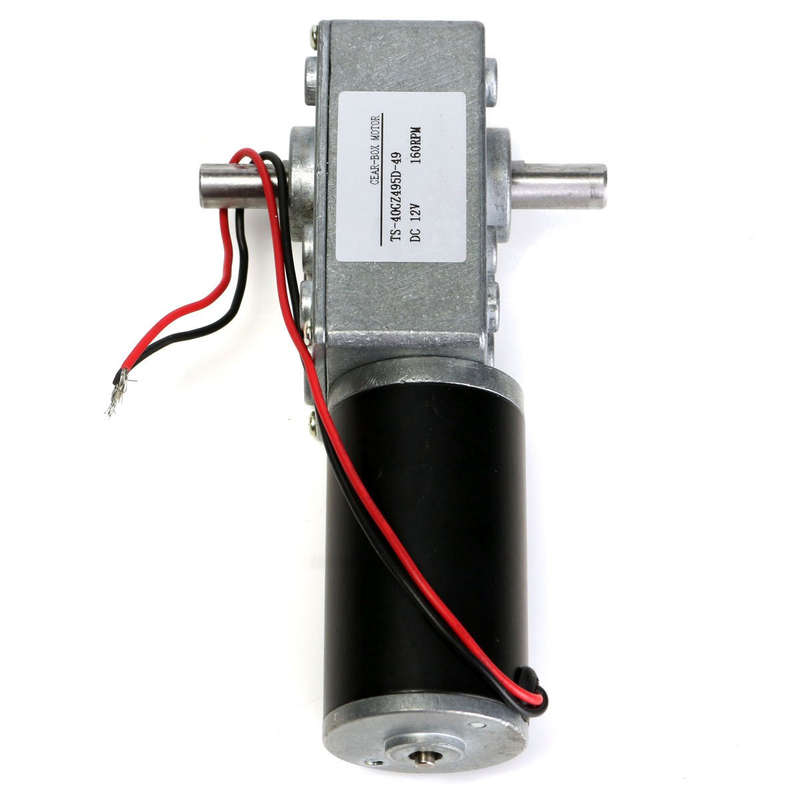

1 x Reduction Motor Details pictures :
