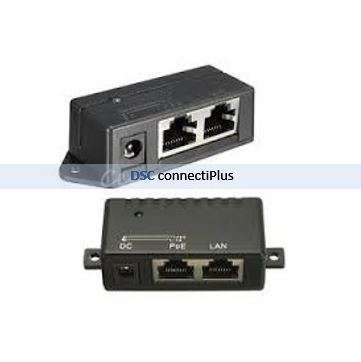

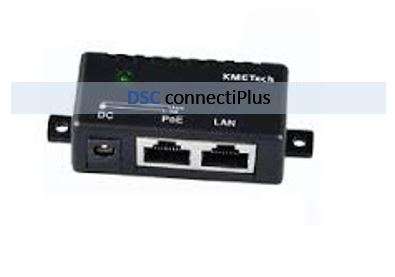

12V 1A Simple Passive POE Injector w/LED (Black)..!

12V 1A Simple Passive POE Injector w/LED (Black)..!

Product Information

To achieve best performance of a Wireless LAN, the location of Access Point(AP) must be carefully
chosen. In most cases, finding a power supply for AP is a common obstacle. Power over Ethernet (PoE)
technology provides the ideal power solution to help overcome these  obstacles. In Ethernet, four pairs
of C5 or C5E twisted pairs are used as the medium for transmission. The actual data transmission,
however, only takes up two pairs of wires(pairs 1-2 and 3-6). PoE technology utilizes the remaining pairs
(pairs 4-5 and 7-8) to conduct electricity.

Apply to WLAN, Wireless Router, Network Switch, VoIP Phone, Access Control, Security Surveillance, etc.

Data: PIN 1/2 & 3/6
Power: PIN 4/5+ & 7/8
Data in: Connects PC/HUB/Switch
Weight: 62g
Dimensions: 76mm*27mm*20mm
Case of material: ABS 94V-0
Ethernet Data rate: 10/100 Mbps
Ethernet Cable: TIA/EIA 568 Cat.5
Ethernet Cable Connector: RJ-45
Operating Temperature: 0~40 Degree
Storage Temperature: -40~70 Degree
Operating Humidity: 10% to 80% RH
Storage Humidity: 5% to 90% RH
LED Indicators: Power
