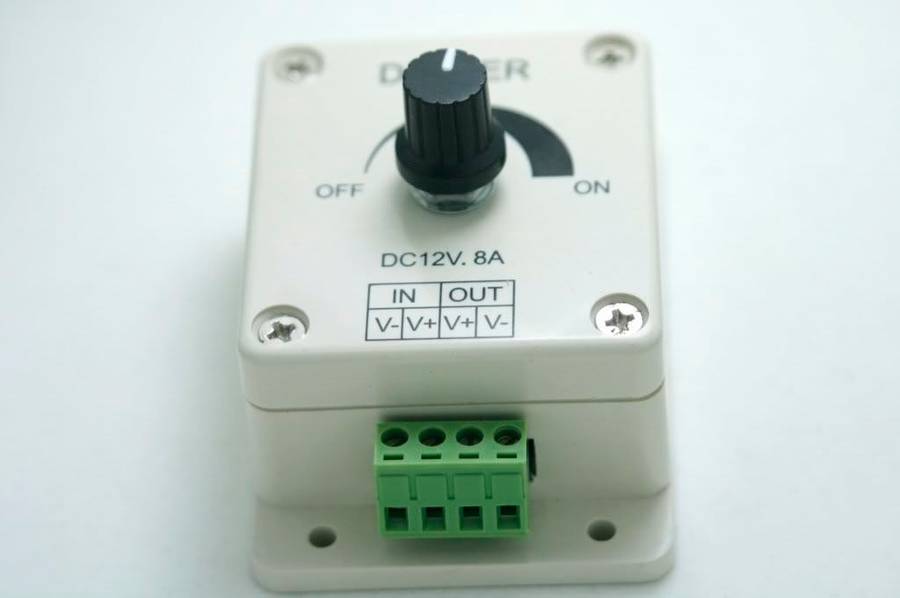

12V 1CH LED DIMMER (Adjustable Brightness Controller)

12V 1CH LED DIMMER (Adjustable Brightness Controller)

Description:

Dimmer is a controller that it can adjust brightness infinitely,its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.

Specification

Working temperature: -20-60 ℃
Supply voltage: DC12V
Output: 1 channel

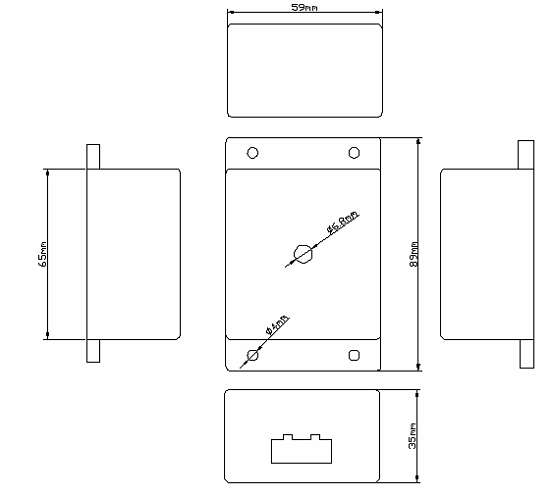

External dimension: L89 Χ W59 Χ H35 mm
Packing size: L160 Χ W95 Χ H51 mm
Net weight: 140 g
Gross weight: 175 g
Static power consumption: <1 W
Output current: <8 A
Power output: 96 W
When turned complete to the left the dimmer turns the ouput off.

Direction for use:

1. Adopt buttons control, and every button function as follows:

    *Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
    *Adopt rotary button, its function as follows:

A: Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.

B: Rotate button to the left, brightness will be darker,when you rotate it to the far left, the light will be turned off.

Safety Information:
Supply voltage of this product is DC12V never connect to DC24V or AC220V directly
Never connect two wires directly in case of short circuit

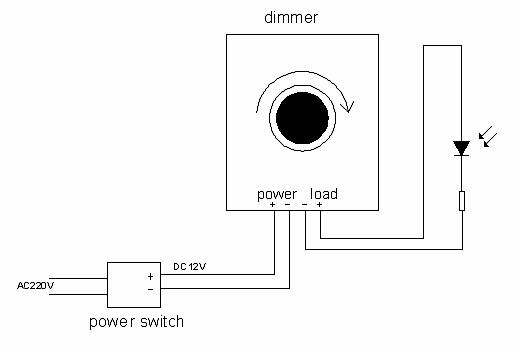

Lead wire should be connected correctly according to colors as in connecting diagram

Package Includes:

    *1 x Dimmer
