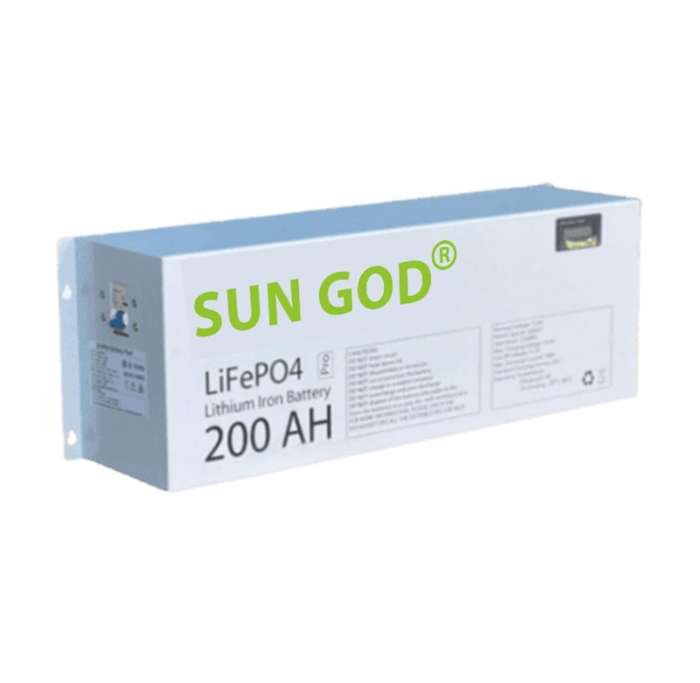

12v 200AH 2.56kWh Lithium Battery LifeP04 Battery (Wall Mount) SunGod

PRODUCT OVERVIEW

12V 100Ah LiFePo4 Single Battery Module is a Lead-Acid/AGM /Gel batter battery replacement.

This Wall Mountable standalone design Li-ion LiFePO4 battery with a Total Usable Energy of 2.56 kWh is perfect for small to medium residential or office installations with a proven Lithium Iron Phosphate (LifePO4) solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 2000 at 80% DOD.

SPECIFICATIONS

• 12V 200Ah LiFePo4 Single Battery Module

• Product Type Wall Mountable 12V 200Ah LiFePo4 Single Battery Module
• Rated Capacity 200Ah
• Nominal Voltage 12.8V
• Maximum Continuous Charging Current: 50A
• Maximum Continuous Discharging Current: 100A
• Design Life: -/+ 10 Years
• Cycle Life @ 1C: +/-1000 Cycles @ 100% DOD, Above 2000 cycles @ 80% DOD
• Protection: Electronic Circuit Breaker, Voltage Protection, Current Limiting
• Dimensions (LxWxH): 60.3*15.2*25.7cm
• Weight: Approx. 20kg
• Can Be Connected in Series & Parallel
• 4 series 10 parallel

24 Months Warranty

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
