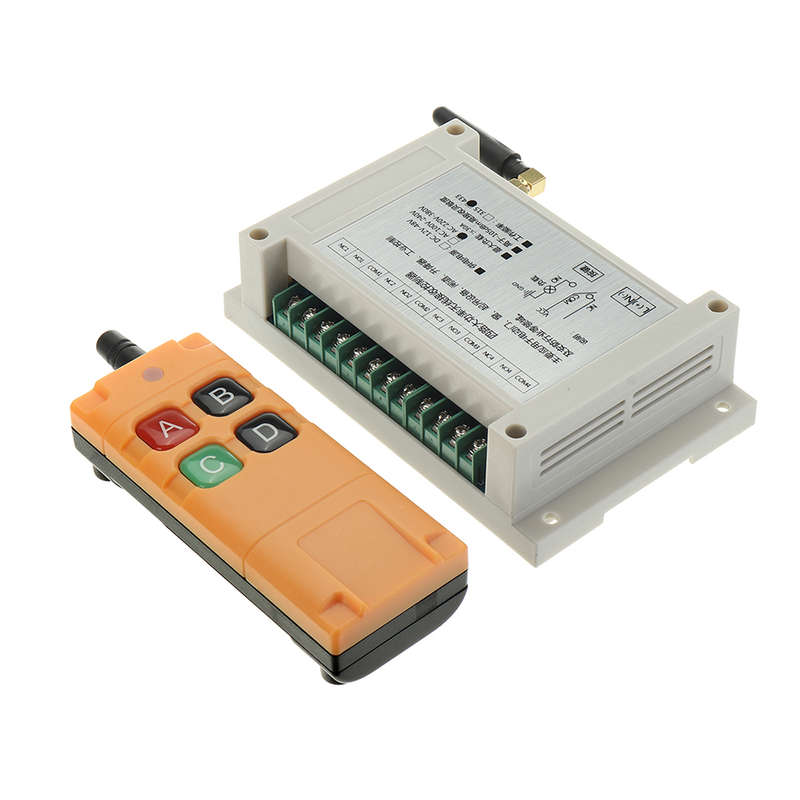

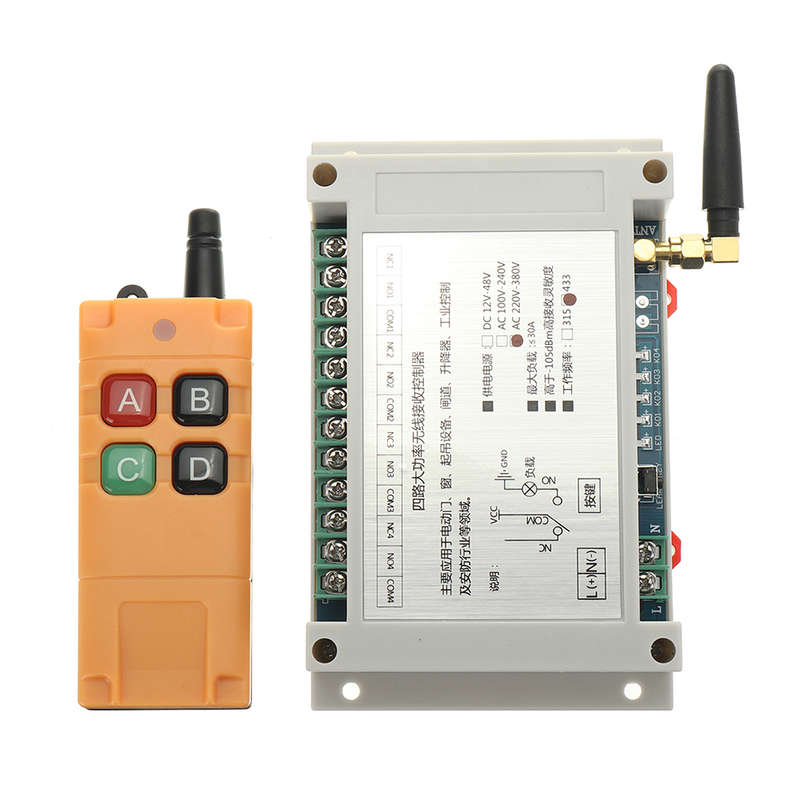

12V 220V Universal 4 Channels Remote Control Switch with ... (FREQUENCY: 433MHZ | VOLTAGE: DC12-48V)

12V 220V Universal 4 Channels Remote Control Switch with ... (FREQUENCY: 433MHZ | VOLTAGE: DC12-48V)

20 available / new

R1,197.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3463

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641101094

SELECTED OPTION:
FREQUENCY: 433MHZ
VOLTAGE: DC12-48V

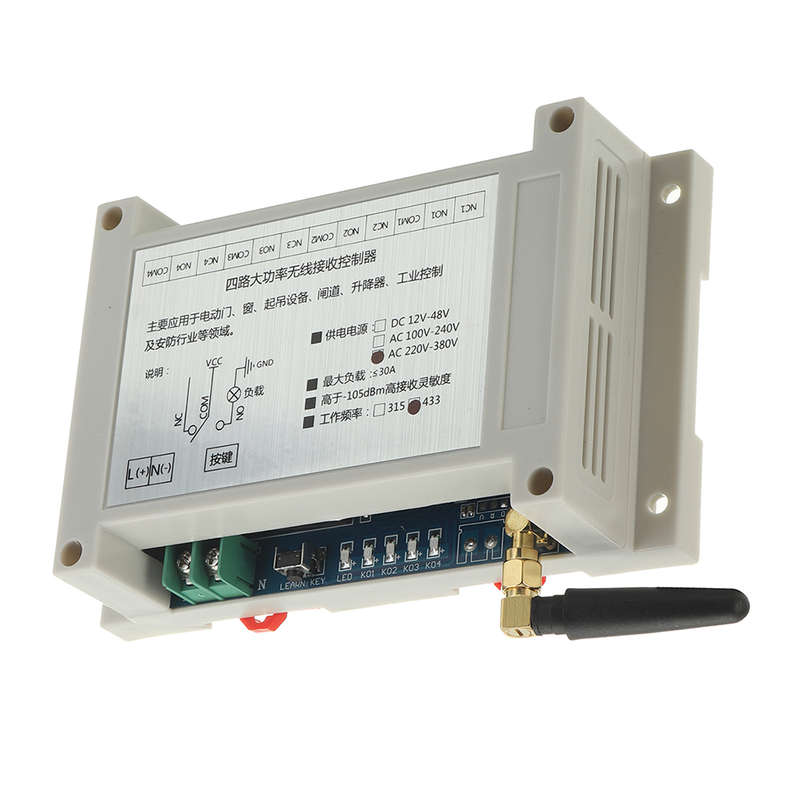

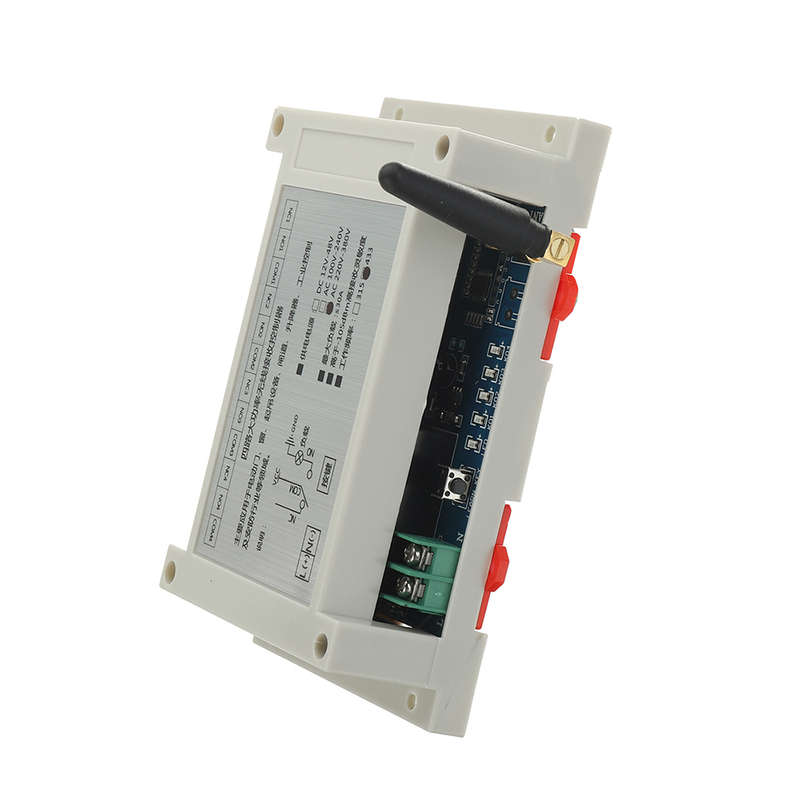

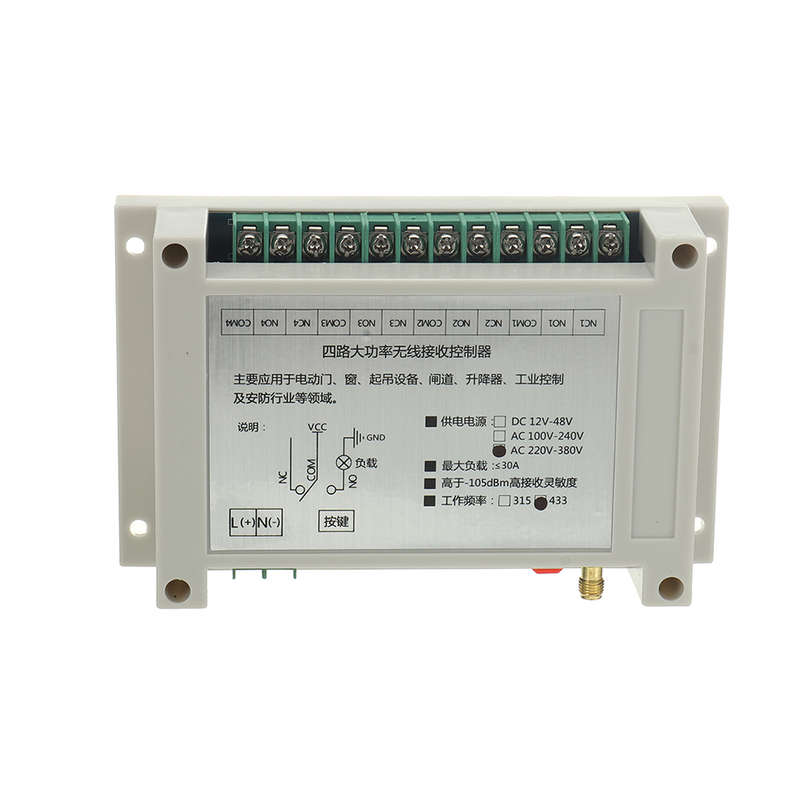

Overview:
The remote control switch adopts a 30A relay, which can load high-power electrical appliances. The receiving mode is learning-type single-chip decoding. It can learn multiple remote controls. Each remote control can be learned by pressing the keys. Each remote control controls multiple switches. Multiple remote controls can control one switch, simple operation and flexible combination. Each key of the remote control has different learning and working methods, which avoids the troublesomeness of switching the output mode through jumper caps. It is easy to use and suitable for multiple applications in multiple fields. Output switch signal, installation is simple and convenient.
Application scope:
Mainly used in lamps, electric doors, windows, lifting equipment. Water pump, elevator control, security industry and agricultural irrigation and other fields such as long-distance wireless remote control have the advantages of convenient installation, simple and reliable use.
Technical Parameters:

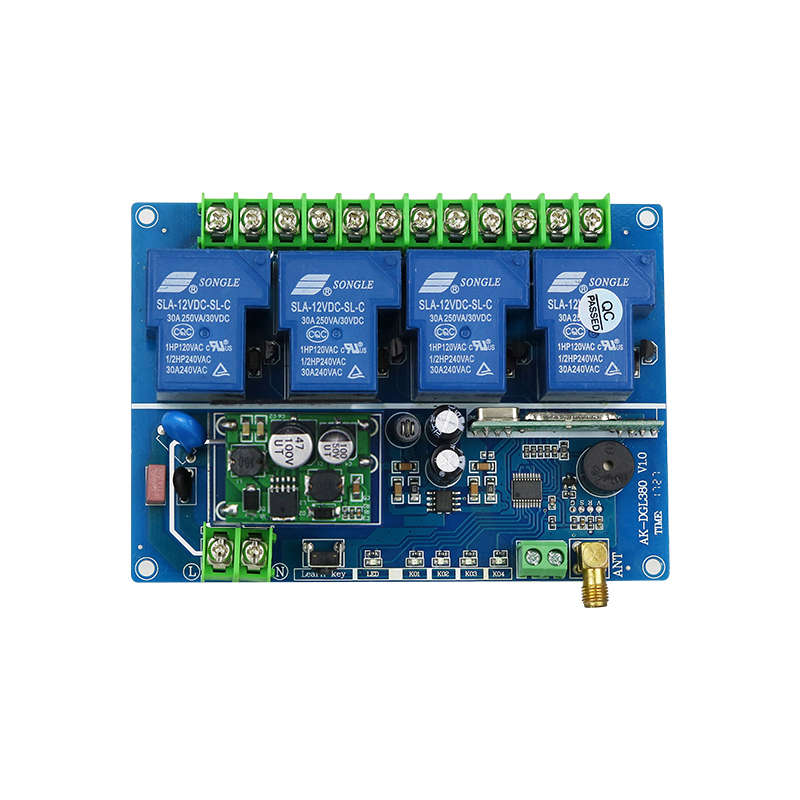

1. Working voltage: AC220V-380V 2. Working frequency: 315/433MHZ (optional) 3. Working temperature: -40a~+85a 4. Receiving sensitivity: a -105dBm 5. Larger load: NO (30A/240VAC), NC (20A/240VAC) 6. Size: circuit board: 122 x 87 x 17 (mm) with shell: 144.8 x 91 x 40 (mm)

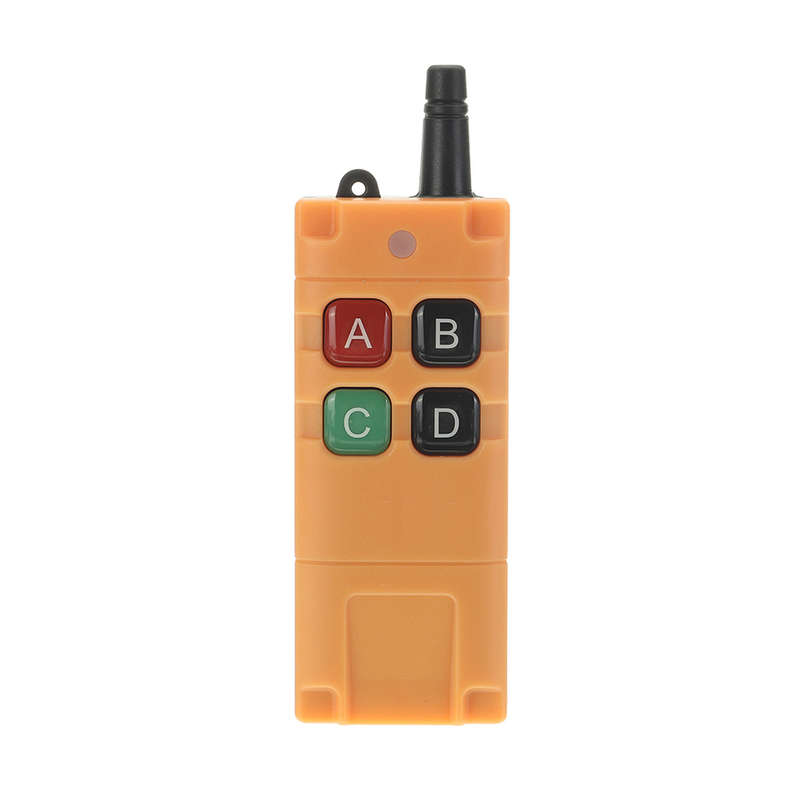

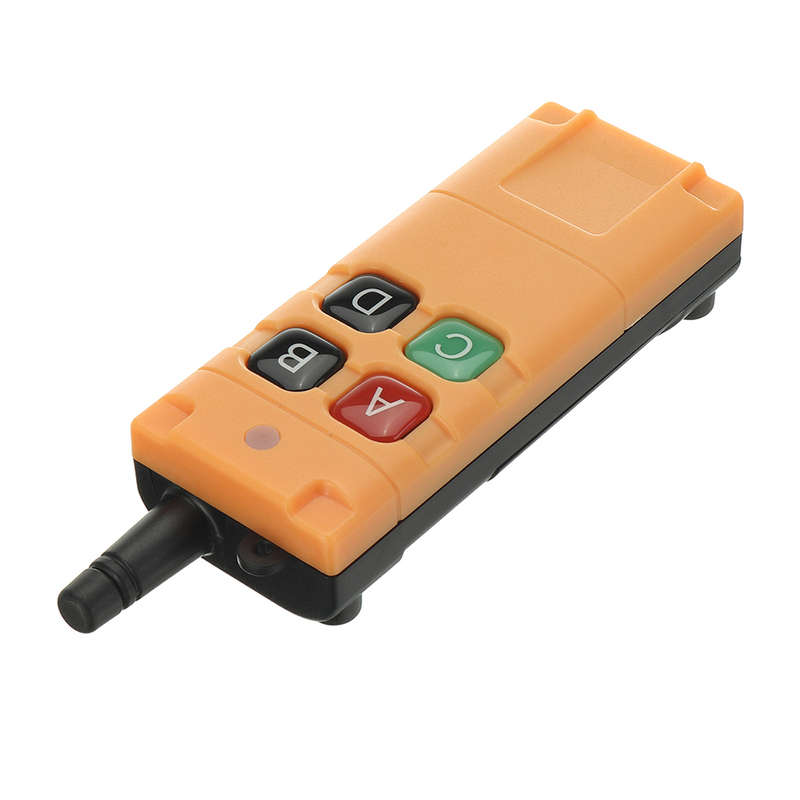

4-button wireless remote control:
Working voltage: DC9V Working current: a35mA Quiescent current: 0mA Working frequency: 315MHz/433MHz (optional) Chip type: fixed code (2262); learning code (1527), etc. Oscillation resistance: according to customer requirements Launch distance: 200M (open environment) Modulation method: ASK amplitude modulation
output method:
Press the A (data bit 1000) key to learn, and the controller jogs; Press the B (data bit 0100) key to learn, the controller is interlocked; Press C (data bit 0010) to learn, and the controller will lock itself; Press D (data bit 0001) key to learn, the controller (1, 2) jog + (3, 4) self-lock;
Remote control A (data bit 1000) controls relay 1; Remote control B (data bit 0100) controls relay 2; Remote control C (data bit 0010) controls relay 3; Remote control D (data bit 0001) controls relay 4;
Learning methods and steps:
1. Press the learning button of the receiver-the light is on, indicating that it has entered the learning state 2. Press any key on the remote control-the light flashes three times slowly, indicating that the learning has been successful.
Clear saved information:
Long press the receiver learning button until the LED light flashes five times quickly and then goes out, indicating that the stored information has been successfully cleared.
Package included:
1 x Switch 1 x 4-button Remote Controller
