Description:

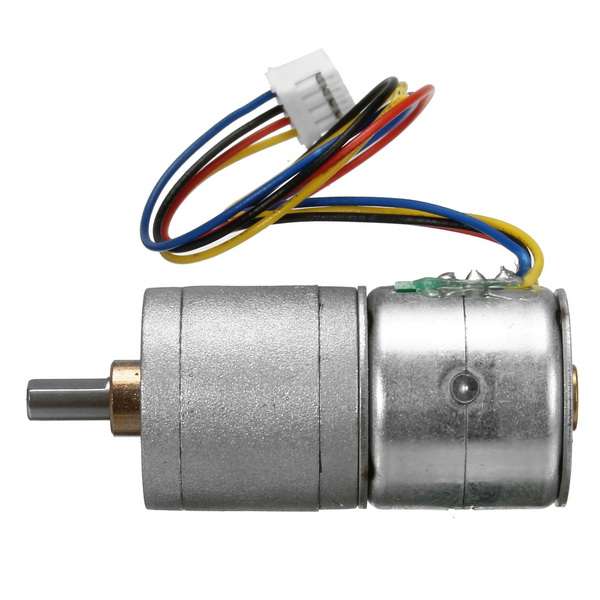

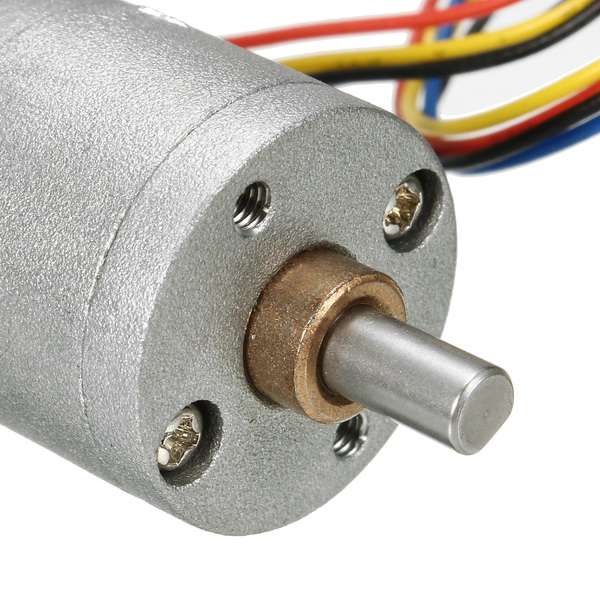

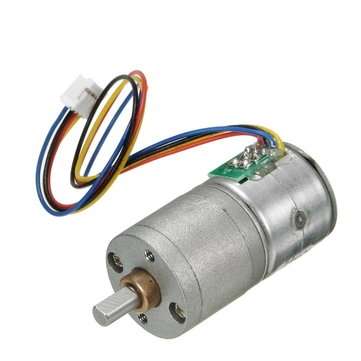

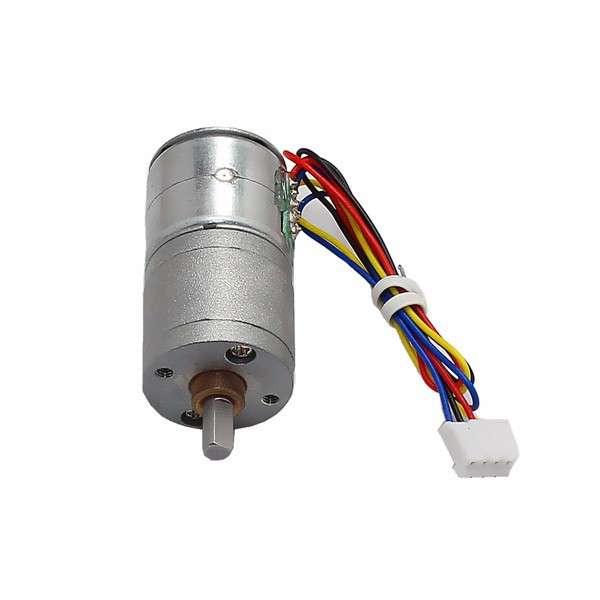

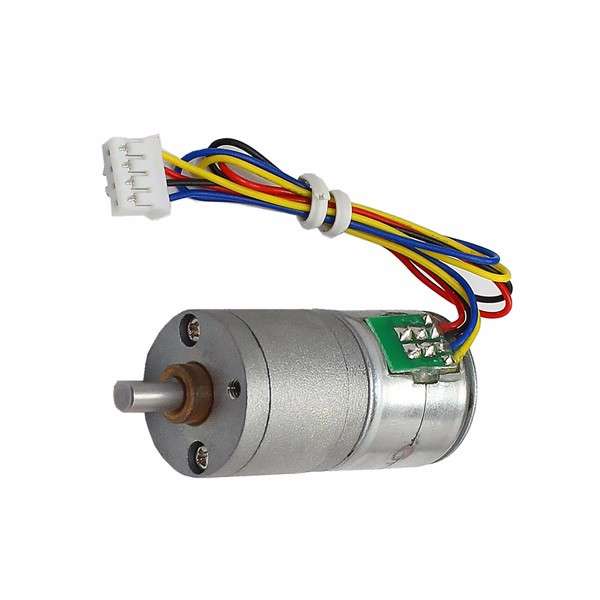

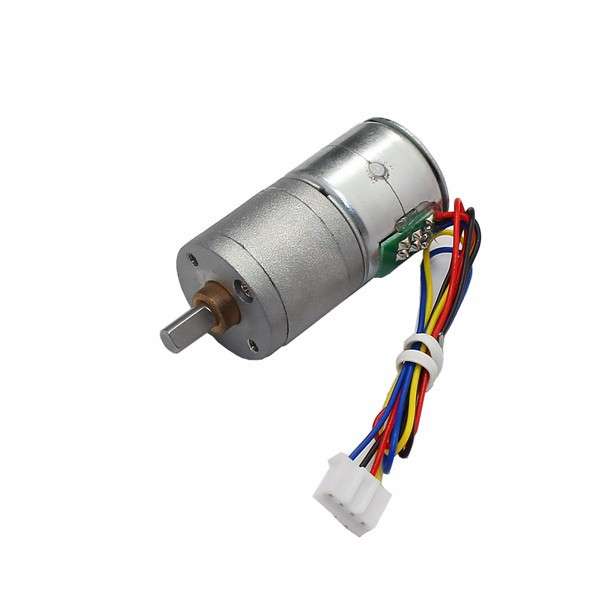

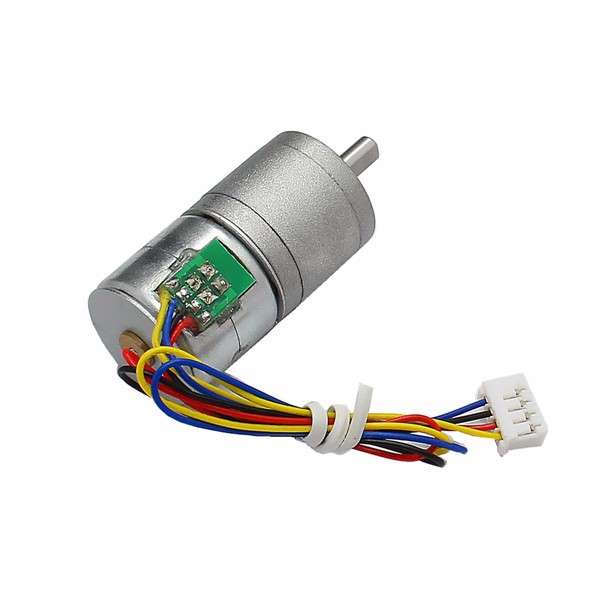

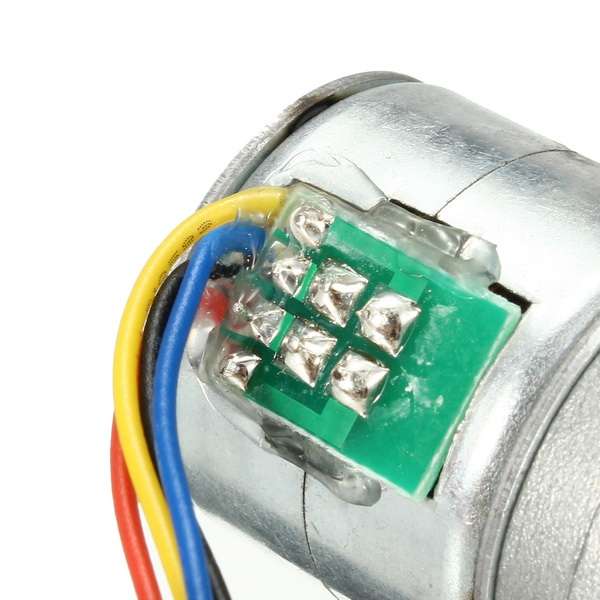

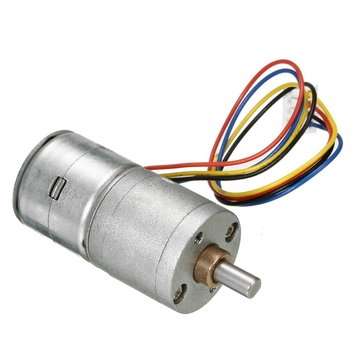

12V 23rpm Brushless Motor Reduction Gear Motor Step Motor

Specification:
Model GM20BY-1220-125-10.5D
Voltage 12V
Speed 23rpm
Current 600mA/phase
Coil resistance 20±10% ohm/phase (20a)
Number of phase 2 phase
Step angle 0.14ᆪ(18/125ᆪ)
Excitation method 2 phase excitation

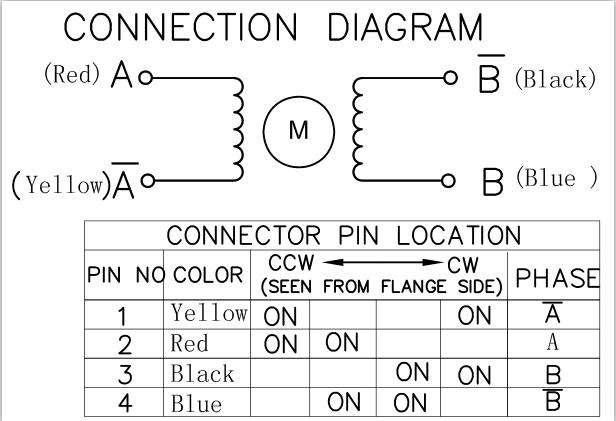

Driving mode Bipolar two phase four wire
Pull out torque More than 4.0kgf-cm AT500 PPS
Max response frequency More than 1200 PPS
Max staring frequency More than 900 PPS
Insulation class Class E for coil
Insulation strength 100V AC for 1 second
Insulation resistance 100M DC 500V
Operating temperature range -15 to +55a (The dew must not fall)
Reduction ratio 1:125
Quanttiy 1pcs

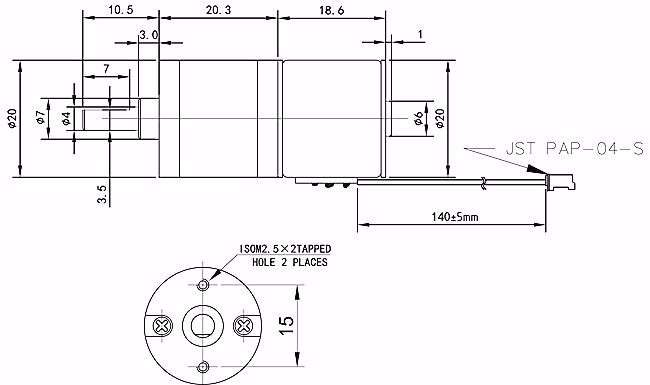

Mechanical dimension:








Package Included:
1 x Step Motor
