12V 24V 20A Max PWM DC Motor Stepless Adjustable Speed Controller 25kHz
Sold

12V 24V 20A Max PWM DC Motor Stepless Adjustable Speed Controller 25kHz

New 30 were available
Indicative market price: R299.00
R199.99
33% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
1089456
Bob Shop ID
303406850
Package weight: 0.13 kg
Description :

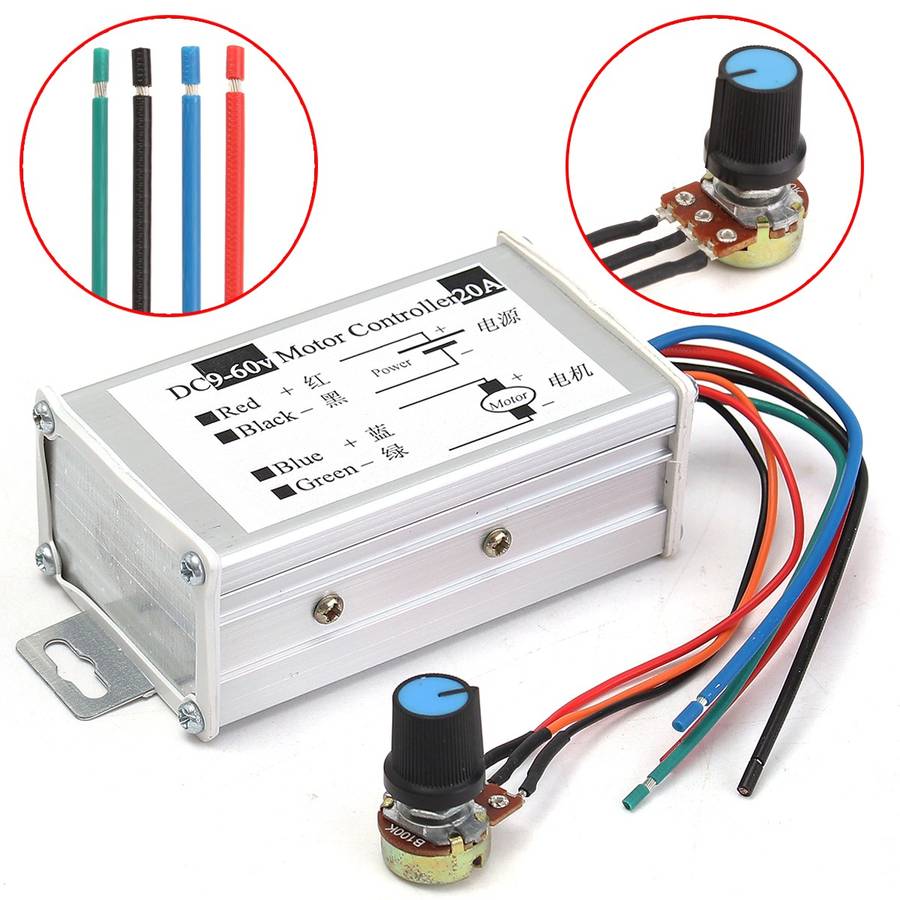

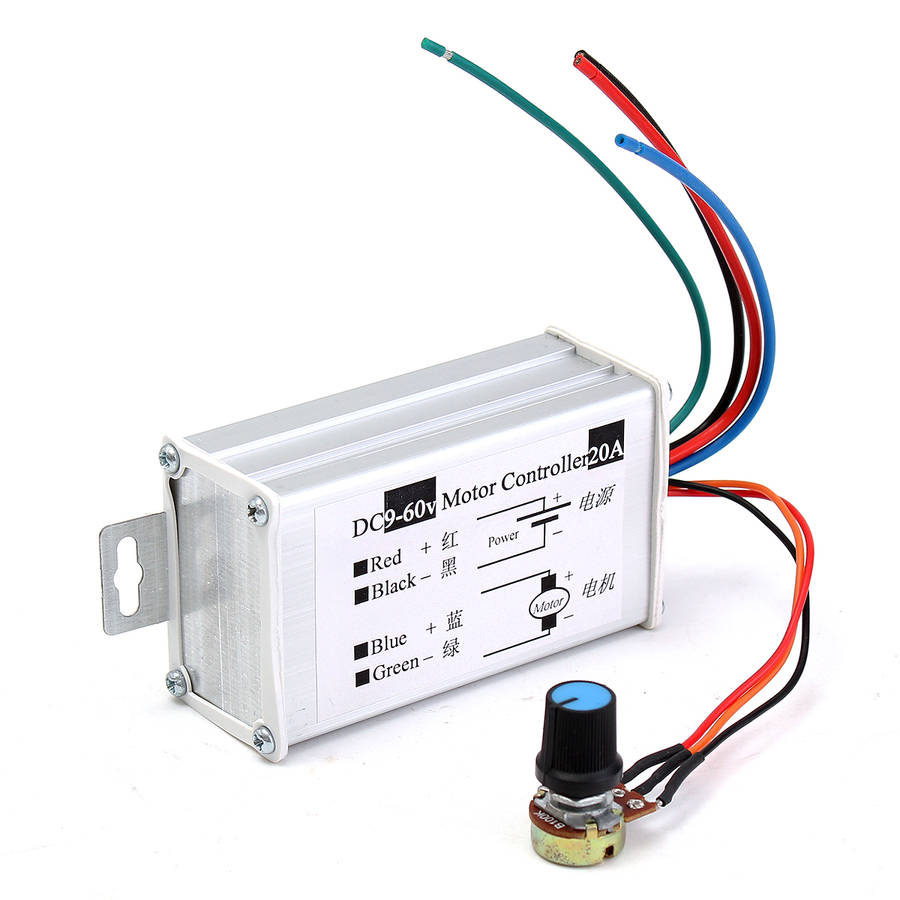

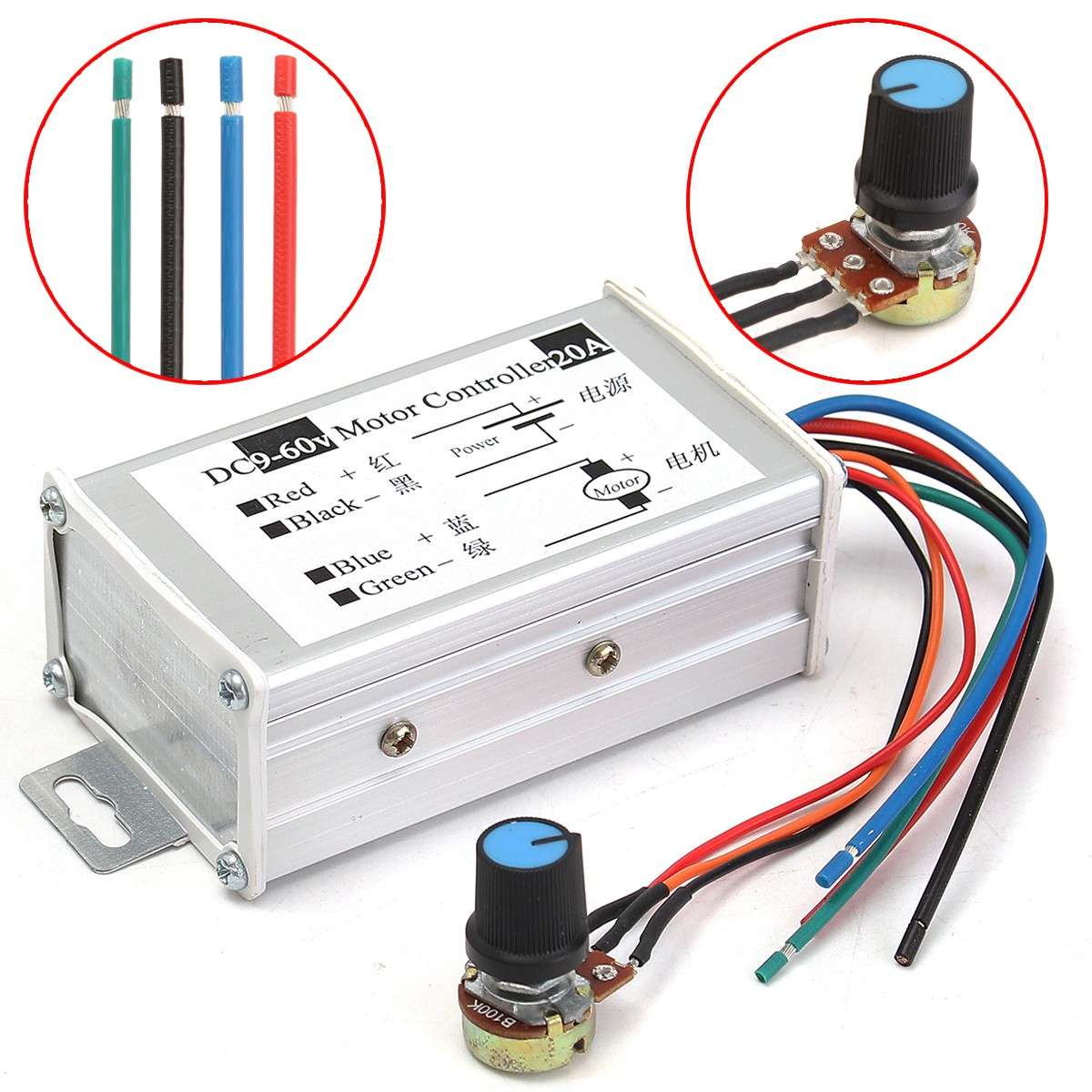

12V 24V 20A Max PWM DC Motor Stepless Adjustable Speed Controller 25kHz

Features :

Suitable for the DC motor (or DC load) within 20A.
It with metal shell and connective label, very easy to install and use.
Potentiometer with adjust speed swtich function, and button swtich function.

Specification :

Input supply voltage: DC 9V to 60V
Max current: 20A
Sustained current: 18A
PWM frequency: 25KHz
Adjustable speed range: 0%-100%

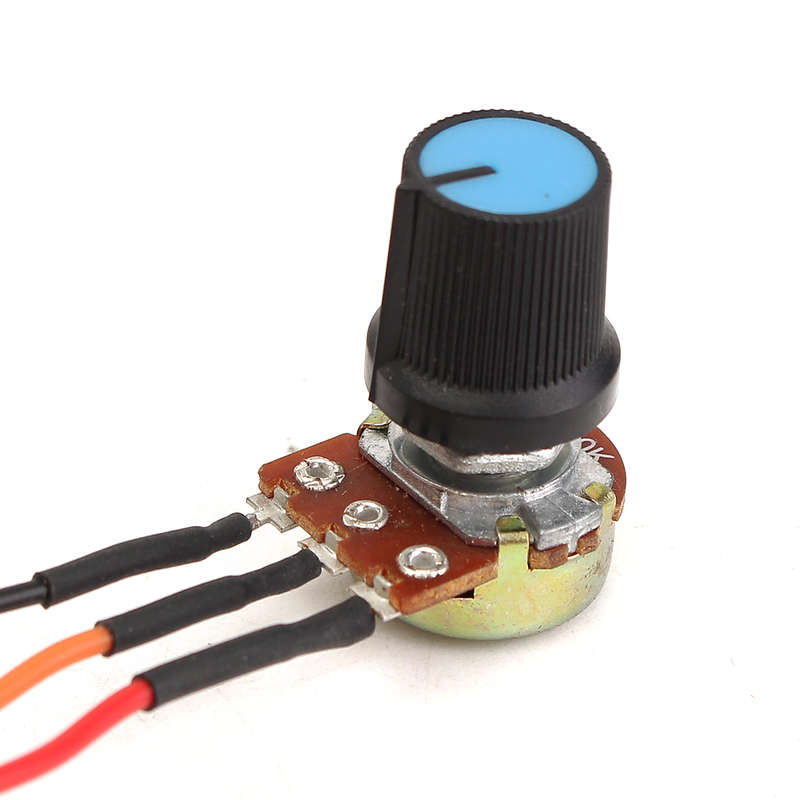

Speed adjustment way: Potentiometer
Output voltage: Linear under load
Speed control type: Basins

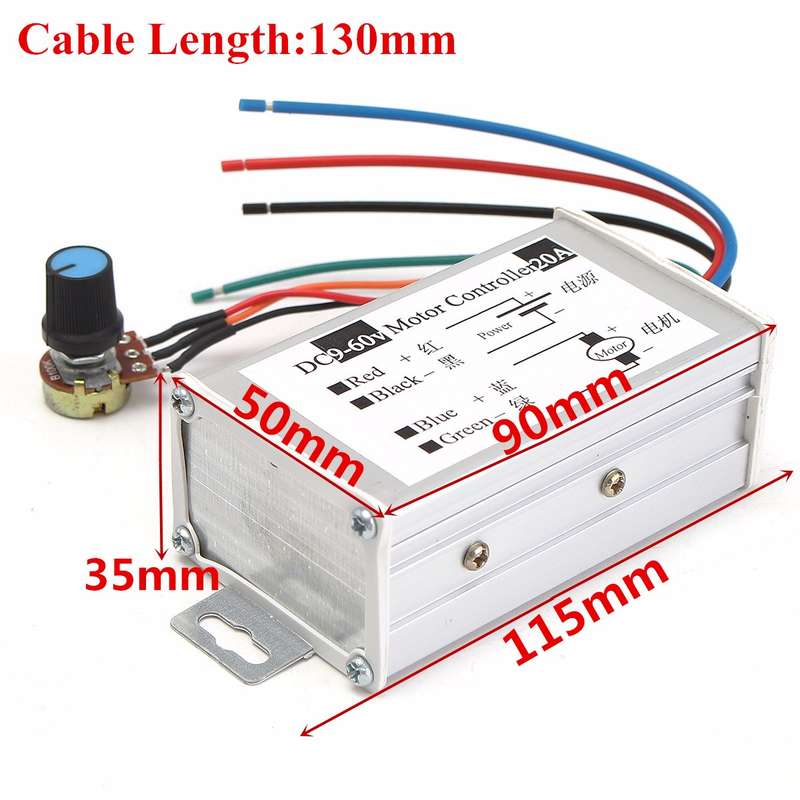

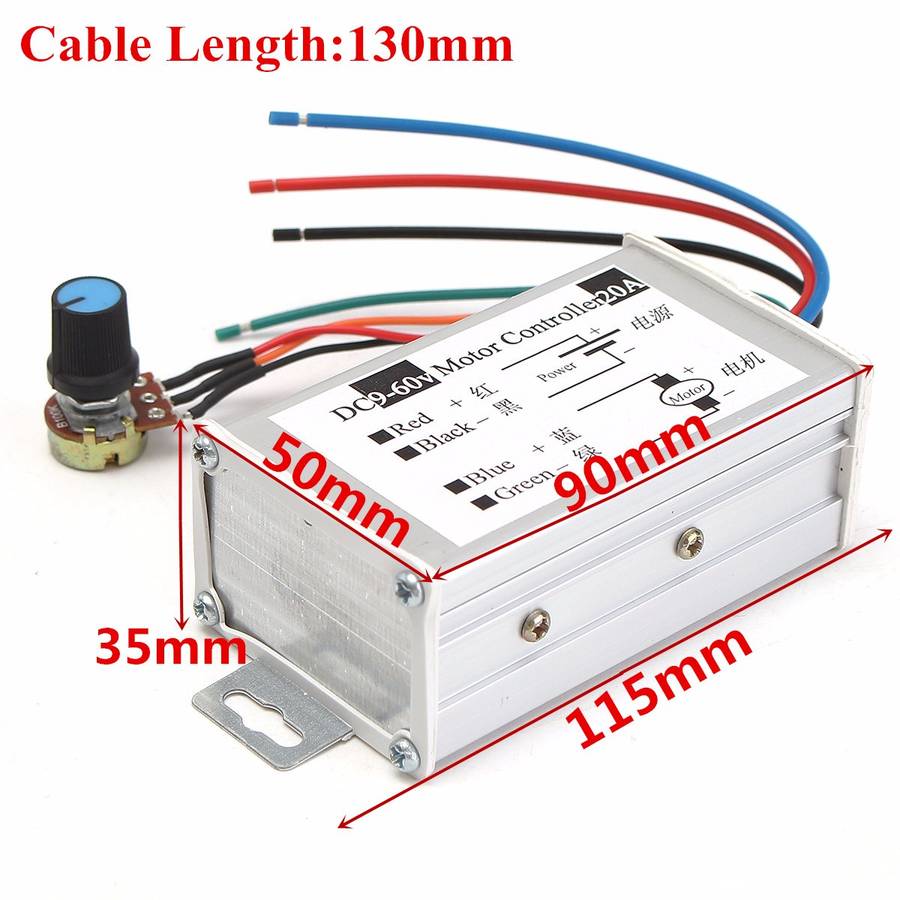

Size(LxWxH): 90 x 50 x 35 mm
Cable Length: 130 mm
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING:
DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
1.Connect wires refer to the "wiring diagram"
2.Turn on the power.
3.Adjust the potentiometer.
Connection mode:

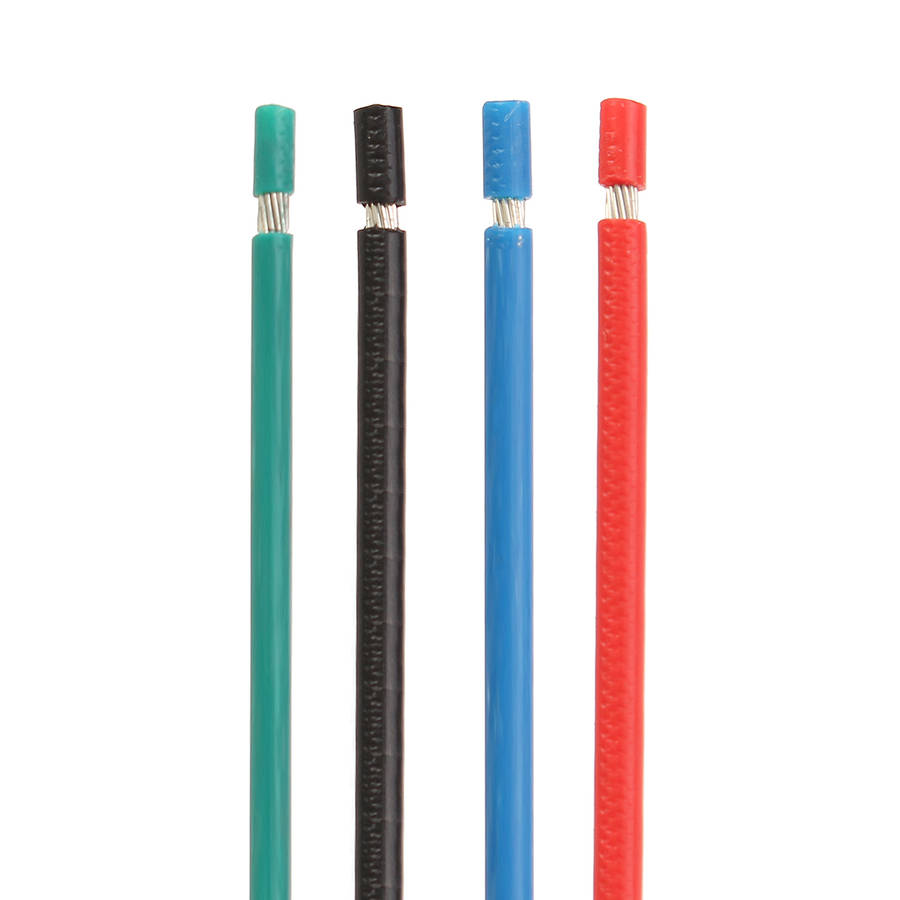

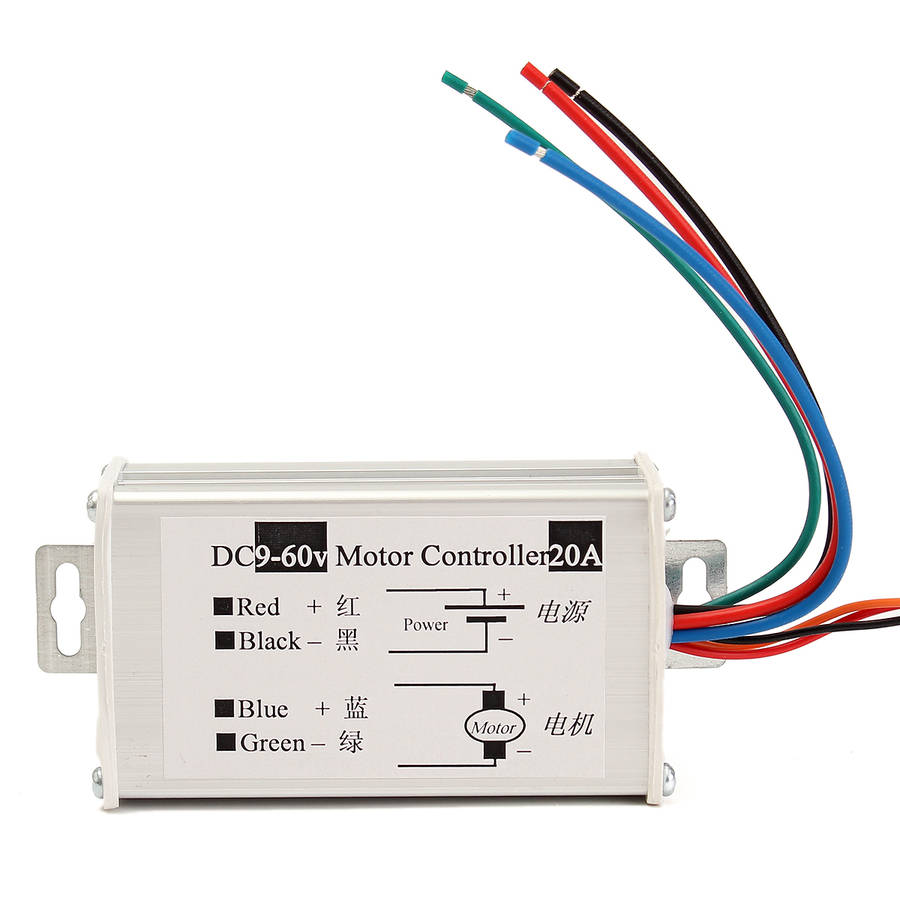

Red Line: Power +       Black Line: Power -
Blue Line: Motor+        Green Line: Motor -

Package includeds :

1 x DC Motor Speed Controller with metal shell

Details pictures :
